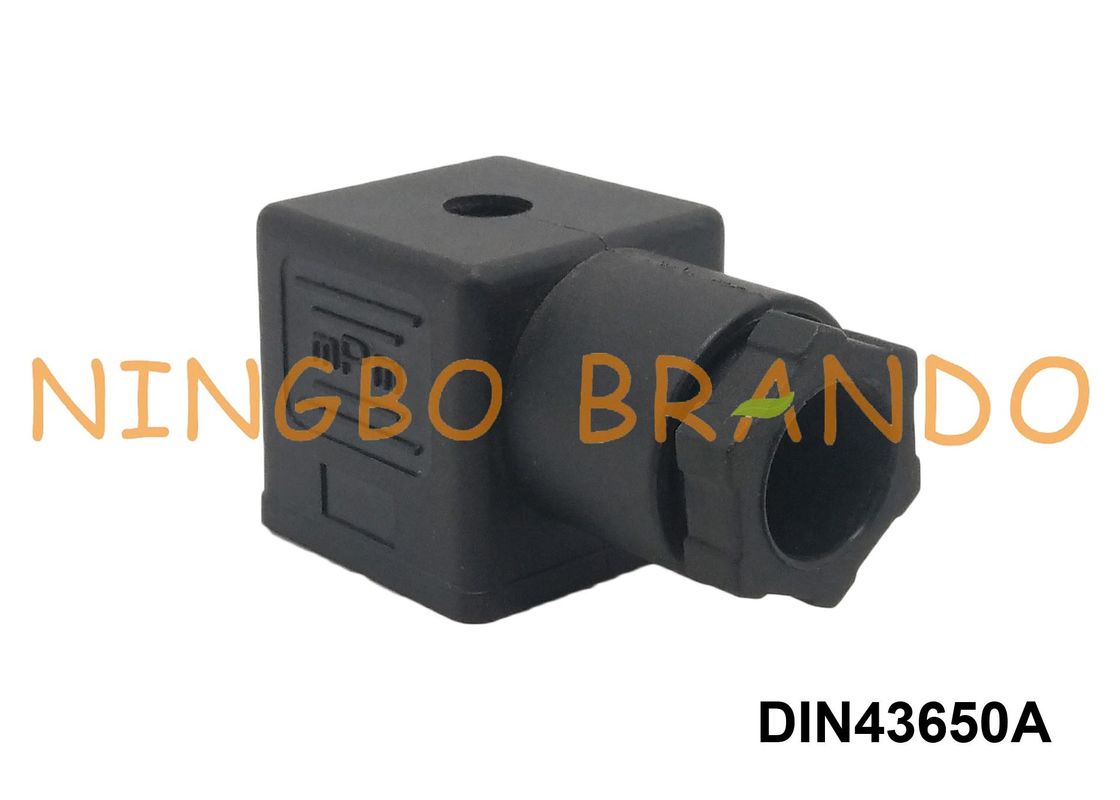

Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector

Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector

Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector
video
Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE
Model Number: DIN 43650A
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: decades ad box,then put into carton
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 6000pcs per two days
Contact Now
Detailed Product Description
Part Name: Solenoid Coil Connector DIN Type: DIN 43650 Form A
Gender: Female PIN Number: 3 PIN
Distance: 18mm Form: 2+1GND, 3+1GND
Wokring Voltage: AC380V, DC300V Protection Class: IP65
Nomical Current: 10A Contact Resistance: ≤5mΩ
Max Conductor Section: 3x1.5mm² Fixing Screw: M3x28
High Light:

DIN 43650 Form A Connector

,

DIN 43650A Connector

,

DIN 43650 Solenoid Connector

Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector



Brando handles a wide range of DIN 43650 Solenoid Valve Connectors. Various options in modifying the connectors include indicator lights, surge suppression, and molded cable. Brando stocks field attachable and molded solenoid valve connectors for immediate delivery, while also handling custom connector assemblies.



Here are all three forms of DIN 43650 solenoid valve connectors. Aspects such as housing shape, pin type, pin spacing, and cable entry all vary depending on whether the connector is Form A, Form B, or Form C.



Dimension & Data of Solenoid Coil Connector:



DIN 43650A Connector:

Dimension
DIN Type
DIN 43650 Form A
Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 0
Distance
18mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working
Voltage
AC380V, DC300V
Fixing Screw
M3x28
Nomical Current
10A
Contact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650B Connector:

Dimension
DIN Type
DIN 43650 Form B
Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 1
Distance
11mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working Voltage
AC380V, DC300V
Fixing Srew
M3x30
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650C Connector:

Dimension
DIN Type
DIN 43650 Form C
Black MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 2
Distance
9.4mm
Form
2+1GND, 3+1GND
Protection Class
IP65
Working Voltage
AC380V, DC300V
Fixing Screw
M3x25
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



FAQ:



What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.



What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures - IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)
