Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | BAPC214339075 |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiation |
Packaging Details: | Individual Boxes, Carton, Pallet |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100000 pcs per month |
Product Name: | Water Solenoid Valve Stem, Water Solenoid Valve Plunger, Water Solenoid Valve Armature | Function: | 2/2 Way, Normally Closed |
---|---|---|---|
Tube OD: | 16mm | Kind Of Current: | AC, DC |
Armature Tube Material: | Stainless Steel 304 | Seal Insert Material: | NBR |
Connection Type: | M32 Thread | Application Example: | Water Solenoid Valve |
High Light: | Water Solenoid Valve Stem,Water Solenoid Valve Plunger,Water Solenoid Valve Repair Kit |

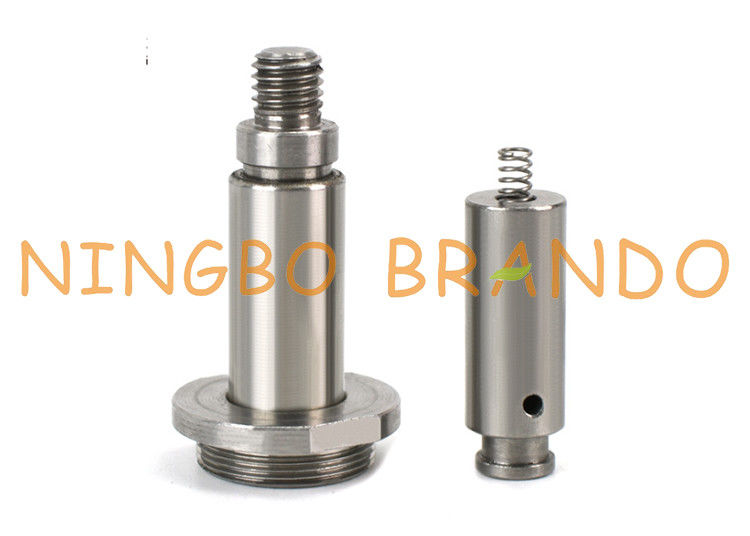

2/2 Way Normally Closed Water Solenoid Valve Stem Plunger Repair Kit
A solenoid valve is made up of two basic functional units.They are
(1) The solenoid, an electro-magnet with a plunger.
(2) A valve containing an orifice in which a disc or plug is positioned to stop or allow flow.
The solenoid valve is opened or closed by movement of the magnetic plunger,or core, which is drawn into the solenoid when the coil is energised (an electric current is passed through it). The solenoid valve opens when energized allowing instrument air to pass through, the valve closes when the solenoid is de-energized preventing instrument air from passing through but vented to the atmosphere.
Solenoid valves have a solenoid mounted directly on the valve body with the solenoid core attached to the valve stem.The core is enclosed and free to move in a permanently sealed tube inside the solenoid coil.This construction provides a compact, leak tight assembly.
Detailed Images of solenoid valve stem:
Dimension & Data of solenoid valve stem:
Brando Solenoid Valve Stem Production Video:
Solenoid Valve Stem Categories:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 30mm.
*According to tube material: Brass, Stainless Steel
*According to valve application: Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration, dust collector and other automation control industries.
Features of Armature Assembly:
The main characteristics of the armature of solenoid valve can be reflected in the following aspects.
1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive
2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.
3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance
4. Sealing materials can be selected according to your different requirements
5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
