2 Way Normally Closed Water Solenoid Valve Stem Armature Plunger

2 Way Normally Closed Water Solenoid Valve Stem Armature Plunger

The solenoid consists of a coil of wire wound in the form of a cylinder around the bobbin. When an electrical current is introduced, it resembles a bar magnet. When energized by an electrical signal, a magnetic field builds up which attracts the movable plunger to the polepiece against the tension of the main plunger spring. When de-energized, the magnetic field dissipates and the plunger returns to its original position, under the action of the main plunger spring.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

In order to be usable on AC current as well as DC, the polepiece contains a shading ring to average the alternating sine wave and minimize AC hum. (Note - It is not necessary to use a shading ring for DC applications as DC current does not produce an alternating wave function.) The flowing media is normally permitted to enter the area between the plunger and plunger guide tube, and caution should be used to assure that these components are compatible with the media when selecting a valve.

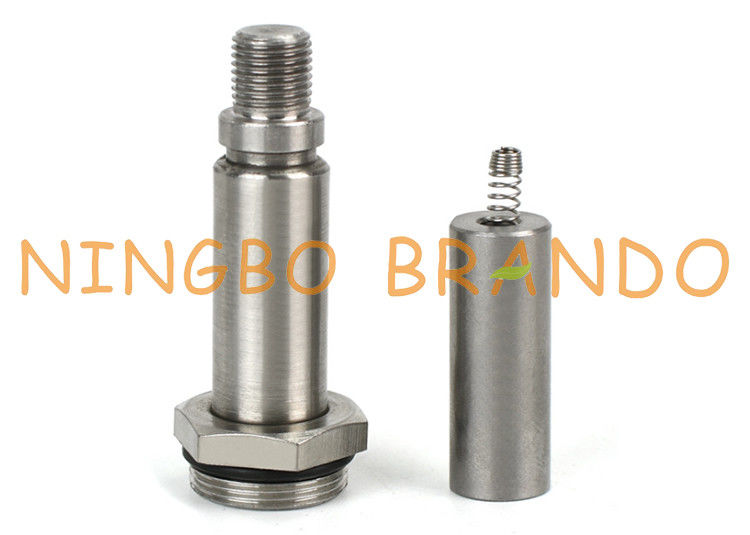

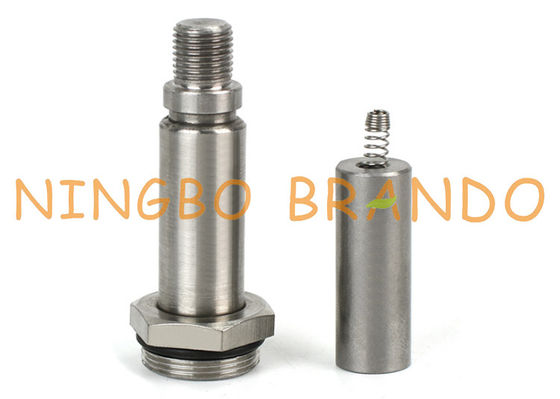

Detailed Images of solenoid valve stem:

Dimension & Data of solenoid valve stem:

Dimension	Model	BAPC214339075
	Function	2/2 Way, Normally Closed
	Seat Connection	M18x1 Thread
	Core Tube Material	Stainless Steel 304
	Seal Material	NBR
	Voltage	All range of AC and DC available
	Customize Service	Provided, Pls show us sample or drawing

Brando Solenoid Valve Stem Production Video:

Solenoid Valve Stem Categories:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 30mm.

*According to tube material: Brass, Stainless Steel

*According to valve application: Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration, dust collector and other automation control industries.

Features of Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
