M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube

M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube

  • M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube
M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC214039849
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Stem, Solenoid Valve Plunger, Solenoid Valve Armature Function: 2 Way, Normally Closed
Tube OD: 14mm Kind Of Current: AC, DC
Armature Tube Material: Stainless Steel 304 Seal Insert Material: NBR
Connection Type: M24x1 Thread
High Light:

Solenoid Valve Stem

,

Solenoid Valve Stem Plunger

,

M24 Solenoid Stem

M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube



Solenoid technology is an electro-mechanical device that controls the flow of a media through a pipe by opening or closing the valve orifices. The solenoid assembly consists of a coil, plunger, and sleeve assembly. In a normally closed valve, a plunger return spring holds the plunger against the orifice, preventing flow through the valve. When the coil is energized, a magnetic field is produced, raising the plunger and allowing flow through the valve.



The armature tube is the stainless steel or brass tubular element used as a guide for the movable core which is actuated by the magnetic force generated by the coil.



The armature assembly can usually be categorized according to the number of interface positions, switching functions and connection.

1. Port / positions: 2/2 way or 3/2 way (The first figure shows the number of ports, the second shows the number of positions)

2. Function: Normally closed (NC), or normally open (NO)

3. Connection: Thread or flange

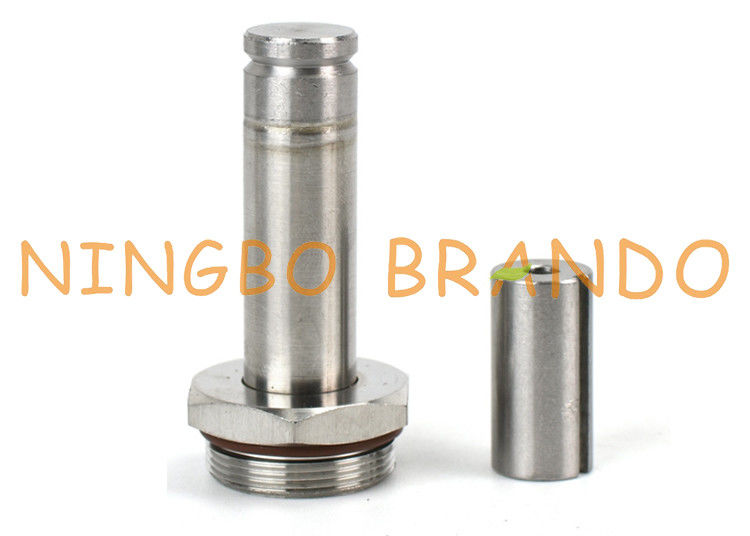

Detailed Images of solenoid valve stem:

M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube 0



Dimension & Data of solenoid valve stem:

Dimension
Model
BAPC214039849
M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube 1
Function
2/2 Way, Normally Closed
Seat Connection
M24x1 Thread
Core Tube Material
Stainless Steel 304
Seal Material
NBR
Voltage
All range of AC and DC available
Customize Service
Provided,
Pls show us sample or drawing


Brando Solenoid Valve Stem Production Video:

M24 2 Way Normally Closed Solenoid Valve Stem Plunger Tube 2



Solenoid Valve Stem Categories:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 30mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application: Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration, dust collector and other automation control industries.

photobank (14)photobank (16)photobank (17)photobank (10)

Features of Armature Assembly:



The main characteristics of the armature of solenoid valve can be reflected in the following aspects.



1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
