2 Way NC Refrigeration Solenoid Valve Stem Armature Plunger

2 Way NC Refrigeration Solenoid Valve Stem Armature Plunger

The magnetic (solenoid) valve includes an electromagnet which comprises a coil arrangement and an armature driven by the coil arrangement. A control part is provided on the armature, which corresponds to at least one channel aperture to be controlled in a fluid channel, and which is shifted at the control movement of the armature relative to the at least one channel aperture. The armature is formed as a pivot anchor, whose switching movement is a pivotal movement , at which the control part is shifted orthogonally to the longitudinal axis of the coil arrangement.

When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core.

When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

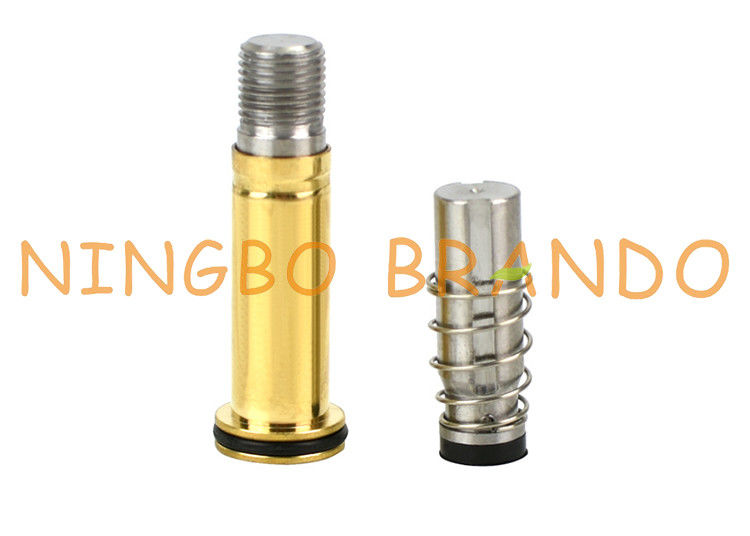

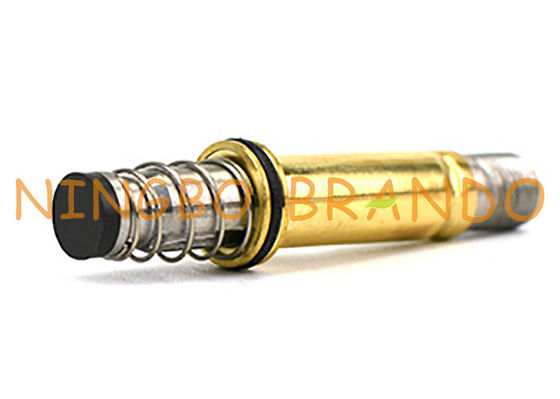

Detailed Images of solenoid valve stem:

Dimension & Data of solenoid valve stem:

Dimension	Model	BAPC209029003
	Function	2 Way, Normally Closed
	Seat Connection	Flange, O-ring Groove
	Core Tube Material	Brass
	Seal Material	NBR, other can be customized
	Voltage	All range of AC and DC available
	Application Example	Refrigeration Solenoid Valve
	Customize Service	Provided, Pls show us sample or drawing

Brando Solenoid Valve Stem Production Video:

Solenoid Valve Stem Categories:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 30mm.

*According to tube material: Brass, Stainless Steel

*According to valve application: Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration, dust collector and other automation control industries.

Features of Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
