| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BAPC213050375 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual Boxes, Carton, Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Product Name: | BFEC Pulse Valve Armature, BFEC Pulse Valve Plunger, BFEC Pulse Valve Stem | Function: | 2 Way, Normally Closed |
|---|---|---|---|
| Kind Of Current: | AC, DC | Armature Tube Material: | Stainless Steel |
| Seal Insert Material: | NBR (Nitrile) | Connection Type: | Flange |
| Fitted Pulse Valve: | New Version BFEC Pulse Valve | ||
| High Light: | BFEC Pulse Valve Armature Plunger,SBFEC Pulse Vlave Plunger,BFEC Pulse Vlave Armature |
||

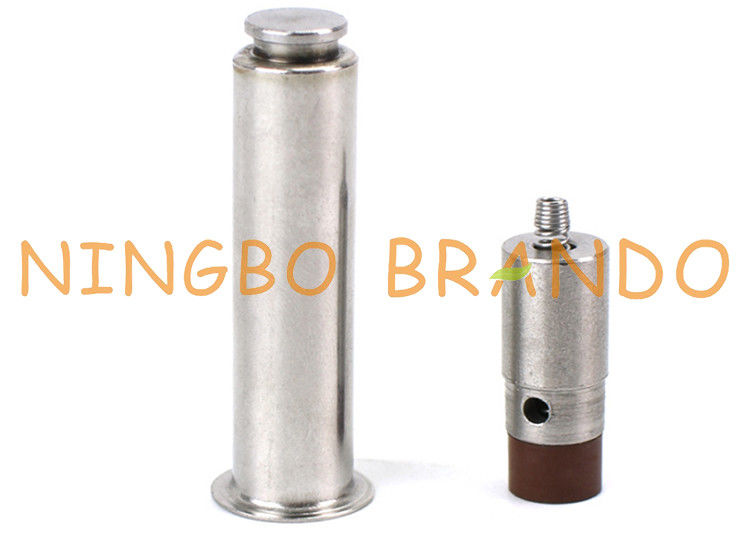

1.5'' DMF-ZM-40S BFEC Pulse Valve Repair Kit Armature Plunger
This armature plunger is used for new version BFEC pulse valve repair kit. The related bfec pulse jet valves, solenoid coils and diaphragms are also supply. Welcome to your any inquiry and problem.
A solenoid valve is made up of two basic functional units.They are
(1) The solenoid, an electro-magnet with a plunger.
(2)A valve containing an orifice in which a disc or plug is positioned to stop or allow flow.
The valve is opened or closed by movement of the magnetic plunger,or core, which is drawn into the solenoid when the coil is energised (an electric current is passed through it). The solenoid valve opens when energized allowing instrument air to pass through, the valve closes when the solenoid is de-energized preventing instrument air from passing through but vented to the atmosphere.
Solenoid valves have a solenoid mounted directly on the valve body with the solenoid core attached to the valve stem.The core is enclosed and free to move in a permanently sealed tube inside the solenoid coil.This construction provides a compact, leak tight assembly.
BFEC Pulse Valve Armature:
Brando Solenoid Valve Armature Production Video:
Related product supply:
* Solenoid Valve Coil:
* Diaphragm Repair Kit:
* Pulse Jet Valve:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
