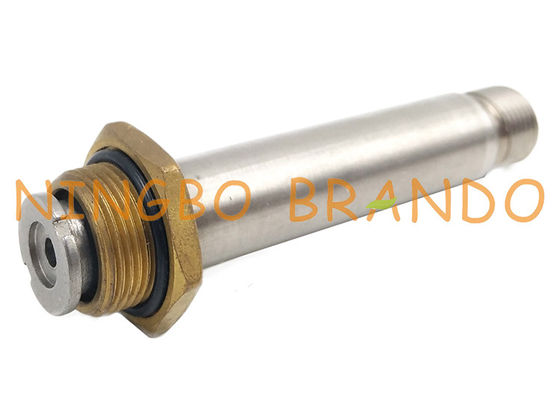

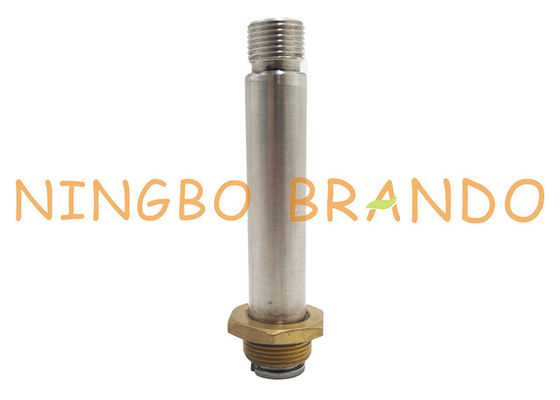

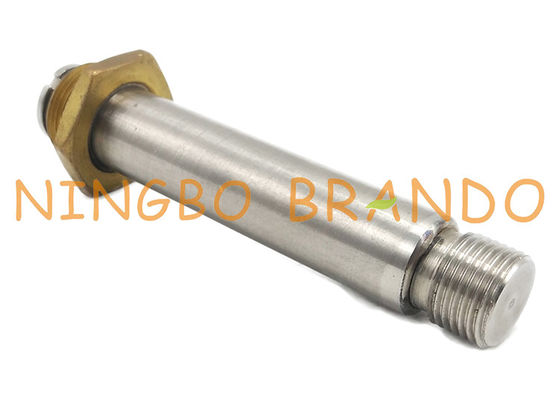

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly
video
M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPO213053915
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Position And Way: 2 Way 2 Position Non-working Status: Normally Open
Voltage: AC, DC All Available Plunger Tube OD: φ13.0mm
Seat Type: M16 Thread Plunger Tube Material: Stainless Steel 304
High Light:

2/2 Way NO Solenoid Valve Armature Assembly

,

M16 Thread Solenoid Valve Armature

,

Stainless Steel Core Tube

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly



Solenoid technology is an electro-mechanical device that controls the flow of a media through a pipe by opening or closing the valve orifices. The solenoid assembly consists of a coil, plunger, and sleeve assembly. In a normally closed valve, a plunger return spring holds the plunger against the orifice, preventing flow through the valve. When the coil is energized, a magnetic field is produced, raising the plunger and allowing flow through the valve.



The armature tube is the stainless steel or brass tubular element used as a guide for the movable core which is actuated by the magnetic force generated by the coil.



The armature assemblies are constructed of metallic components designed to provide protection against incompatibilities of various fluid medias. However it is necessary to use caution when specifying a solenoid valve for an unfamiliar fluid. Use caution when selecting a material suited specifically for the media.



Main dimension of Solenoid Valve Armature Assembly:

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly 0

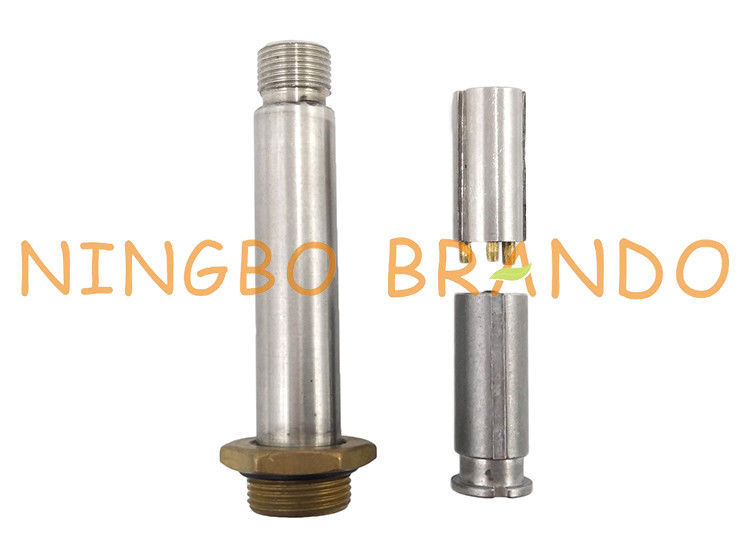

Details of Solenoid Valve Armature Assembly:

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly 1

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly 2

Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPO213053915
Guide Tube Outer Diameter
13.0mm
Installation Height for Coil Assembling
51.1mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
M16 Thread
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Open
Customized Service
Provided, welcome show us sample or drawing


Brando Factory Production of Solenoid Valve Armature Assembly:

M16 Thread SS304 Tube 2/2 Way NO Solenoid Valve Armature Assembly 3



More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)

FAQ:



How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.



What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.



How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
