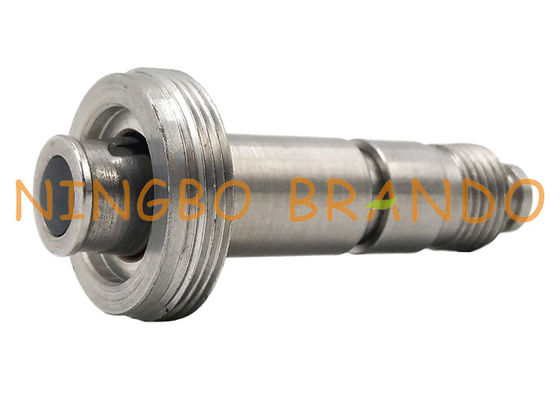

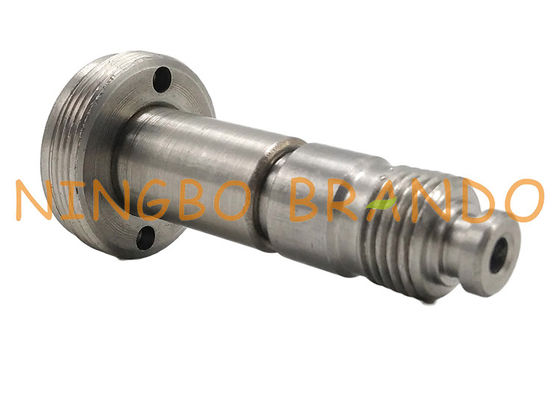

3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly

3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly

  • 3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly
  • 3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly
  • 3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly
  • 3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly
3/2 Way 13.0mm OD NC SS304 KSD Water Solenoid Valve Armature Tube Assembly
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC313031360
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Fittings Guide Tube Outer Diameter: 13.0mm
Installation Height For Coil Assembling: 30.9mm Plunger Seal For Orifice Diameter: 7.3mm
Guide Tube Material: Stainless Steel Seal Material: NBR
Mounting Type: Thread Voltage: AC, DC All Available
Position And Way: 3/2 Way Applicable: Solenoid Valve
High Light:

SS304 Water Solenoid Valve Armature

,

3/2 Way 13.0mm OD Solenoid Valve Armature

,

Water Solenoid Valve Kit Plunger

3/2 Way 13.0mm OD NC SS304 Water Solenoid Valve Armature Tube Assembly



High quality Solenoid Valve
Application: to control the flow of water electronically
Operation: when energized ( put electricity), the valve opens and allow water to pass through. When the electricity is turn off, the valve turns off.



Brando provides customized solenoid armature services for various types of solenoid valves.

Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.

Brando Solenoid plungers are available in numerous designs and have been tested to meet rigorous performance requirements for solenoid valves. These solenoid plungers can be utilized in various applications including, air and fluid power applications, heating and cooling system regulation units, industrial, and automotive applications.



Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:13.0mm
Installation Height for Coil Assembling:30.9mm
Plunger Seal for Orifice Diameter:7.3mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:3/2 Way
Non-working Status:Normally Close
Application:K S D Water Solenoid Valve



Dimension of BAPC313031360 Armature Assembly:



Dimension of BAPC313031360 Armature Assembly:





Technical Data:

Model Number
BAPC313031360
Guide Tube Outer Diameter
13.0mm
Installation Height for Coil Assembling
30.9mm
Plunger Seal for Orifice Diameter
7.3mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Thread
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing





Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
