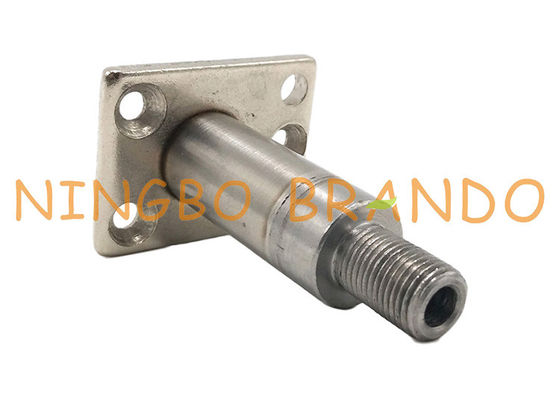

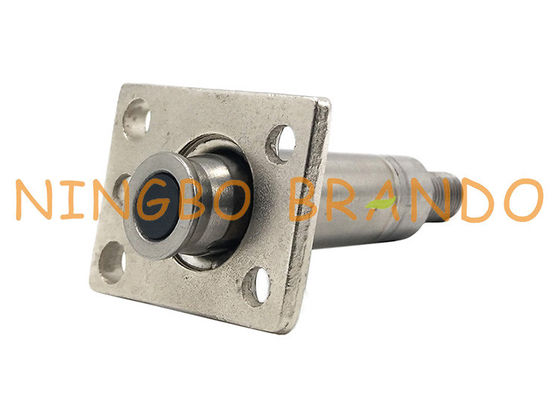

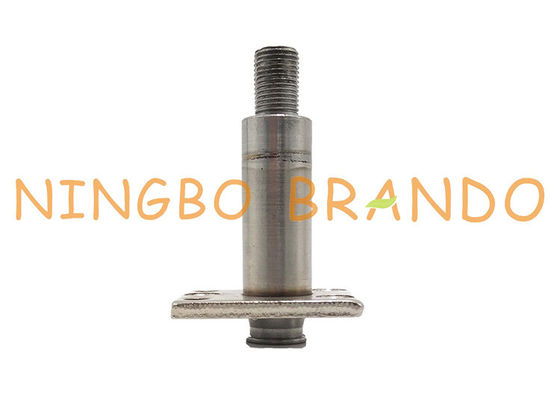

Stainless Steel Guide Tube 3/2 Way NC NBR Seal Solenoid Valve Armature

Stainless Steel Guide Tube 3/2 Way NC NBR Seal Solenoid Valve Armature

During the choose of the Solenoid Armature, you should pay attention to below factors:

1. Working voltage: AC or DC

2. Switching function: 2/2 or 3/2way;

3. De-energized state: Normal close, normal open or Divert

4. Stroke of the matched valve body

5. Valve’s orifice

6. Working environment: working medium, temperature, pressure of pipeline etc

When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core.

When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

Main dimension of Solenoid Valve Armature Assembly:

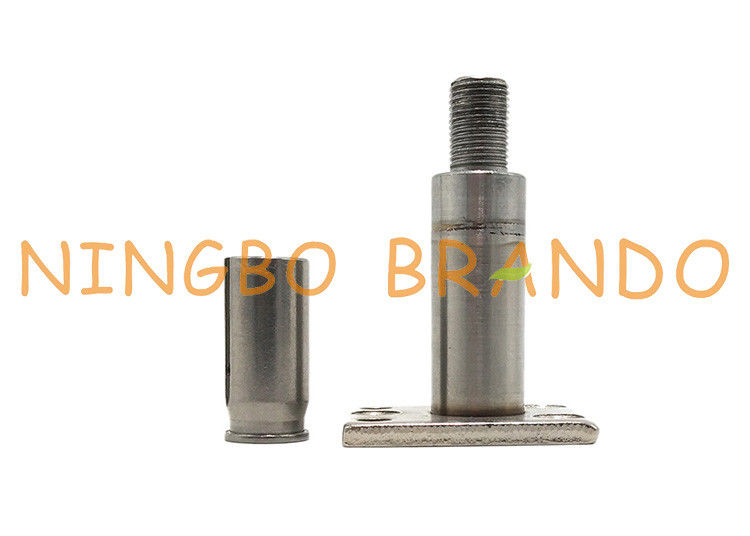

Details of Solenoid Valve Armature Assembly:

               3/2 Way NC                              Mounting Plate

             Plunger Slot                                        NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

FAQ:

How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.

How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
