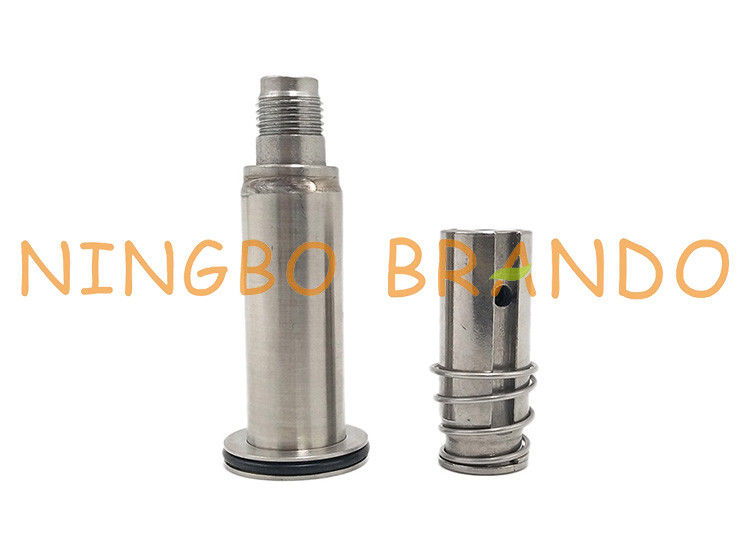

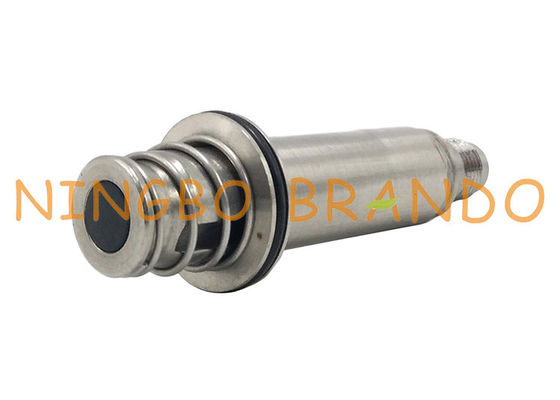

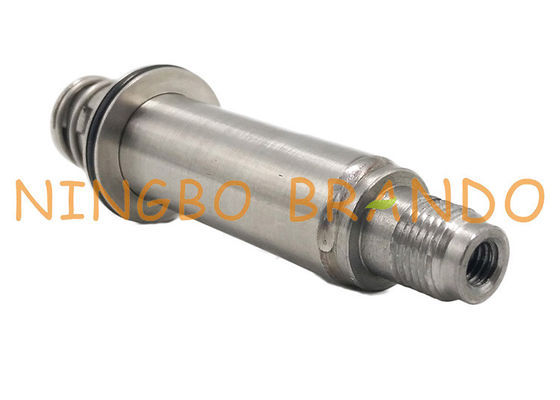

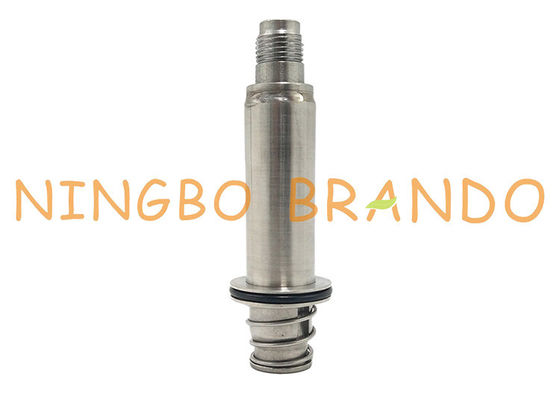

NBR Seal 3/2 Way NC Solenoid Valve Stainless Steel 304 Plunger Tube

NBR Seal Stainless Steel 304 Tube 3/2 Way NC Solenoid Valve Armature

A solenoid valve is made up of two basic functional units.They are

(1) The solenoid, an electro-magnet with a plunger.
(2)A valve containing an orifice in which a disc or plug is positioned to stop or allow flow.

The valve is opened or closed by movement of the magnetic plunger,or core, which is drawn into the solenoid when the coil is energised (an electric current is passed through it). The solenoid valve opens when energized allowing instrument air to pass through, the valve closes when the solenoid is de-energized preventing instrument air from passing through but vented to the atmosphere.

Solenoid valves have a solenoid mounted directly on the valve body with the solenoid core attached to the valve stem.The core is enclosed and free to move in a permanently sealed tube inside the solenoid coil.This construction provides a compact, leak tight assembly.

Main dimension of Solenoid Valve Armature Assembly:

Details of Solenoid Valve Armature Assembly:

          3/2 Way NC                                        Flange Seat

             Plunger Slot                                        NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

FAQ:

How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.

How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
