| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BAPC308027001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 300000 sets per month |
| Function: | 3 Way, Normally Closed | Seat Type: | M12x0.5 Thread |
|---|---|---|---|
| Plunger Tube Material: | Brass | Plunger Tube OD: | φ8mm |
| Seal Material: | NBR | Voltage: | AC, DC All Available |
| Application: | 4V100 Series Pneumatic Solenoid Valve | Valve Model: | 4V110-06, 4V120-06, 4V130C-06 |
| High Light: | Core Tube And Plunger,Solenoid Valve Enclosing Tube,Solenoid Valve Plunger Shell |
||

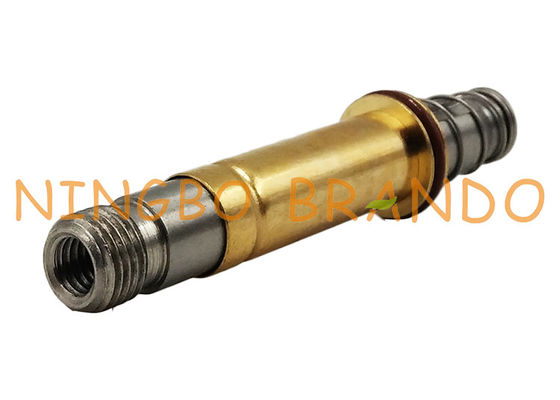

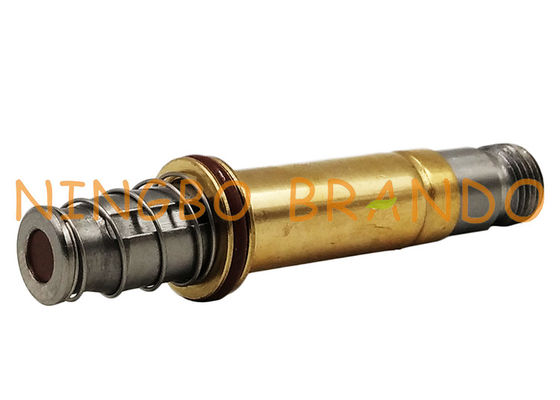

Flange Seat NBR Plunger Seal Brass Tube Solenoid Valve Armature
The magnetic (solenoid) valve includes an electromagnet which comprises a coil arrangement and an armature driven by the coil arrangement. A control part is provided on the armature, which corresponds to at least one channel aperture to be controlled in a fluid channel, and which is shifted at the control movement of the armature relative to the at least one channel aperture. The armature is formed as a pivot anchor, whose switching movement is a pivotal movement , at which the control part is shifted orthogonally to the longitudinal axis of the coil arrangement.
The main characteristics of the armature of solenoid valve can be reflected in the following aspects.
1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive
2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.
3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance
4. Sealing materials can be selected according to your different requirements
5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

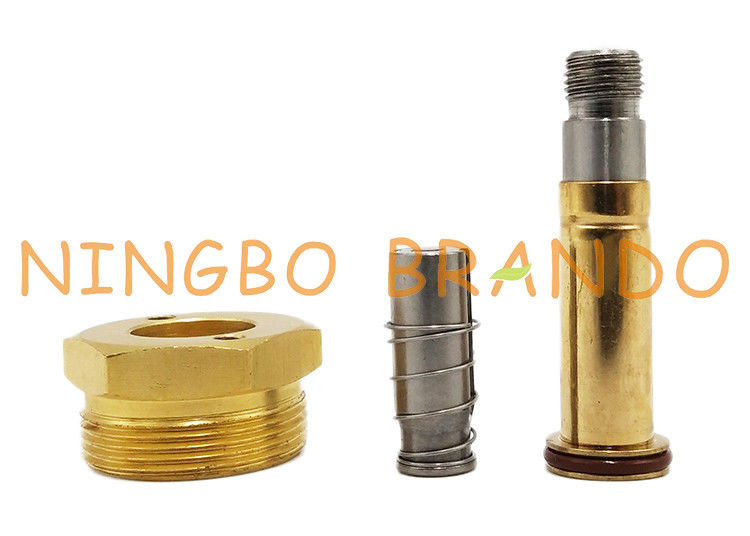

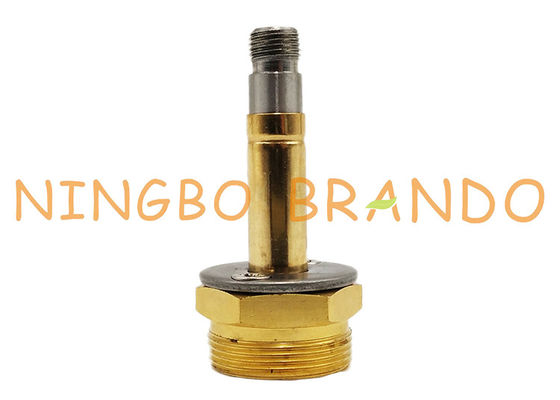

Details of Solenoid Valve Armature Assembly:
3 Way Normally Closed Flange Seat
Plunger Slot NBR Seal
Technical data of Solenoid Valve Armature Assembly:
Main dimension of Solenoid Valve Armature Assembly:
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
