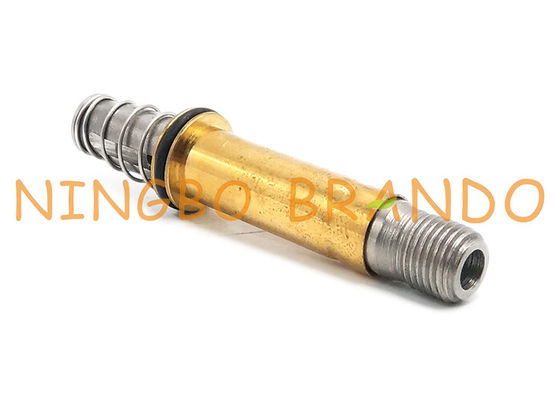

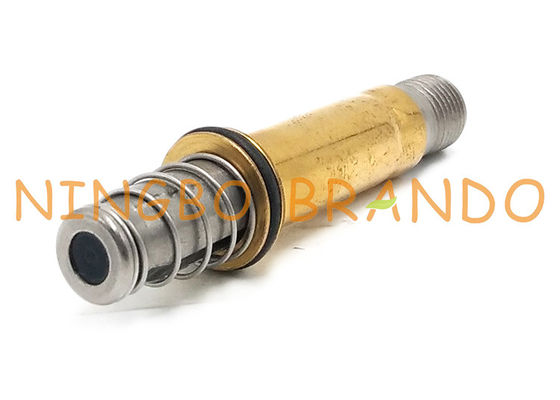

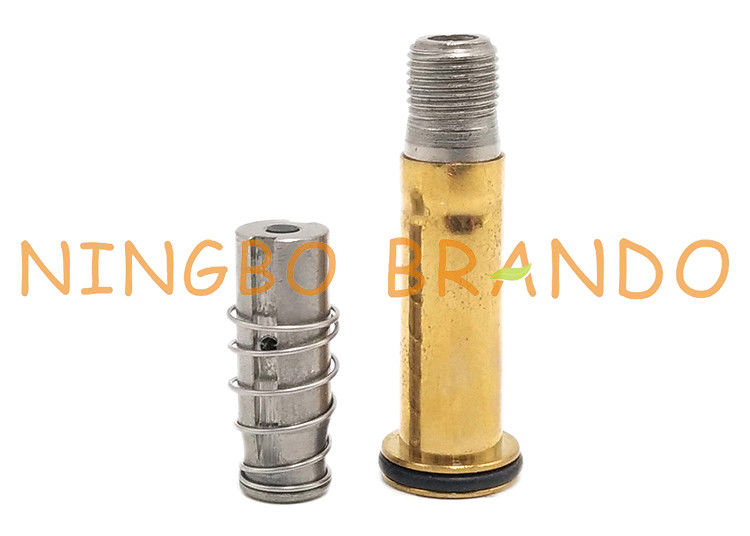

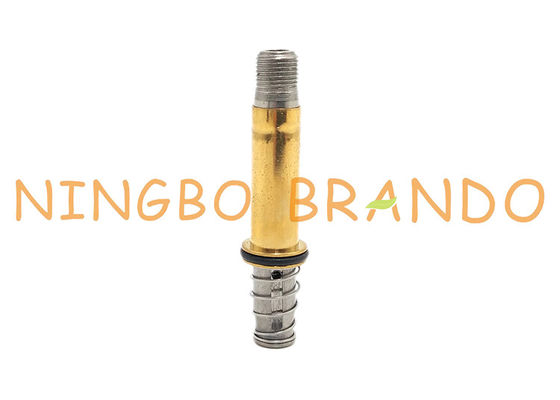

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly
video
S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC309030041
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Function: 3 Way, Normally Closed Seat Type: Flange
Plunger Tube Material: Brass Plunger Tube OD: φ9mm
Seal Material: NBR Voltage: AC, DC All Available
Application: 4V400 Series Pneumatic Solenoid Valves Valve Model: 4V410-15, 4V420-15, 4V430C-15
High Light:

Pneumatic Solenoid Valve Armature

,

Solenoid Valve Armature

,

Solenoid Armature Tube

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly



Brando is a solenoid valve armature assembly professional manufacturer and exporter in Ningbo, China. Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.



Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to function: 2/2 way NC, 2/2 way NO, 3/2 way NC, 3/2 way NO.

* According to connection: thread, flange



Details of Solenoid Valve Armature Assembly:

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly 0

  3 Way Normally Closed                   Flange Seat

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly 1

           Plunger Slot                                 NBR Seal



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC309030041
Guide Tube Outer Diameter
8.9mm
Installation Height for Coil Assembling
24.5mm
Plunger Seal for Orifice Diameter
4.2mm
Guide Tube Material
Brass
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Application Example
4V410 Series Pneumatic Solenoid Valves
Customized Service
Provided, welcome show us sample or drawing


Main dimension of Solenoid Valve Armature Assembly:

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly 2

Brando Factory Production of Solenoid Valve Armature Assembly:

S9 Brass Tube 4V410-15 Pneumatic Solenoid Valve Armature Assembly 3



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



How to choose a right solenoid armature?



During the choose of the Solenoid Armature, you should pay attention to below factors:

1. Working voltage: AC or DC

2. Switching function: 2/2 or 3/2way;

3. De-energized state: Normal close, normal open or Divert

4. Stroke of the matched valve body

5. Valve’s orifice

6. Working environment: working medium, temperature, pressure of pipeline etc



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
