3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature
video
3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC309029028
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Function: 3 Way, Normally Closed Seat Type: M8x0.5 Thread
Plunger Tube Material: Brass Plunger Tube OD: φ9mm
Seal Material: NBR Voltage: AC, DC All Available
Application: 4V200, 4V300, 4V400 Series Pneumatic Solenoid Valves
High Light:

3/2 Way NC Solenoid Valve Armature

,

Pneumatic Solenoid Valve Armature

,

Solenoid Valve Plunger Tube Assembly

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature



The solenoid consists of a coil of wire wound in the form of a cylinder around the bobbin. When an electrical current is introduced, it resembles a bar magnet. When energized by an electrical signal, a magnetic field builds up which attracts the movable plunger to the polepiece against the tension of the main plunger spring. When de-energized, the magnetic field dissipates and the plunger returns to its original position, under the action of the main plunger spring.



1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection



In order to be usable on AC current as well as DC, the polepiece contains a shading ring to average the alternating sine wave and minimize AC hum. (Note - It is not necessary to use a shading ring for DC applications as DC current does not produce an alternating wave function.) The flowing media is normally permitted to enter the area between the plunger and plunger guide tube, and caution should be used to assure that these components are compatible with the media when selecting a valve.



Details of Solenoid Valve Armature Assembly:

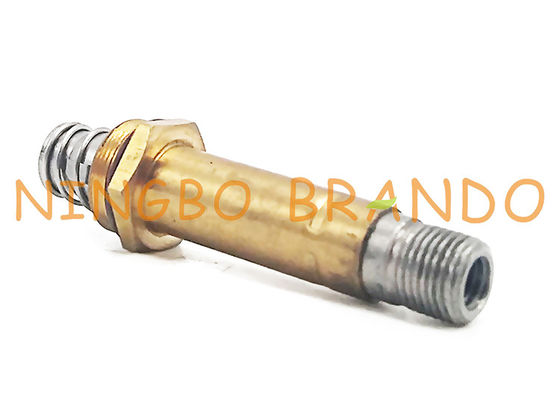

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature 0

         Shading Ring                    M8x0.5 Thread Seat

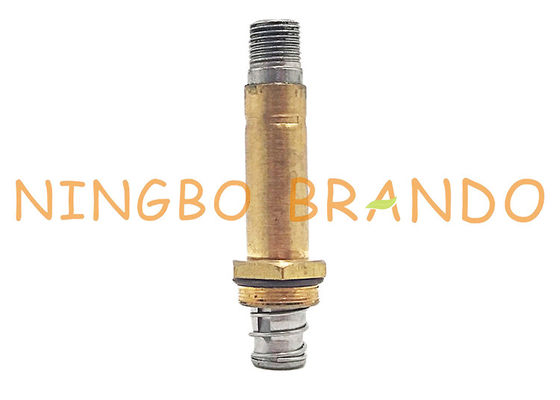

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature 1

           Plunger Slot                          FKM Seal



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC309029028
Guide Tube Outer Diameter
9.0mm
Installation Height for Coil Assembling
27.0mm
Plunger Seal for Orifice Diameter
4.1mm
Guide Tube Material
Brass
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing



Main dimension of Solenoid Valve Armature Assembly:

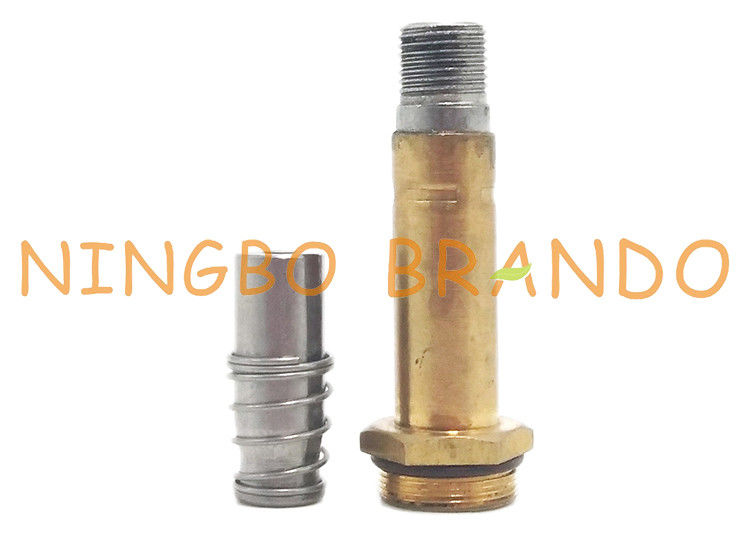

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature 2

Brando Factory Production of Solenoid Valve Armature Assembly:

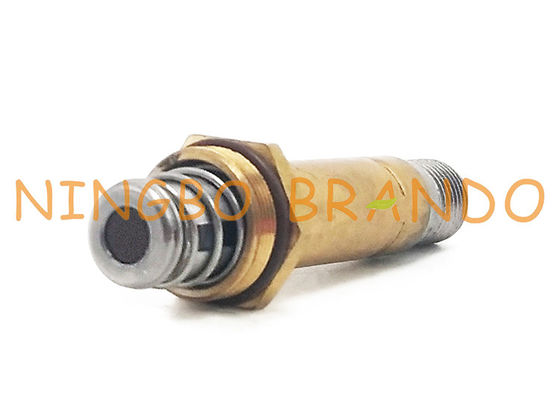

3/2 Way NC Brass Plunger Tube Pneumatic Solenoid Valve Armature 3



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Product Features of Solenoid Valve Armature Assembly:


1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
