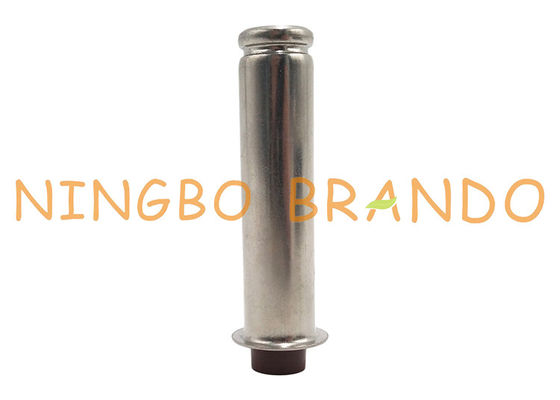

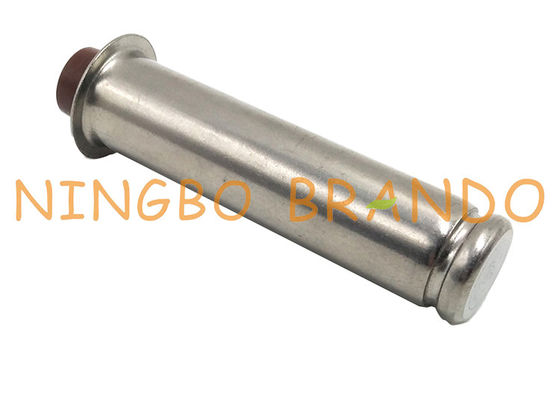

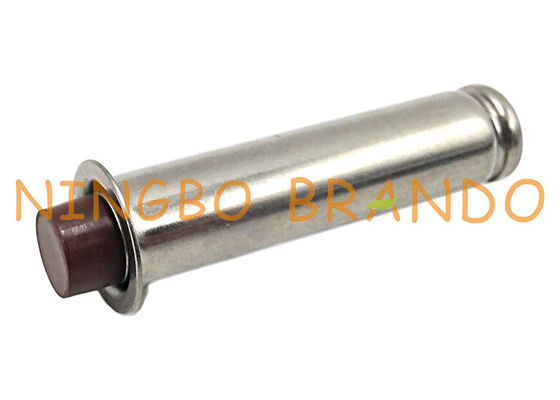

Old Version DMF Series Diaphragm Valve Repair Kit Collectors Armature Rebuild Kit

Old Version DMF Series Diaphragm Valve Repair Kit Collectors Armature Rebuild Kit

Old Version DMF Series Diaphragm Valve Repair Kit Collectors Armature Rebuild Kit
video
Old Version DMF Series Diaphragm Valve Repair Kit Collectors Armature Rebuild Kit
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC213553538
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Fittings Guide Tube Outer Diameter: 13.5mm
Installation Height For Coil Assembling: 32.5mm Plunger Seal For Orifice Diameter: 6.4mm
Guide Tube Material: Stainless Steel Seal Material: NBR
Mounting Type: M25 Thread Voltage: AC, DC All Available
Position And Way: 2/2 Way Applicable: 2W025-06, 2W025-08 Solenoid Valve
High Light:

DMF Series Solenoid Valve Armature

,

Diaphragm Solenoid Valve Armature

,

DMF Series Solenoid Kit Plunger

Old Version DMF Series Diaphragm Valve Repair Kit Collectors Armature Rebuild Kit​



How to Choose Pulse Jet Valve you Want

Material :Different solenoid valves come with different choice of material of body and of seal material.

All materials of construction have specific properties that make them suitable for different applications. It is essential to choose the appropriate body and seal material for your media.

Max allowable pressure: Maximum line or system pressure for safe operation.

Performance ratio: The amount of this parameter depends on the kV of the valve and the opening time.



Condition:New
Applicable Industries:Dust Collector
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Plunger Tube Outer Diameter:13.5mm
Installation Height for Coil Assembling:50.8mm
Plunger Seal for Orifice Diameter:10.5mm
Plunger Tube Material:Stainless Steel
Seal Material:FKM
Mounting Type:Flange
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application:Old Version DMF Series Pulse Valve



Dimension of BAPC213553538 Armature Assembly:



Dimension of BAPC213553538 Armature Assembly:





Technical Data:

Model Number
BAPC213553538
Guide Tube Outer Diameter
13.5mm
Installation Height for Coil Assembling
50.8mm
Plunger Seal for Orifice Diameter
10.5mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Flange
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Applicaiton Examples
DMF Series Pulse Jet Valve
Customized Service
Provided, welcome show us sample or drawing





Product Features:

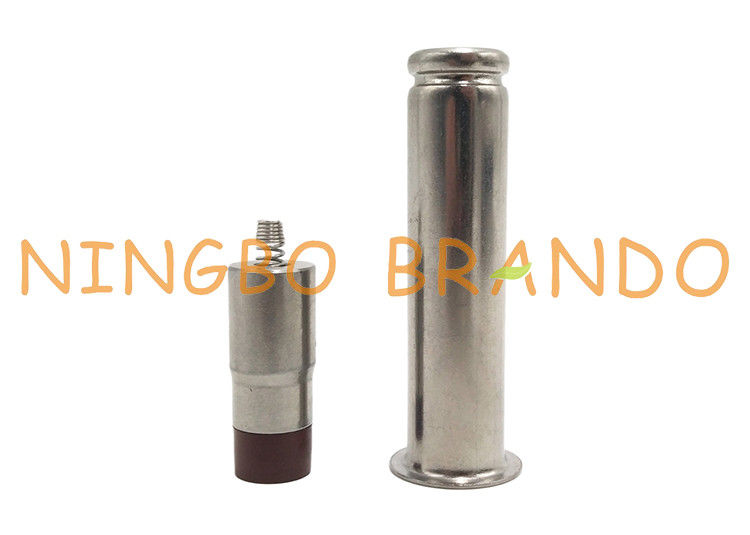

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
