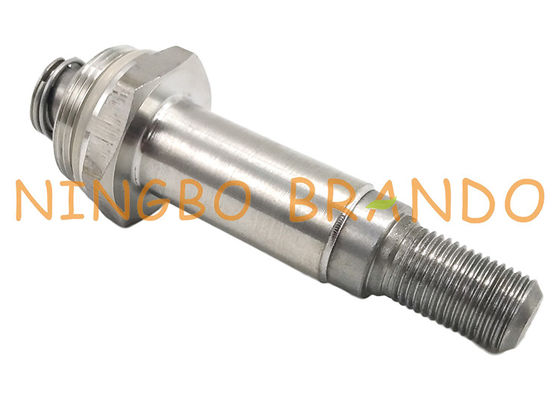

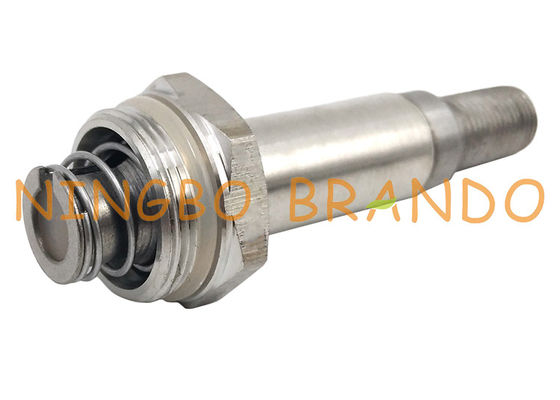

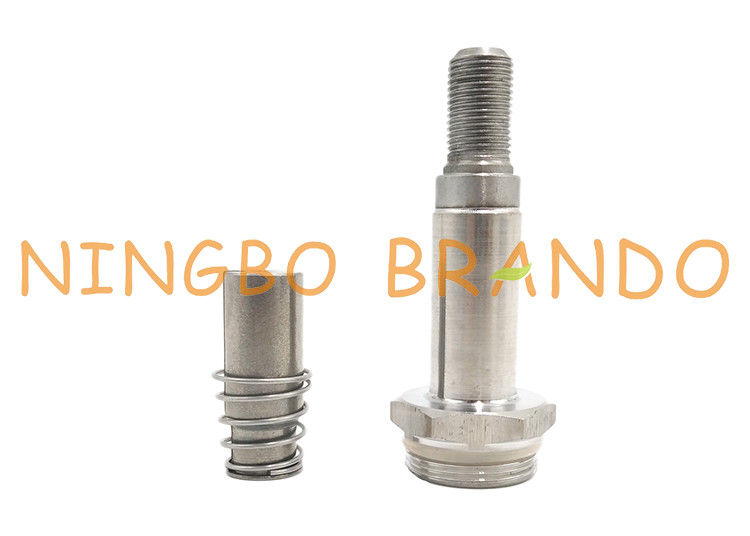

Stainless Steel Air Suspension Solenoid Valve Kit Armature Plunger Assembly

Stainless Steel Air Suspension Solenoid Valve Kit Armature Plunger Assembly

Armature Assembly Categories:

The armature assembly can usually be categorized according to the number of interface positions, switching functions and connection.

Port / positions: 2/2 way or 3/2 way

The first figure shows the number of ports, the second shows the number of positions

Function: Normally closed (NC), or normally open (NO)

Connection: Thread or flange

Condition:New
Applicable Industries:Air Suspension
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:13.0mm
Installation Height for Coil Assembling:33.3mm
Plunger Seal for Orifice Diameter:7.1mm
Guide Tube Material:Stainless Steel
Seal Material:Silicone
Mounting Type:M20 Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Closed

Dimension of BAPC213035008 Armature Assembly:

Technical Data:

Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
