PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger
video
PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC211130021
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Function: 2 Way Normally Closed Seat Type: Thread
Plunger Tube Material: Stainless Steel 304 Plunger Tube OD: φ11.15mm
Seal Material: PTFE Shading Ring Material: Copper
Voltage: AC, DC All Available Application EXamples: Refrigeration Solenoid Valve
High Light:

Solenoid Valve Plunger

,

PTFE Seal Solenoid Valve Armature

,

Refrigeration Solenoid Valve Rebuild Kit

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger

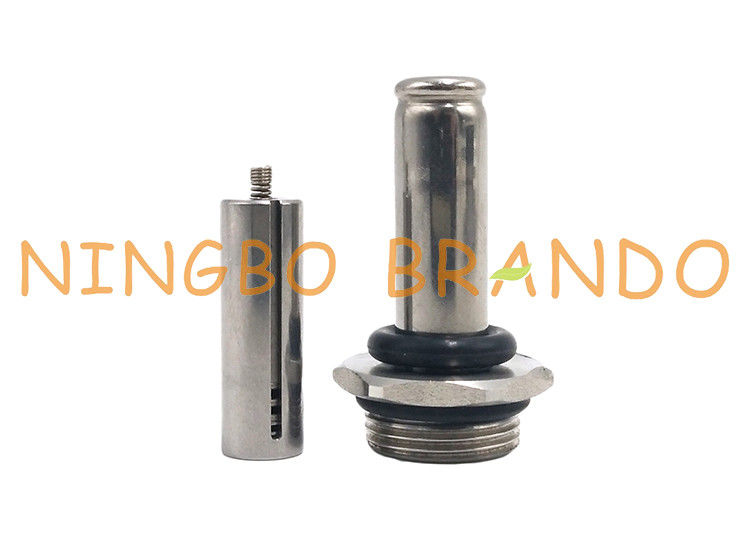

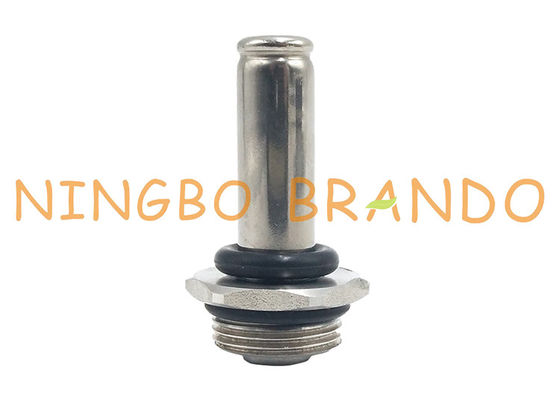

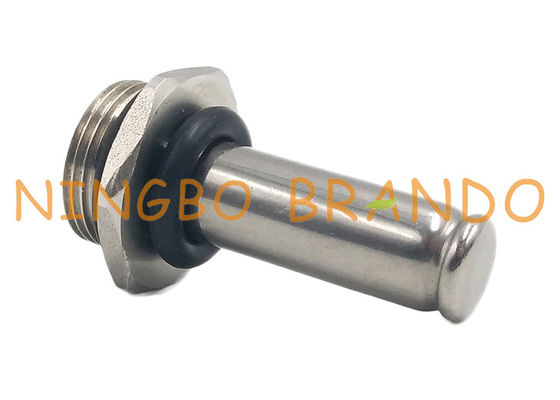

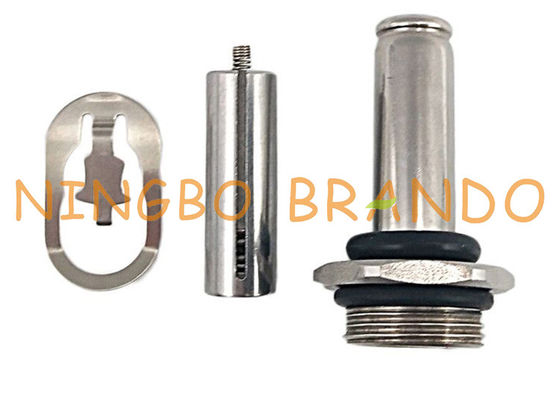

This armature assembly is designed for refrigeration solenoid valve, including 1 x stainless steel armature tube, 1 x stainless steel plunger with PTFE seal and 1 x stainless steel spring. The armature tube outer diameter is 11mm, so it is suitable to 11mm inner hole diameter solenoid valve coil. The standard plunger's seal material is PTFE, but HNBR, VITON, EPDM, Silicone are all available to customize.



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC211130021
Guide Tube Outer Diameter
11.1mm
Installation Height for Coil Assembling
31.0mm
Plunger Seal for Orifice Diameter
6.7mm
Guide Tube Material
Stainless Steel
Seal Material
PTFE (NBR, HNBR, FKM, EPDM, Silicone, all available)
Connection Type
Thread
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Application Examples
Refrigeration Solenoid Valve
Customized Service
Provided, welcome show us sample or drawing


Main dimension of Solenoid Valve Armature Assembly:

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger 0

Details of Solenoid Valve Armature Assembly:

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger 1

      Copper Shading Ring                        Thread Seat

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger 2

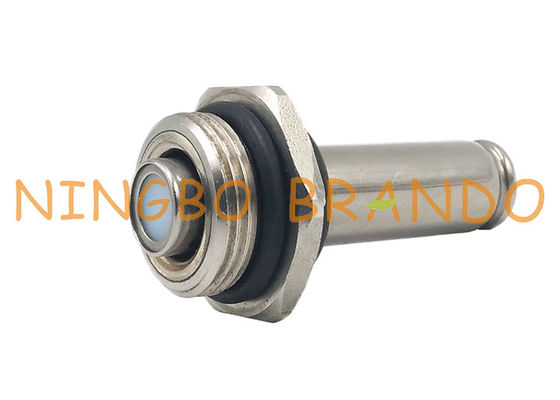

                  Plunger Slot                                 PTFE Seal



Brando Factory Production of Solenoid Valve Armature Assembly:

PTFE Seal Refrigeration Solenoid Valve Spare Part Armature Stem Plunger 3



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Product Features of Solenoid Valve Armature Assembly:


1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
