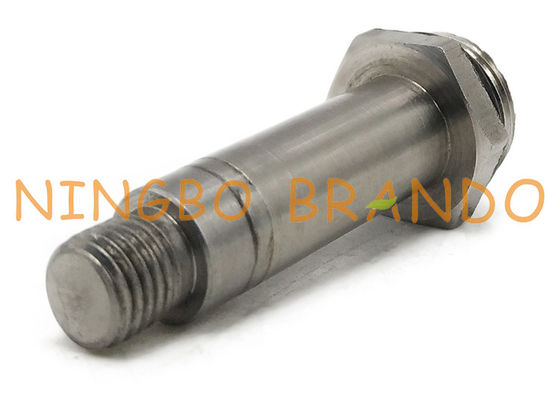

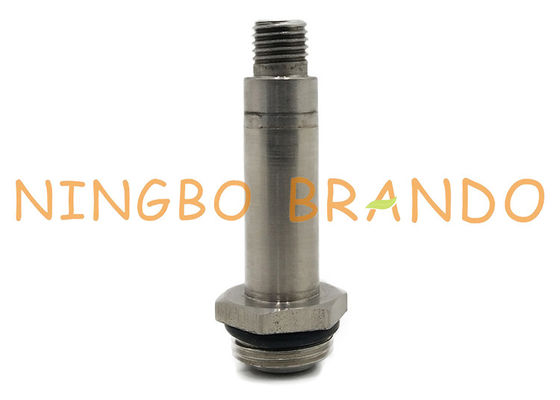

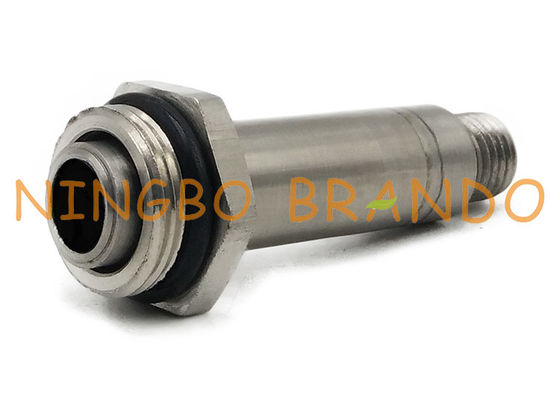

LPG CNG Filling Station Gas Solenoid Valve 2/2 Way NC Armature Assembly

LPG CNG Filling Station Gas Solenoid Valve 2/2 Way NC Armature Assembly

Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:10.0mm
Installation Height for Coil Assembling:29.0mm
Plunger Seal for Orifice Diameter:6.5mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application:LPG CNG Filling Station Solenoid Valve

Dimension of BAPC210029007 Armature Assembly:

Technical Data:

Product Features:

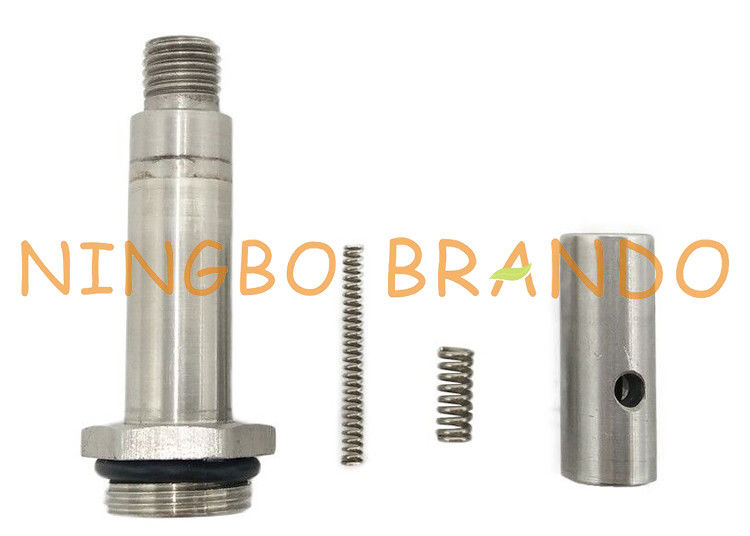

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
