Automobile Heater Part Repair Kit Solenoid Valve Armature Assembly

Automobile Heater Part Repair Kit Solenoid Valve Armature Assembly

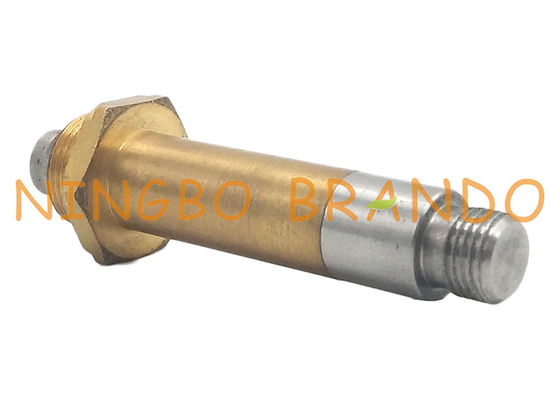

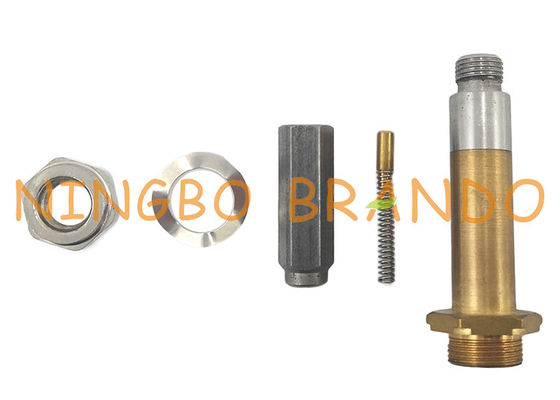

This is a set of solenoid valve armature assembly, including 1 x brass plunger tube, 1 x stainless steel moving core with NBR seal and 1 x stainless steel spring. This plunger assembly is designed for 2 way normally closed solenoid valves, such like Automobile Heater Solenoid Valve. The armature tube outer diameter is 10mm, so it is suitable to 10mm inner hole diameter solenoid valve coil. The standard plunger's seal material is VITON, but NBR, HNBR, EPDM, Silicone are all available to customize.

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

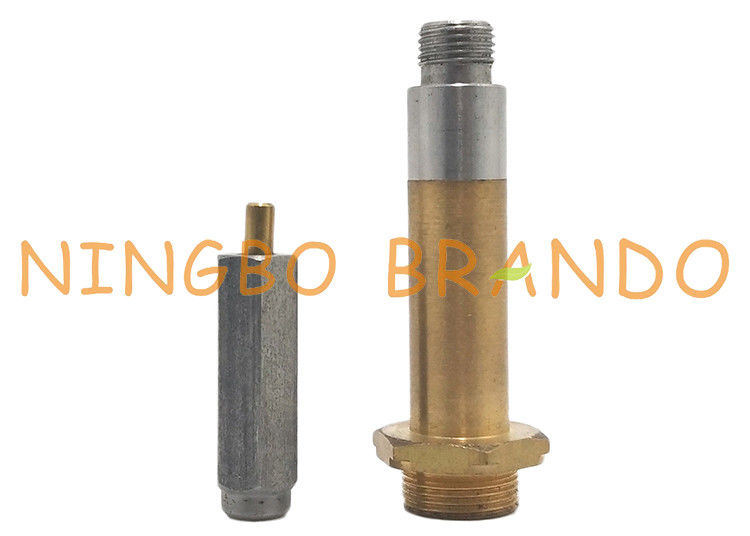

Details of Solenoid Valve Armature Assembly:

      2 Way Normally Closed                        Thread Seat

       Magnetic Moving Core                         VITON Seal

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Product Features of Solenoid Valve Armature Assembly:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.
