Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly

Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly

  • Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly
  • Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly
  • Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly
  • Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly
Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC210035011
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Position And Way: 2 Way 2 Position Non-working Status: Normally Closed
Seat Type: Flange Core Tube Material: Stainless Steel
Core Tube OD: φ10mm Seal Material: Resin
Voltage: AC, DC All Available Application EXamples: Textile Machinery Solenoid Valve
High Light:

Solenoid Armature Tube

,

2/2 Way Solenoid Valve Plunger

,

Solenoid Valve Plunger Tube

Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly

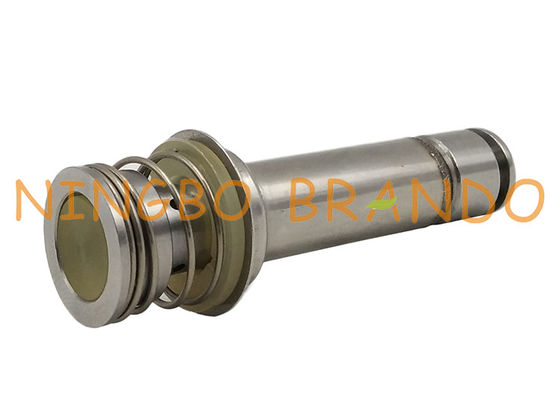

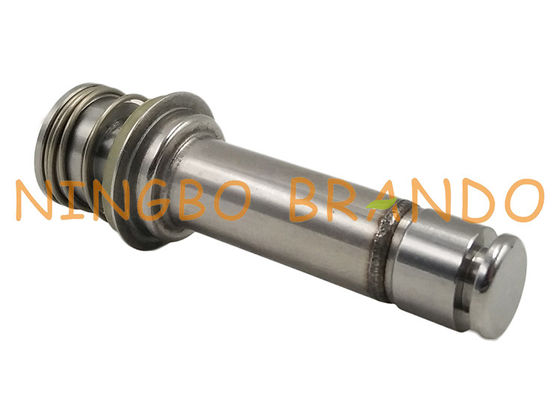

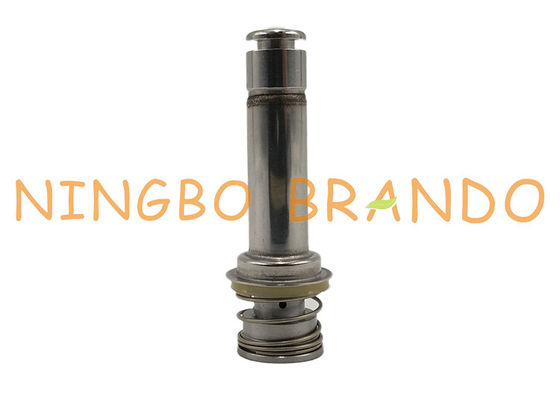

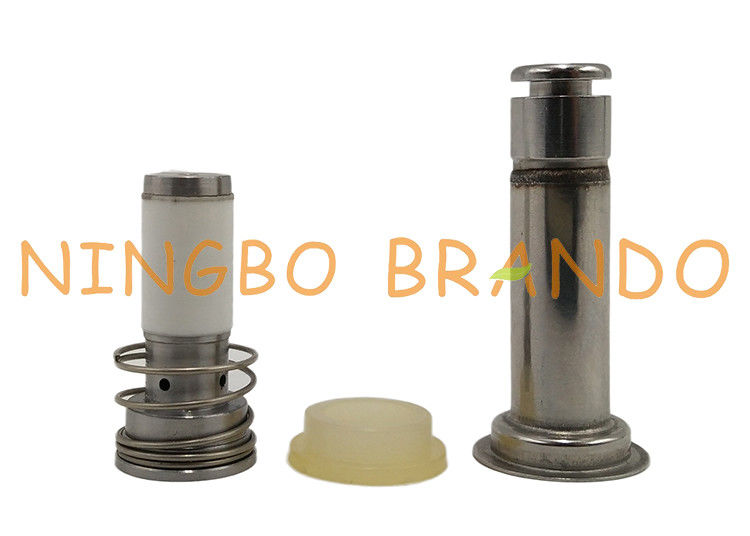

This is a set of solenoid valve armature assembly, including 1 x stainless steel 304 plunger tube, 1 x moving core with Resin seal and 1 x stainless steel spring. This plunger assembly is designed for 2 way normally closed solenoid valves, such like Tsudakoma Textile Machinery Relay Solenoid Valve. The armature tube outer diameter is 10mm, so it is suitable to 10mm inner hole diameter solenoid valve coil. The standard plunger's seal material is Resin, but NBR, HNBR, VITON, EPDM, Silicone are all available to customize.



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC210035011
Guide Tube Outer Diameter
10.0mm
Installation Height for Coil Assembling
35.9mm
Plunger Seal for Orifice Diameter
9.6mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection type
Flange
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Applicatoin Examples
Textile Relay Solenoid Valve
Customized Service
Provided, welcome show us sample or drawing


Main dimension of Solenoid Valve Armature Assembly:

Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly 0

Details of Solenoid Valve Armature Assembly:

Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly 1

     2 Way Normally Closed                            Flange Seat

Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly 2



      Magnetic Moving Core                          Resin Seal



Brando Factory Production of Solenoid Valve Armature Assembly:

Tsudakoma Textile Machinery Relay Solenoid Valve Armature Assembly 3



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Product Features of Solenoid Valve Armature Assembly:


1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
