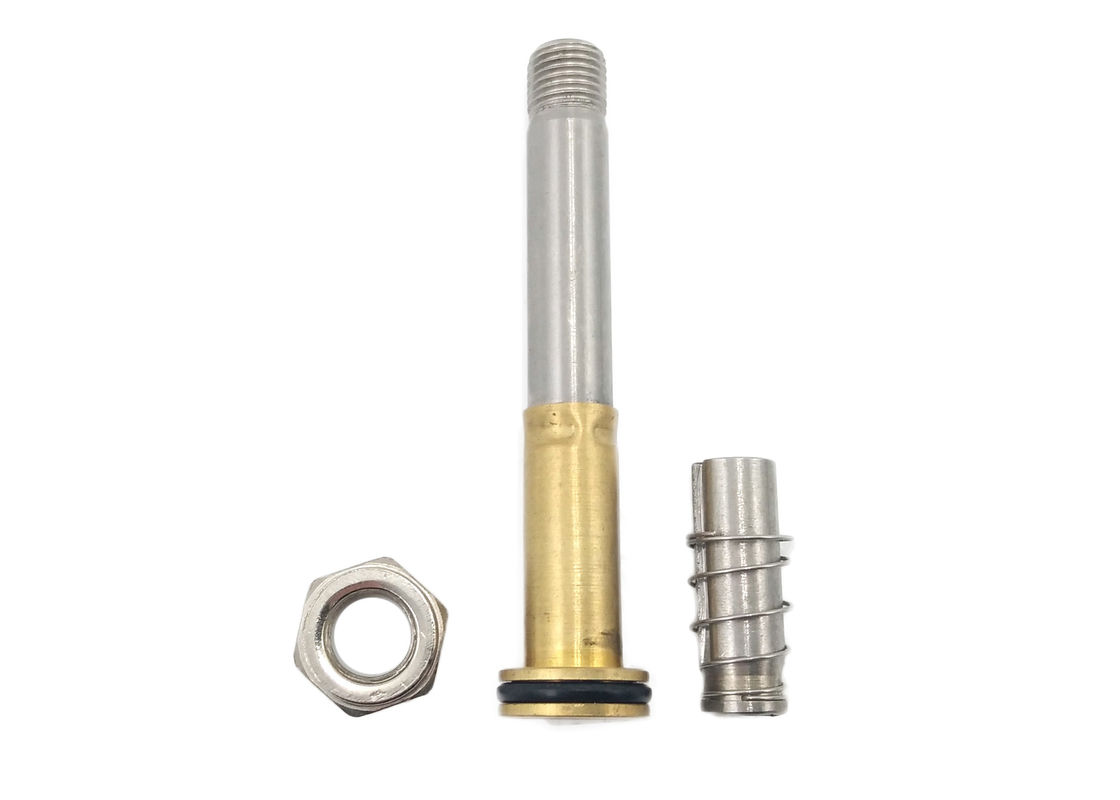

NBR Seals Brass Shell Flange Seat Fountain Solenoid Valve Armature Tube Rebuild Kit

NBR Seals Brass Shell Flange Seat Fountain Solenoid Valve Armature Tube Rebuild Kit

NBR Seals Brass Shell Flange Seat Fountain Solenoid Valve Armature Tube Rebuild Kit
video
NBR Seals Brass Shell Flange Seat Fountain Solenoid Valve Armature Tube Rebuild Kit
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC208046011
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Fittings Guide Tube Outer Diameter: 7.9mm
Installation Height For Coil Assembling: 46.3mm Plunger Seal For Orifice Diameter: 5.7mm
Guide Tube Material: Brass Seal Material: NBR
Mounting Type: Flange Voltage: AC, DC All Available
Position And Way: 2/2 Way Application Example: Fountain Solenoid Valve
High Light:

2/2 Way NC Solenoid Stem

,

Armature Tube Repair Kit

,

Flange Armature Plunger Tube

NBR Seals Brass Shell Flange Seat Fountain Solenoid Valve Armature Tube Rebuild Kit



Condition:New
Warranty:3 months
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:7.9mm
Installation Height for Coil Assembling:46.3mm
Plunger Seal for Orifice Diameter:5.7mm
Guide Tube Material:Brass
Seal Material:NBR
Mounting Type:Flange
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application Example:Fountain Solenoid Valve



Dimension of BAPC208046011 Armature Assembly:



Dimension of BAPC208046011 Armature Assembly:





Technical Data:

Model Number
BAPC208046011
Guide Tube Outer Diameter
7.9mm
Installation Height for Coil Assembling
21.4mm
Plunger Seal for Orifice Diameter
2.1mm
Guide Tube Material
Brass
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Application Example
Fountain Solenoid Valves
Customized Service
Provided, welcome show us sample or drawing





Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
