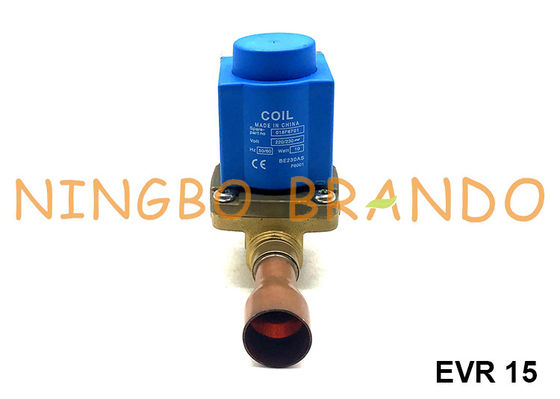

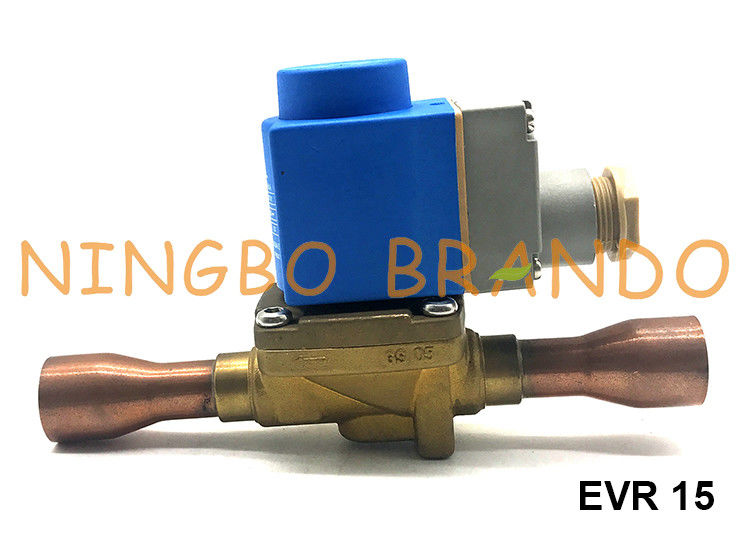

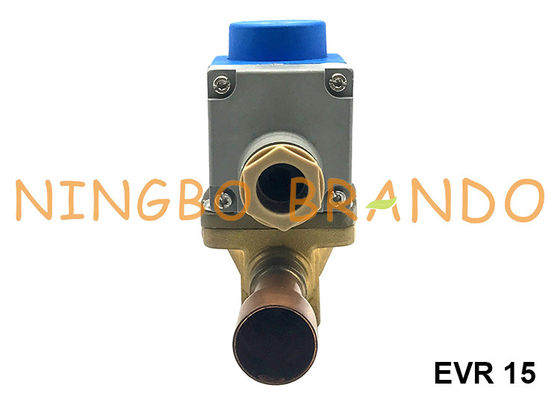

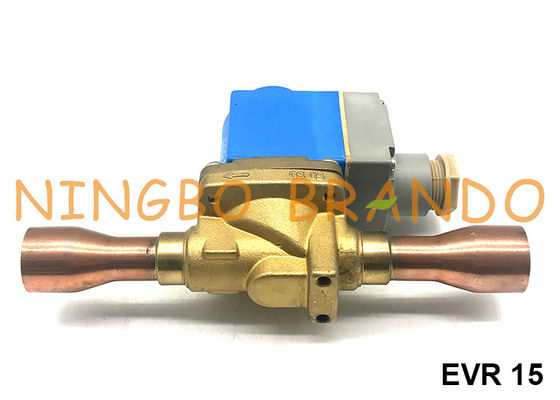

Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193

Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193

  • Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193
  • Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193
  • Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193
  • Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193
Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: EVR 15-078S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Direct Acting Material: Brass
Pressure: Ordinary Pressure Valve Structure: Direct-Acting Piston Structure
Power Supply: DC Solenoid Valve Usage: Temperature Control
Standard: GB Cooper Pipe Size: 1/4'' Through 2-1/8''
Solenoid Coils: DC/AC Application: Refrigeration Units,Air Conditioning Or Refrigerator
High Light:

Danfoss Solenoid Valve

,

Danfoss Refrigeration Solenoid Valve

,

EVR Solenoid Valve

Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193



EVR Solenoid Valve Product Introduction:

Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.



EVR solenoid valve features:

1, complete range of solenoid valve for refrigeration, freezing and conditioning plant

2, wide choice of coil for AC and DC

3, suitable for all fluorinated refrigerants

4, Extended ends for soldering make installation easy, it is not necessary to dismantle the valve when soldering in.

5, EVR valve is also available with flange connection type



Compression principle:
Suction process: Gas enters the rotor slot through the suction port. As the rotor rotates, the star wheels enter the state of meshing with the rotor slots, and the gas enters the compression chamber (the closed space formed by the rotor slot curved surface, the casing cavity and the star tooth surface).
Compression process: As the rotor rotates, the volume of the compression chamber decreases and the gas is compressed until the leading edge of the compression chamber is turned to the exhaust port.


Exhaust process: After the front of the compression chamber is turned to the exhaust port, the exhaust is started, and a working cycle is completed. Due to the symmetrical arrangement of the star wheels, the cycle undergoes two compressions per revolution, and the displacement is correspondingly twice the amount of circulation per week.



Dimension:

Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193 0         Danfoss Type 7/8'' Electromagnetic Gas Refrigeration Solenoid Valve EVR15 032F2193 1

Model
Connection
H1
H2
L
L2
SAE (Thread)
ODF (Solder)
Inch
mm
mm
mm
mm
mm
EVR3-014
EVR3-014S
1/4''
6
14
71
102
7
EVR3-038
EVR3-038S
3/8''
10
14
73
117
10
EVR6-038
EVR6-038S
3/8''
10
14
79
111
10
EVR6-012
EVR6-012S
1/2''
12.8
14
79
127
10
EVR10-012
EVR10-012S
1/2''
12.8
16
79
127
10
EVR10-058
EVR10-058S
5/8''
16
16
79
160
12

EVR15-058S
5/8''
16
19
86
176
12

EVR15-078S
7/8''
22
19
86
176
17

EVR20-078S
7/8''
22
20
90
191
17

EVR20-118S
1 1/8''
28.8
20
90
214
22

EVR22-0138S
1 3/8''
35
20
90
281
25

EVR25-118S
1 1/8''
28.8
38
138
256
22

EVR25-138S
1 3/8''
35
38
138
281
25

EVR32-138S
1 3/8''
35
47
111
281
25

EVR32-158S
1 5/8''
42
47
111
281
29

EVR40-158S
1 5/8''
42
47
111
281
29

EVR40-218S
2 1/8''
54
47
111
281
34



Type
Connection
Code no.
Valve body + 10 W a. c. coil with terminal box
Flare
Solder ODF
in.
mm
in./mm
in.
mm
EVR 3
1/4
6
032F8110
032F2043
032F2053
EVR 6
3/8
10
032F8074
032F2083
032F2093
EVR 10
1/2
12
032F8092
032F2123
032F2133
EVR 15
5/8
16
032F8103
032F2193
032F2193
EVR 20
7/8
22

032F2243
032F2243




Without Coil
Type
Current Type
Connection Size
Max. working pressure
Kv valve [m3/h]
Cv valve [gal/min]
Coder No.
[mm]
[in.]
[bar]
[psi]
EVR2
a.c.
-
1/4
45.2
655
0.16
0.19
032F1201
a.c.
6
-
45.2
655
0.16
0.19
032F1202
EVR3
a.c./d.c.
-
1/4
45.2
655
0.27
0.32
032F1206
a.c./d.c.
-
3/8
45.2
655
0.27
0.32
032F1204
a.c./d.c.
6
-
45.2
655
0.27
0.32
032F1207
a.c./d.c.
10
-
45.2
655
0.27
0.32
032F1208
EVR6
a.c./d.c.
-
1/2
45.2
655
0.80
0.92
032F1209
a.c./d.c.
-
3/8
45.2
655
0.80
0.92
032F1212
a.c./d.c.
10
-
45.2
655
0.80
0.92
032F1213
a.c./d.c.
12
-
45.2
655
0.80
0.92
032F1236
EVR10
a.c./d.c.
-
1/2
35
500
1.9
2.2
032F1217
a.c./d.c.
12
-
35
500
1.9
2.2
032F1218
a.c./d.c.
16
5/8
35
500
1.9
2.2
032F1214
EVR15
a.c./d.c.
22
7/8
32
460
2.6
3.0
032F1225
a.c./d.c.
16
-
32
460
2.6
3.0
032F1227
a.c./d.c.
16
5/8
32
460
2.6
3.0
032F1228
EVR20
a.c.
22
7/8
32
460
5.0
5.8
032F1240
a.c.
-
7/8
32
460
5.0
5.8
032F1254
a.c.
-
1-1/8
32
460
5.0
5.8
032F1244
a.c.
28
-
32
460
5.0
5.8
032F1245
d.c.
22
7/8
32
460
5.0
5.8
032F1264
d.c.
-
7/8
32
460
5.0
5.8
032F1274
ECR22
a.c.
35
1-3/8
32
460
6.0
6.9
032F3267
EVR25
a.c./d.c.
-
1-1/8
32
460
10.0
11.6
032F2200
a.c./d.c.
-
1-1/8
32
460
10.0
11.6
032F2201
a.c./d.c.
28
-
32
460
10.0
11.6
032F2205
a.c./d.c.
28
-
32
460
10.0
11.6
032F2206
a.c./d.c.
-
1-3/8
32
460
10.0
11.6
032F2207
a.c./d.c.
-
1-3/8
32
460
10.0
11.6
032F2208
EVR32
a.c./d.c.
-
1-5/8
32
460
16.0
18.5
042H1103
a.c./d.c.
-
1-5/8
32
460
16.0
18.5
042H1104
a.c./d.c.
35
-
32
460
16.0
18.5
042H1105
a.c./d.c.
35
-
32
460
16.0
18.5
042H1106
a.c./d.c.
42
-
32
460
16.0
18.5
042H1107
a.c./d.c.
42
-
32
460
16.0
18.5
042H1108
EVR 40
a.c./d.c.
-
1-5/8
32
460
25.0
28.9
042H1109
a.c./d.c.
-
1-5/8
32
460
25.0
28.9
042H1110
a.c./d.c.
-
2-1/8
32
460
25.0
28.9
042H1111
a.c./d.c.
-
2-1/8
32
460
25.0
28.9
042H1112
a.c./d.c.
42
-
32
460
25.0
28.9
042H1113
a.c./d.c.
42
-
32
460
25.0
28.9
042H1114




Brando Supply:
1. Refrigeration Solenoid Valve: EVR, EVRA, HM2 .......
2. Refrigerator Solenoid Valve: FDF, SDF ......
3. Expansion Valve: Thermostatic Expansion Valve, Automatic Expansion Valve, Electronic Expansion Valve ......

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
