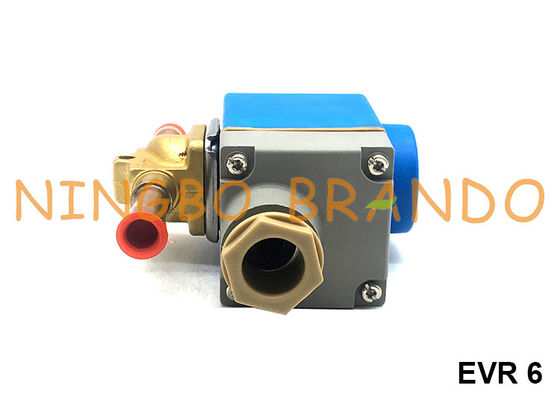

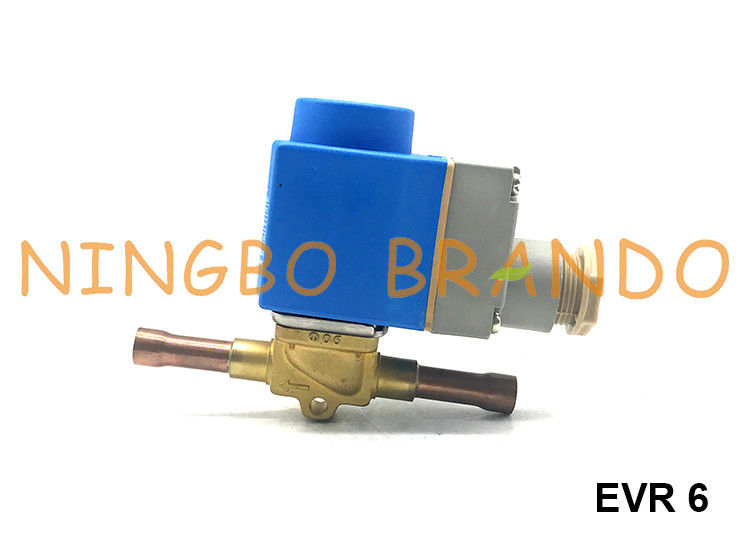

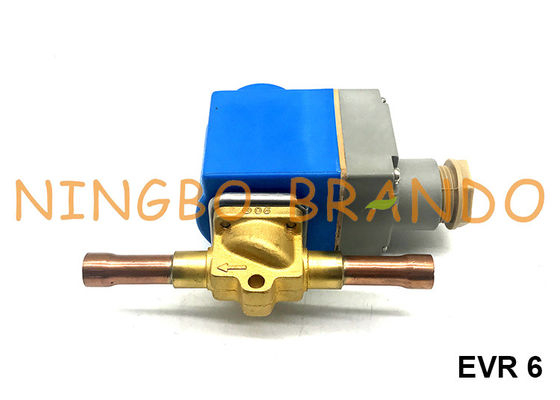

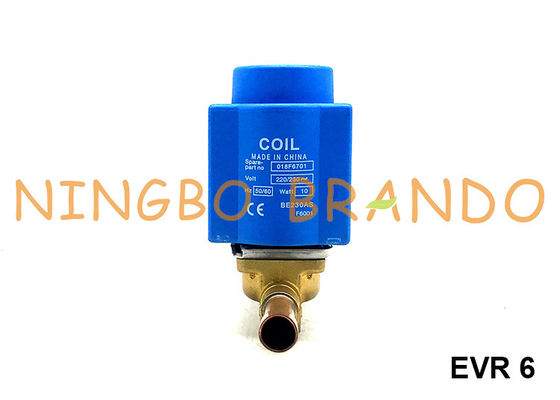

Name: EVR 6-038S 032F2083 EVR6 Series 3/8'' ODF Solder Solenoid Valve
Brand: Brando
SKU: EVR 6-038S
Rating: 4.8 (169 reviews)

Home Products Refrigeration Solenoid Valve

EVR 6-038S 032F2083 EVR6 Series 3/8'' ODF Solder Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	EVR 6-038S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Individual Boxes, Carton, Pallet
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Type:	Direct Acting	Material:	Brass
Pressure:	Ordinary Pressure	Valve Structure:	Direct-Acting Piston Structure
Power Supply:	DC Solenoid Valve	Usage:	Temperature Control
Standard:	GB	Cooper Pipe Size:	1/4'' Through 2-1/8''
Solenoid Coils:	DC/AC	Application:	Refrigeration Units,Air Conditioning Or Refrigerator
High Light:	EVR6 Solenoid Valve , ODF Solder Cooling Solenoid Valve , Refrigeration Liquid Line Solenoid Valve

EVR 6-038S 032F2083 EVR6 Series 3/8'' ODF Solder Solenoid Valve

EVR Solenoid Valve Product Introduction:

Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.

EVR solenoid valve features:

1, complete range of solenoid valve for refrigeration, freezing and conditioning plant

2, wide choice of coil for AC and DC

3, suitable for all fluorinated refrigerants

4, Extended ends for soldering make installation easy, it is not necessary to dismantle the valve when soldering in.

5, EVR valve is also available with flange connection type

Dimension:

EVR 6-038S 032F2083 EVR6 Series 3/8'' ODF Solder Solenoid Valve 0

Model		Connection		H1	H2	L	L2
SAE (Thread)	ODF (Solder)	Inch	mm	mm	mm	mm	mm
EVR3-014	EVR3-014S	1/4''	6	14	71	102	7
EVR3-038	EVR3-038S	3/8''	10	14	73	117	10
EVR6-038	EVR6-038S	3/8''	10	14	79	111	10
EVR6-012	EVR6-012S	1/2''	12.8	14	79	127	10
EVR10-012	EVR10-012S	1/2''	12.8	16	79	127	10
EVR10-058	EVR10-058S	5/8''	16	16	79	160	12
	EVR15-058S	5/8''	16	19	86	176	12
	EVR15-078S	7/8''	22	19	86	176	17
	EVR20-078S	7/8''	22	20	90	191	17
	EVR20-118S	1 1/8''	28.8	20	90	214	22
	EVR22-0138S	1 3/8''	35	20	90	281	25
	EVR25-118S	1 1/8''	28.8	38	138	256	22
	EVR25-138S	1 3/8''	35	38	138	281	25
	EVR32-138S	1 3/8''	35	47	111	281	25
	EVR32-158S	1 5/8''	42	47	111	281	29
	EVR40-158S	1 5/8''	42	47	111	281	29
	EVR40-218S	2 1/8''	54	47	111	281	34

Type	Connection		Code no. Valve body + 10 W a. c. coil with terminal box
	Connection		Flare	Solder ODF
	in.	mm	in./mm	in.	mm
EVR 3	1/4	6	032F8110	032F2043	032F2053
EVR 6	3/8	10	032F8074	032F2083	032F2093
EVR 10	1/2	12	032F8092	032F2123	032F2133
EVR 15	5/8	16	032F8103	032F2193	032F2193
EVR 20	7/8	22		032F2243	032F2243

Without Coil
Type	Current Type	Connection Size		Max. working pressure		Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
Type	Current Type	[mm]	[in.]	[bar]	[psi]	Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
EVR2	a.c.	-	1/4	45.2	655	0.16	0.19	032F1201
EVR2	a.c.	6	-	45.2	655	0.16	0.19	032F1202
EVR3	a.c./d.c.	-	1/4	45.2	655	0.27	0.32	032F1206
	a.c./d.c.	-	3/8	45.2	655	0.27	0.32	032F1204
	a.c./d.c.	6	-	45.2	655	0.27	0.32	032F1207
	a.c./d.c.	10	-	45.2	655	0.27	0.32	032F1208
EVR6	a.c./d.c.	-	1/2	45.2	655	0.80	0.92	032F1209
	a.c./d.c.	-	3/8	45.2	655	0.80	0.92	032F1212
	a.c./d.c.	10	-	45.2	655	0.80	0.92	032F1213
	a.c./d.c.	12	-	45.2	655	0.80	0.92	032F1236
EVR10	a.c./d.c.	-	1/2	35	500	1.9	2.2	032F1217
	a.c./d.c.	12	-	35	500	1.9	2.2	032F1218
	a.c./d.c.	16	5/8	35	500	1.9	2.2	032F1214
EVR15	a.c./d.c.	22	7/8	32	460	2.6	3.0	032F1225
	a.c./d.c.	16	-	32	460	2.6	3.0	032F1227
	a.c./d.c.	16	5/8	32	460	2.6	3.0	032F1228
EVR20	a.c.	22	7/8	32	460	5.0	5.8	032F1240
	a.c.	-	7/8	32	460	5.0	5.8	032F1254
	a.c.	-	1-1/8	32	460	5.0	5.8	032F1244
	a.c.	28	-	32	460	5.0	5.8	032F1245
	d.c.	22	7/8	32	460	5.0	5.8	032F1264
	d.c.	-	7/8	32	460	5.0	5.8	032F1274
ECR22	a.c.	35	1-3/8	32	460	6.0	6.9	032F3267
EVR25	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2200
	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2201
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2205
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2206
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2207
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2208
EVR32	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1103
	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1104
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1105
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1106
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1107
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1108
EVR 40	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1109
	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1110
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1111
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1112
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1113
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1114
