EVR 6-012S 032F2093 Danfoss Type 1/2'' ODF EVR6 Series Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	EVR 6-012S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Individual Boxes, Carton, Pallet
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Type:	Direct Acting	Material:	Brass
Pressure:	Ordinary Pressure	Valve Structure:	Direct-Acting Piston Structure
Power Supply:	DC Solenoid Valve	Usage:	Temperature Control
Standard:	GB	Cooper Pipe Size:	1/4'' Through 2-1/8''
Solenoid Coils:	DC/AC	Application:	Refrigeration Units,Air Conditioning Or Refrigerator
High Light:	Danfoss Solenoid Valve , Danfoss Refrigeration Solenoid Valve , EVR Solenoid Valve

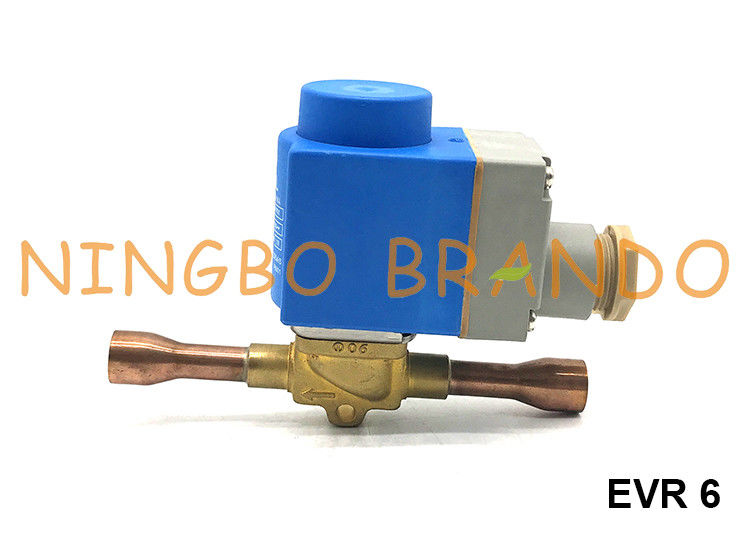

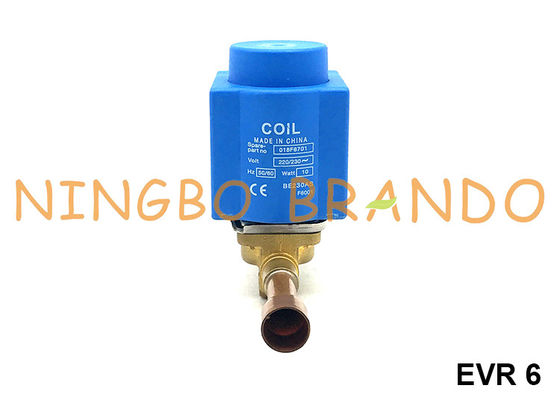

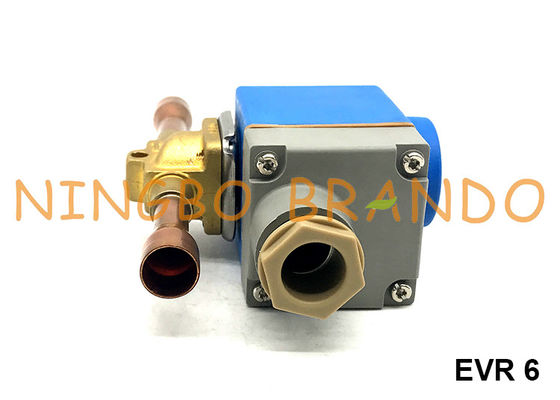

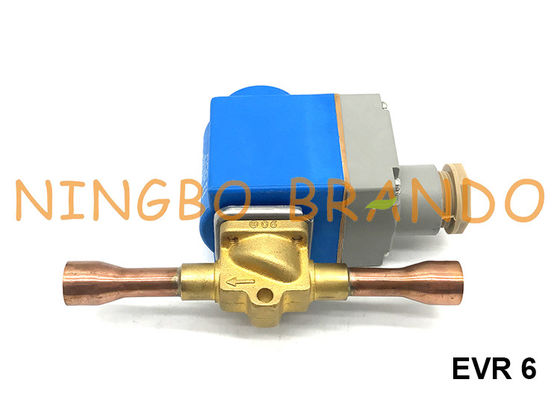

EVR 6-012S 032F2093 Danfoss Type 1/2'' ODF EVR6 Series Solenoid Valve

EVR Solenoid Valve Product Introduction:

Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.

EVR solenoid valve features:

1, complete range of solenoid valve for refrigeration, freezing and conditioning plant

2, wide choice of coil for AC and DC

3, suitable for all fluorinated refrigerants

4, Extended ends for soldering make installation easy, it is not necessary to dismantle the valve when soldering in.

5, EVR valve is also available with flange connection type

Working principle of air - cooled water - cooled unit system:

Air cooled chillers use shell and tube evaporators to exchange heat between water and refrigerant. The refrigerant system absorbs the heat load of the water, and when the water cools and produces cold water, the heat is carried into the finned condenser by the compressor. Then the cooling fan loses to the external air (air cooling).

The shell and tube type evaporator is used in the water-cooled chiller to exchange heat between water and refrigerant. The refrigerant system absorbs the heat load of the water, which is cooled to produce cold water, and then the heat is carried into the shell and tube condenser by the compressor. The heat exchange between the refrigerant and water causes the water to absorb heat, which is then sent out from the external cooling tower through the water pipe (water cooling).

At the beginning, the low-temperature and low-pressure refrigerant gas is sucked away by the compressor after evaporating and cooling, and then compressed into high-temperature and high-pressure gas and sent to the condenser. The high-pressure and high-temperature gas is cooled by the condenser, which condenses the gas into high-pressure liquid at room temperature. When the room temperature high-pressure liquid flows into the thermal expansion, the valve is throttled into low-temperature low-pressure wet steam, which flows into the shell-and-tube evaporator and absorbs the heat of the frozen water in the evaporator to reduce the water temperature. The evaporative refrigerant is sucked back to the compressor for the next refrigeration cycle to achieve the refrigeration purpose.

Dimension:

EVR 6-012S 032F2093 Danfoss Type 1/2'' ODF EVR6 Series Solenoid Valve 0

Model		Connection		H1	H2	L	L2
SAE (Thread)	ODF (Solder)	Inch	mm	mm	mm	mm	mm
EVR3-014	EVR3-014S	1/4''	6	14	71	102	7
EVR3-038	EVR3-038S	3/8''	10	14	73	117	10
EVR6-038	EVR6-038S	3/8''	10	14	79	111	10
EVR6-012	EVR6-012S	1/2''	12.8	14	79	127	10
EVR10-012	EVR10-012S	1/2''	12.8	16	79	127	10
EVR10-058	EVR10-058S	5/8''	16	16	79	160	12
	EVR15-058S	5/8''	16	19	86	176	12
	EVR15-078S	7/8''	22	19	86	176	17
	EVR20-078S	7/8''	22	20	90	191	17
	EVR20-118S	1 1/8''	28.8	20	90	214	22
	EVR22-0138S	1 3/8''	35	20	90	281	25
	EVR25-118S	1 1/8''	28.8	38	138	256	22
	EVR25-138S	1 3/8''	35	38	138	281	25
	EVR32-138S	1 3/8''	35	47	111	281	25
	EVR32-158S	1 5/8''	42	47	111	281	29
	EVR40-158S	1 5/8''	42	47	111	281	29
	EVR40-218S	2 1/8''	54	47	111	281	34

Type	Current Type	Connection Size		Max. working pressure		Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
Type	Current Type	[mm]	[in.]	[bar]	[psi]	Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
EVR2	a.c.	-	1/4	45.2	655	0.16	0.19	032F1201
EVR2	a.c.	6	-	45.2	655	0.16	0.19	032F1202
EVR3	a.c./d.c.	-	1/4	45.2	655	0.27	0.32	032F1206
	a.c./d.c.	-	3/8	45.2	655	0.27	0.32	032F1204
	a.c./d.c.	6	-	45.2	655	0.27	0.32	032F1207
	a.c./d.c.	10	-	45.2	655	0.27	0.32	032F1208
EVR6	a.c./d.c.	-	1/2	45.2	655	0.80	0.92	032F1209
	a.c./d.c.	-	3/8	45.2	655	0.80	0.92	032F1212
	a.c./d.c.	10	-	45.2	655	0.80	0.92	032F1213
	a.c./d.c.	12	-	45.2	655	0.80	0.92	032F1236
EVR10	a.c./d.c.	-	1/2	35	500	1.9	2.2	032F1217
	a.c./d.c.	12	-	35	500	1.9	2.2	032F1218
	a.c./d.c.	16	5/8	35	500	1.9	2.2	032F1214
EVR15	a.c./d.c.	22	7/8	32	460	2.6	3.0	032F1225
	a.c./d.c.	16	-	32	460	2.6	3.0	032F1227
	a.c./d.c.	16	5/8	32	460	2.6	3.0	032F1228
EVR20	a.c.	22	7/8	32	460	5.0	5.8	032F1240
	a.c.	-	7/8	32	460	5.0	5.8	032F1254
	a.c.	-	1-1/8	32	460	5.0	5.8	032F1244
	a.c.	28	-	32	460	5.0	5.8	032F1245
	d.c.	22	7/8	32	460	5.0	5.8	032F1264
	d.c.	-	7/8	32	460	5.0	5.8	032F1274
ECR22	a.c.	35	1-3/8	32	460	6.0	6.9	032F3267
EVR25	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2200
	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2201
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2205
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2206
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2207
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2208
EVR32	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1103
	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1104
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1105
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1106
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1107
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1108
EVR 40	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1109
	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1110
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1111
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1112
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1113
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1114
