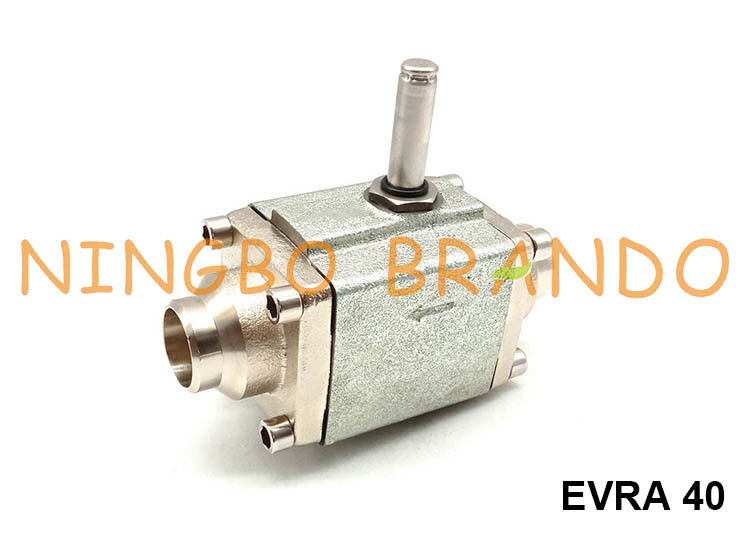

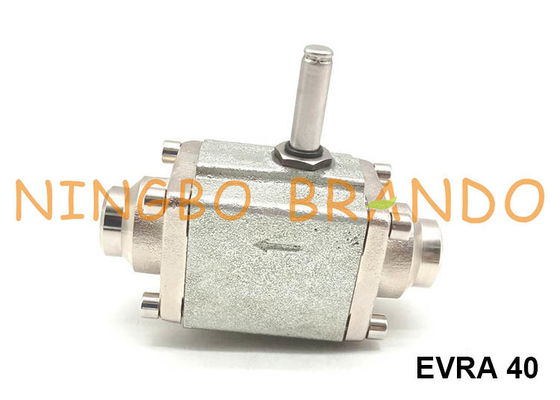

EVRA 40 Danfoss Type Refrigeration Solenoid Valve For Ammonia

EVRA 40 Danfoss Type Refrigeration Solenoid Valve For Ammonia

EVRA 40 Danfoss Type Refrigeration Solenoid Valve For Ammonia
video
EVRA 40 Danfoss Type Refrigeration Solenoid Valve For Ammonia
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: EVRA 40
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 4-7 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: EVRA 40 Ammonia Refrigration Valve Ordering Number: 042H1128, 042H1132, 042H1142, 042H1143
Orifice Size: 40mm Voltages: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Operation: Servo Piston Operated Connection Type: Flange
System Line Application: Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line Application: Ammonia Chiller
High Light:

Danfoss Solenoid Valve

,

Danfoss Refrigeration Solenoid Valve

,

EVR Solenoid Valve

EVRA 40 Danfoss Type Refrigeration Solenoid Valve For Ammonia



The shown is EVRA 40 refrigeration solenoid valve for ammonia, 1 1/2'', 2'' ODF flange port size, Servo Piston Operated, 2 way normally closed, 24V DC, 110V AC, 220V AC, 230V AC voltages (other voltages can be customized), ordering code: 042H1128, 042H1132, 042H1142, 042H1143.



1. Refrigeration Solenoid Valve:
* Danfoss Type: EVR 3, EVR 6, EVR 10, EVR 15, EVR 20, EVR 22, EVR 25, EVR 32, EVR 25, EVRA 25, EVRA 32, EVRA 40;
* Castel Type: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13.


2. Refrigerator Solenoid Valve: FDF, SDF ......


3. Expansion Valve: Thermostatic / Thermal Expansion Valve, Automatic Expansion Valve, Electronic Expansion Valve ......



Data of Danfoss Type Ammonia Refrigeration Valves:

Type
Opening Differntial pressure with standard coil (bar)
Temp of Medium
(℃)
Max.working pressure
(bar)
Kv
(m3/h)
Min
Max.(=MOPD)liquids2)

10W a.c.
12W a.c.
20W d.C.
EVRA 3
0.00
21
25
14
-40 to 105
42
0.23
EVRA 10
0.05
21
25
18
1.5
EVRAT10
0.00
14
21
16
1.5
EVRA 15
0.05
21
25
18
2.7
EVRAT15
0.00
14
21
16
2.7
EVRA 20
0.05
21
25
13
4.5
EVRA 20
0.05
19
21
16
4.5
EVRAT20
0.00
14
21
13
4.5
EVRA 25
0.20
21
25
14
10.0
EVRA 32
0.20
21
25
14
16.0
EVRA 40
0.20
21
25
14
25.0


EVRA is a direct or servo operated solenoid valve for liquid, suction and hot gas lines with ammonia or fluorinated refrigerants. EVRA valves are supplied complete or as separate components, i.e. valve body, coil and flanges can be ordered separately.



EVRA 25, 32 and 40 are servo operated piston valves.The valves are closed with currentless coil.The servo piston with main valve plate closes against the valve seat by means of the differential pressure between inlet and outlet side of the valve, the force of the compression spring and possibly the piston weight. When current to the coil is switched on, the pilot orifice opens. This relieves the pressure on the piston spring side of the valve. The differential pressure will then open the valve. The minimum differential pressure needed for full opening of the valves is 0.2 bar.



Main dimension of EVRA 40 Ammonia Refrigeration Valve:

EVRA 40 Danfoss Type Refrigeration Solenoid Valve For Ammonia 0
