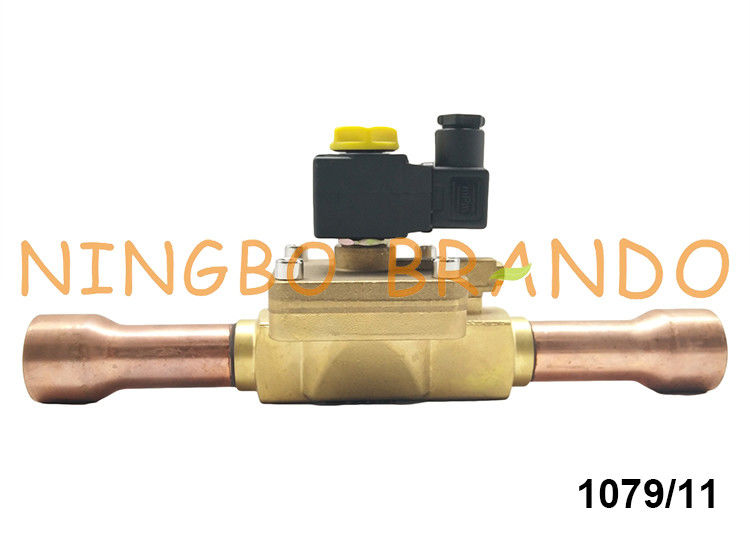

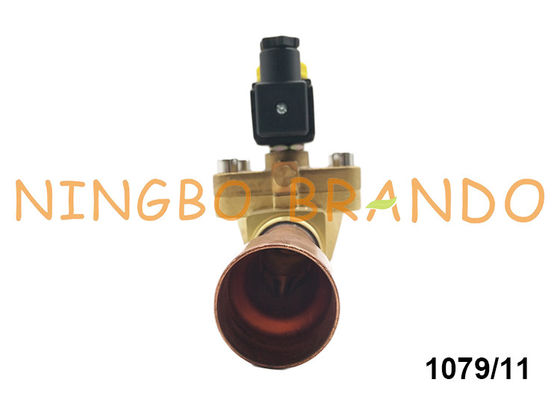

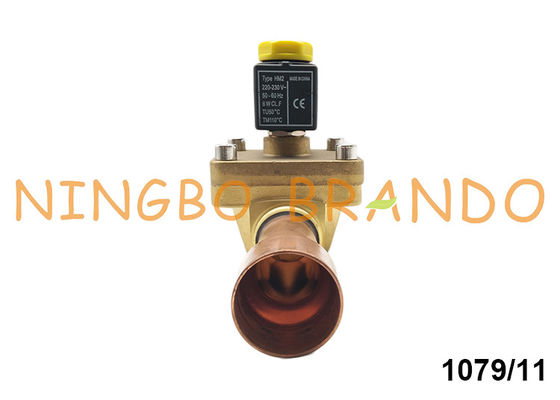

Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve

Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve

  • Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve
  • Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve
  • Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve
Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 1079/11
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1-3/8'' Connection Type: ODS (Solder)
Function: 2 Way Normally Closed (NC) Valve Operation: Diaphragm Pilot Operated
Voltages: AC110V, AC220V, AC230V, Ac240V, DC24V Body Material: Brass
Ambient Temperature: -35 - 105 °C Pressure Range: 0.5 - 25 Bar
Refrigerants: R22, R404A, R407A, R407C, R125, R134a, R152a Application: Chiller, Freezer, Air Conditioner, Cooler, And So On
High Light:

CASTEL Solenoid Valve

,

CASTEL Refrigeration Solenoid Valve

,

Solenoid Valve Castel

Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve



Castel type solenoid valve is consist of Brass body, Stainless Steel plunger armature, coil and other parts.
The valve series 1034 ; 1038 ; 1040 ; 1048 ; 1049 ; 1050 ; 1058 ; 1059 ; 1078 (/11 , /13 , /M42) ; 1079 (/13 , /M42 , /17) ; 1098/9 ; 1099/11 are piston pilot-operated valves. Their operation depends not only on the magnetic field produced by the current flow into the coil, but also on a minimum inlet pressure, which is necessary to:
• open the piston and keep it lifted off the main opening
• close the piston and ensure the tightness on the main opening
Opening/closing of main valve seat is controlled by the piston, while opening/closing of pilot seat is controlled by the mobile plunger of the coil.



Application:



One-way flow fresh air system:
The one-way flow fresh air system is the [forced air exhaust, natural air intake" system. Its working principle is to rely on the suction generated by the main machine to form the indoor negative pressure, and send the dirty air to the outside through the air supply duct, in order to balance the negative pressure in the room. The relatively fresh air outside the room enters the room from the pre-installed air intake to achieve ventilation and ventilation. The one-way flow fresh air system is naturally carried out when entering the wind. The system has few installation pipes and simple installation. It is generally used in residential buildings, apartments or office buildings with high building height.

Full heat exchange fresh air system:
The full heat exchange fresh air system is an upgrade of the two-way flow fresh air system. The main heat recovery system is added to the main engine. The air entering and leaving the air passes through the heat exchanger disposed in the main engine, and the energy exchange of preheating and pre-cooling is performed, and the indoors can be reserved. 70% of the energy of the air, combined with the air conditioner is very energy-saving, even if the temperature difference is large, it will not affect the indoor temperature. The full heat exchange fresh air system is suitable for apartments, villas and office spaces with an area of less than 1000 square meters. The high quality of the fresh air is high and energy efficient. In the installation of the central fresh air system of many villa customers of the company, the whole heat exchange fresh air is adopted. System series.



Dimension:

Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve 0Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve 1Castel Type MSV-1079/11 1 3/8'' ODF Refrigeration Solenoid Valve 2

Model
Connection
Dimension
Coil Type
SAE (Flare), ODF (Solder)
H1
H2
L1
Q
HM2
HM3
1020/2
1/4'' SAE
75
62.5
58
-
1020/3
3/8'' SAE
65
1028/2
1/4'' ODF
32.5
125
1028/3
3/8'' ODF
62.5
125
1064/3
3/8'' SAE
82
69.5
68
1064/4
1/2'' SAE
72
1068/3
3/8'' ODF
111
1068/4
1/2'' ODF
127
1070/4
1/2'' ODF
91
75.0
100
45
1070/5
5/8'' ODF
106
1078/4
1/2'' ODF
127
1078/5
5/8'' ODF
173
1078/9
1 1/8'' ODF
115
96.0
250
80
1078/11
1 3/8'' ODF
172
138.0
278
68
1090/5
5/8'' SAE
106
78.0
120
57
1090/6
3/4'' SAE
106
78.0
124
57
1079/7
7/8'' ODF
91
75.0
190
45
1079/11
1 3/8'' ODF
115
96.0
292
80
1079/13
1 5/8'' ODF
172
138.0
278
68
1098/7
7/8'' ODF
106
78.0
180
57
1099/9
1 1/8'' ODF
106
78.0
216
57
1099/11
1 3/8'' ODF
157
127.0
291
68



Technical Data:

Operating Principles
Model Number
SAE Port
Seat size nominal Ø (mm)
Kv Factor
(m³/h)
PS
(bar)
TS(℃)
TA(℃)
min
max
min
max
Direct Acting
1020/2
1/4''
2, 5
0, 175
45
-35
+110
-35
+50
1020/3
3/8''
3
0, 23
Diaphragm Pilot Operated
1064/3
3/8''
6, 5
0, 80
45
-35
+105
-35
+50
1064/4
1/2''
1070/4
1/2''
12, 5
2, 20
1070/5
5/8''
2, 61
1090/5
5/8''
16, 5
3, 80
1090/6
3/4''
4, 80
Piston Pilot Operated
1034/3
3/8''
6, 5
1, 00
45
-35
+110
-35
+50
1034/4
1/2''
1040/4
1/2''
12, 5
2, 40
1040/5
5/8''
3, 00
1050/5
5/8''
16, 5
3, 80
1050/6
3/4''
4, 80






Installation:
Before connecting the valve to the pipe, it is advisable to make sure that the refrigerating system is clean. In fact, valves with P.T.F.E. gaskets, and particularly piston valves, are sensitive to dirt and debris. Furthermore, check that the flow direction in the pipe corresponds to the arrow stamped on the valve body. All the valves can be mounted in any position so long as the coil does not point downwards. The brazing of valves with solder connections should be carried out with care, using a low melting point filler material. It is not necessary to disassemble the valves before brazing, but it is important to avoid direct contact between the torch flame and the valve body, which could be damaged and compromise the proper functioning of
the valve.
Before connecting a valve to the electrical system, be sure that the line voltage and frequency correspond to the values marked on the coil.
