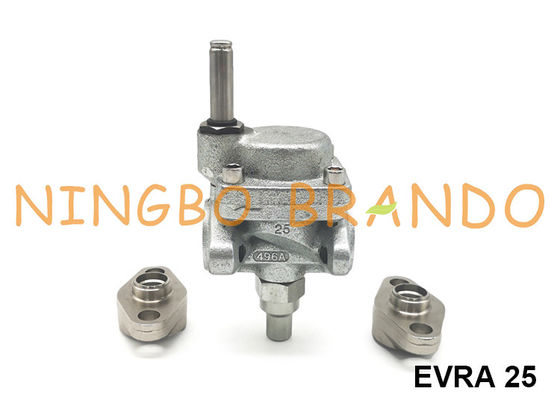

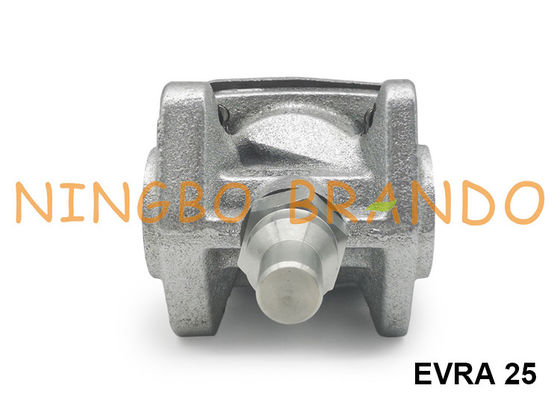

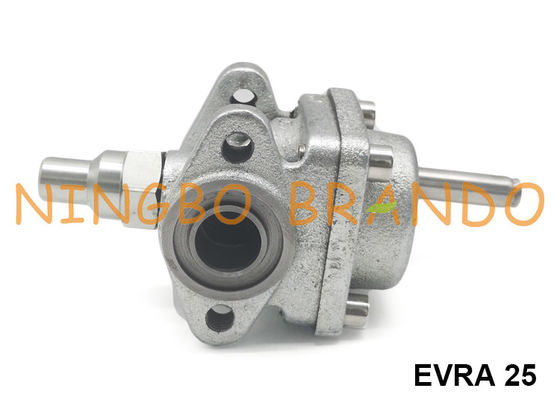

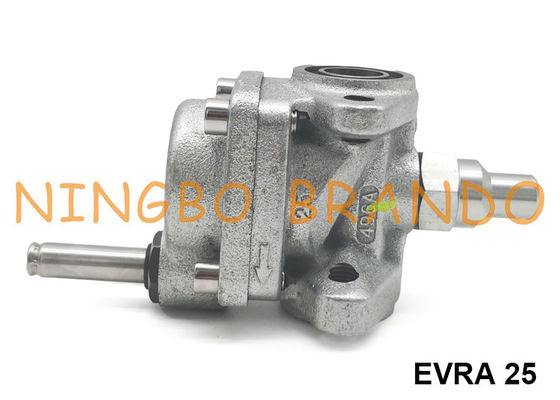

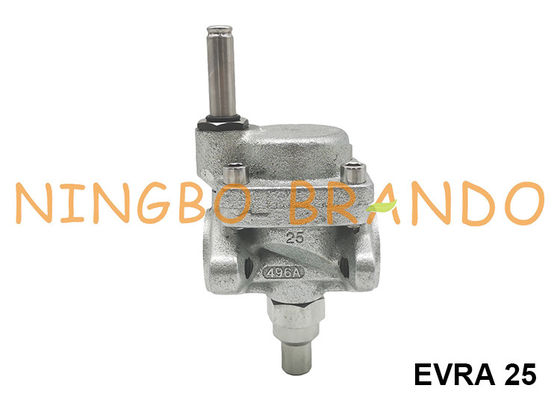

EVRA 25 JS1025 Danfoss Type Ammonia Refrigeration Solenoid Valve 032F6226

EVRA 25 JS1025 Danfoss Type Ammonia Refrigeration Solenoid Valve 032F6226

EVRA 25 JS1025 Danfoss Type Ammonia Refrigeration Solenoid Valve 032F6226
EVRA 25 JS1025 Danfoss Type Ammonia Refrigeration Solenoid Valve 032F6226

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: EVRA 25

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 4-7 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Ammonia Refrigration Valve Ordering Number: EVRA 25, JS1025, 032F6226
Orifice Size: 25mm Voltages: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Operation: Servo Piston Operated Connection Type: Flange
System Line Application: Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line Application: Ammonia Chiller
High Light:

EVRA 25 Solenoid Valve

,

032F6226

,

Ammonia Refrigeration Solenoid Valve

EVRA 25 JS1025 Danfoss Type Ammonia Refrigeration Solenoid Valve 032F6226



EVRA is a direct or servo operated solenoid valve for liquid, suction and hot gas lines with ammonia or fluorinated refrigerants. EVRA valves are supplied complete or as separate components, i.e. valve body, coil and flanges can be ordered separately.



EVRA 25, 32 and 40 are servo operated piston valves.The valves are closed with currentless coil.The servo piston with main valve plate closes against the valve seat by means of the differential pressure between inlet and outlet side of the valve, the force of the compression spring and possibly the piston weight. When current to the coil is switched on, the pilot orifice opens. This relieves the pressure on the piston spring side of the valve. The differential pressure will then open the valve. The minimum differential pressure needed for full opening of the valves is 0.2 bar.



Data of Danfoss Type Ammonia Refrigeration Valves:

Type
Opening Differntial pressure with standard coil (bar)
Temp of Medium
(℃)
Max.working pressure
(bar)
Kv
(m3/h)
Min
Max.(=MOPD)liquids2)

10W a.c.
12W a.c.
20W d.C.
EVRA 3
0.00
21
25
14
-40 to 105
42
0.23
EVRA 10
0.05
21
25
18
1.5
EVRAT10
0.00
14
21
16
1.5
EVRA 15
0.05
21
25
18
2.7
EVRAT15
0.00
14
21
16
2.7
EVRA 20
0.05
21
25
13
4.5
EVRA 20
0.05
19
21
16
4.5
EVRAT20
0.00
14
21
13
4.5
EVRA 25
0.20
21
25
14
10.0
EVRA 32
0.20
21
25
14
16.0
EVRA 40
0.20
21
25
14
25.0



Main dimension of EVRA 25 Ammonia Refrigeration Valve:
