Hydac Type Hydraulic Solenoid Valve Coil 24V DC 19W 3003138 24DK-40-1836

Hydac Type Hydraulic Solenoid Valve Coil 24V DC 19W 3003138 24DK-40-1836

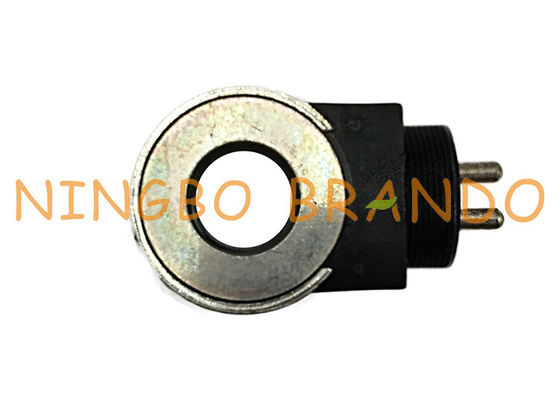

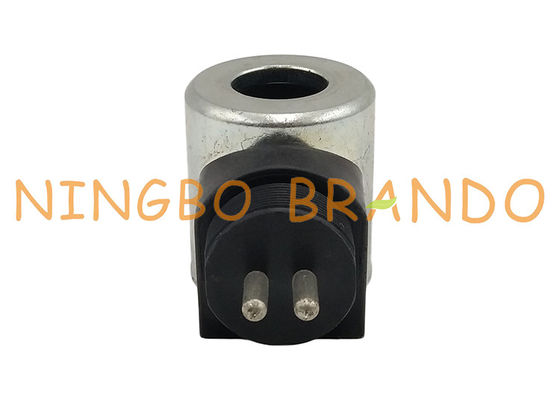

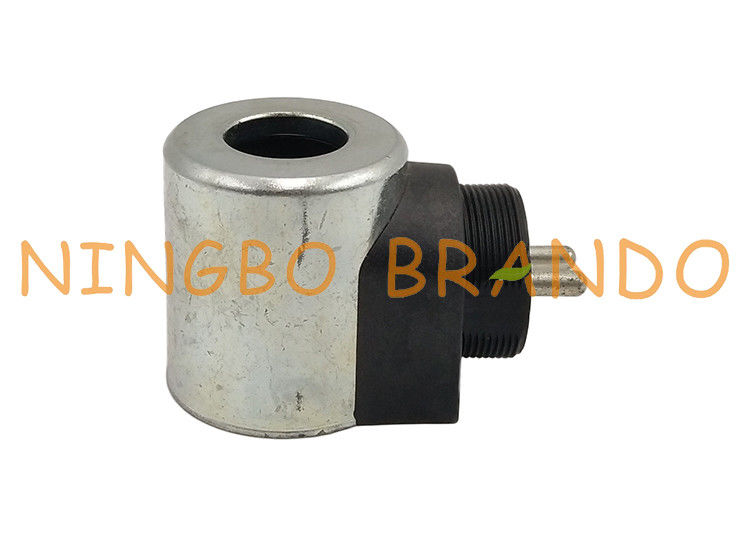

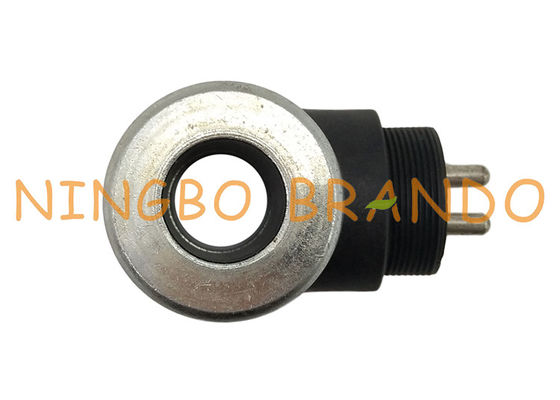

This is a Hydac type hydraulic solenoid coil for hydraulic solenoid valves, coil insulation class is H, coil connector type is KOSTAL, 230V AC, 220V AC, 110V AC, 24V DC, 12V DC voltages, 18W, 19W powers, other voltages and powers can be customized. Reference No: 3000489 12DG-40-1836, 3000249 24DG-40-1836, 3003156 115AG-40-1836, 3002594 230AG-40-1836, 3003133 12DK-40-1836, 3003138 24DK-40-1836, 3002244 12DL-40-1836, 3003119 24DL-40-1836.

Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Technical data of solenoid valve coil:

Main dimension of solenoid valve coil:

Brando factory production of solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
