Home ProductsSolenoid Valve Coil

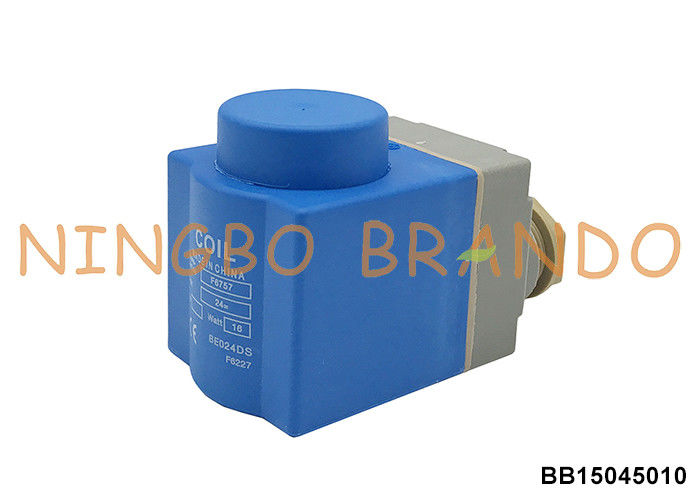

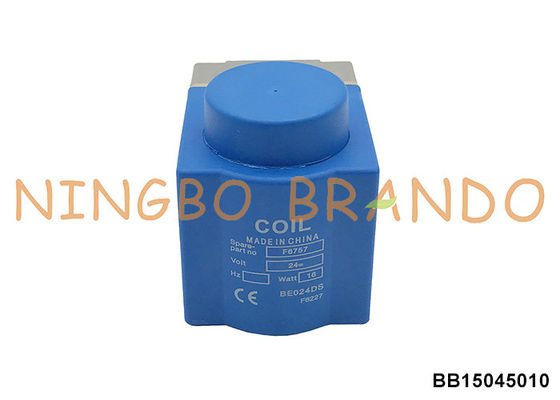

Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757

Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757

    • Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757
    • Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757
    • Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757
    • Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757
  • Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB15045010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 300000 set per month
    Contact Now
    Detailed Product Description
    Product Name: Danfoss Type Solenoid Coil Coil Type: BE-Clip On Version
    Model: BE230CS, BE024DS, BE230AS, BE220BS..... Code No: 018F6757, 018F6732, 018F6701, 018F6714.....
    Connection: Terminal Box Insulation Class: F, H
    Voltage: 24VDC, 12VDC, 230VAC, 220VAC, 115VAC, 110VAC, 48VAC, 24VAC Power: 21VA, 10W, 18W
    Protection Class: IP67 Application Examples: EVR, EVRA Refrigeration Solenoid Valve
    High Light:

    BE230CS

    ,

    Danfoss Type Solenoid Valve Coil

    ,

    21VA Solenoid Valve Coil

    Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757



    This is a solenoid coil for danfoss refrigeration solenoid valve, coil insulation class is F, H, coil connection type is ternimal box, power is 10W, 18W, 21VA, 24VDC, 12VDC, 230VAC, 220VAC, 115VAC, 110VAC, 48VAC, 24VAC (50/60Hz) voltage.



    *Coil Type: BE024AS, BE048AS, BE115AS, BE230AS, BE240AS, BE380AS, BE024BS, BE115BS, BE220BS, BE110CS, BE230CS, BE012DS, BE024DS.



    *Code No: 018F6707, 018F6709, 018F6711, 018F6701, 018F6702, 018F6703, 018F6715, 018F6710, 018F6714, 018F6730, 018F6732, 018F6756, 018F6757.



    Technical data of solenoid valve coil:

    Coil type
    Supply voltage
    Power
    Frequency (Hz)
    Ambient temperature
    Code no.
    BE-coils with terminal box
    BF-coils with cable
    BE024AS
    24V AC









    10W
    21VA







    50







    80
    018F6707
    018F6257
    BE048AS
    48V AC
    018F6709
    018F6259
    BE115AS
    115V AC
    018F6711
    018F6261
    BE230AS
    220-230V AC
    018F6701
    018F6261
    BE240AS
    240V AC
    018F6702
    018F6252
    BE380AS
    380-400V AC
    018F6703
    018F6253
    BE024BS
    24V AC


    60
    018F6715
    018F6265
    BE115BS
    115V AC
    018F6710
    018F6260
    BE220BS
    220V AC
    018F6714
    018F6264
    BE110CS
    110V AC

    50/60


    50
    018F6730
    018F6280
    BE230CS
    230V AC
    018F6732
    018F6282
    BE012DS
    12V DC

    18W

    DC
    018F6756

    BE024DS
    24V DC
    018F6757



    Main dimension of solenoid valve coil:

    Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757 0



    Brando factory production of solenoid valve coil:

    Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757 1



    More Solenoid Valve Coil for you to choose:



    *Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

    photobank (8)photobank (12)photobank (18)photobank (11)



    *Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

    photobank (14)photobank (16)photobank (17)photobank (10)



    *Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

    Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757 10Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757 11Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757 12Danfoss Type Solenoid Valve Coil BE024DS 24V DC 18W 018F6757 13



    Focus on your demands, Offer you best solution:


    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing


    Welcome to your any question and inquiry!
