| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BDF2100F |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Fountain Solenoid Valve | Working Fluids: | Water |
|---|---|---|---|
| Port Size (inch): | 2 1/2'' To 6'' | Orifice Size: | 85mm To 150mm |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) | Operation Mode: | 2/2 Way, Normally Closed |
| Body Material: | Stainless Steel | Seal Material: | NBR, VITON, EPDM |
| Pressure Range: | 0.1MPa To 2.5MPa | Thread Type: | Flanged |
| High Light: | 220VAC Solenoid Valve,IP68 Solenoid Valve |
||

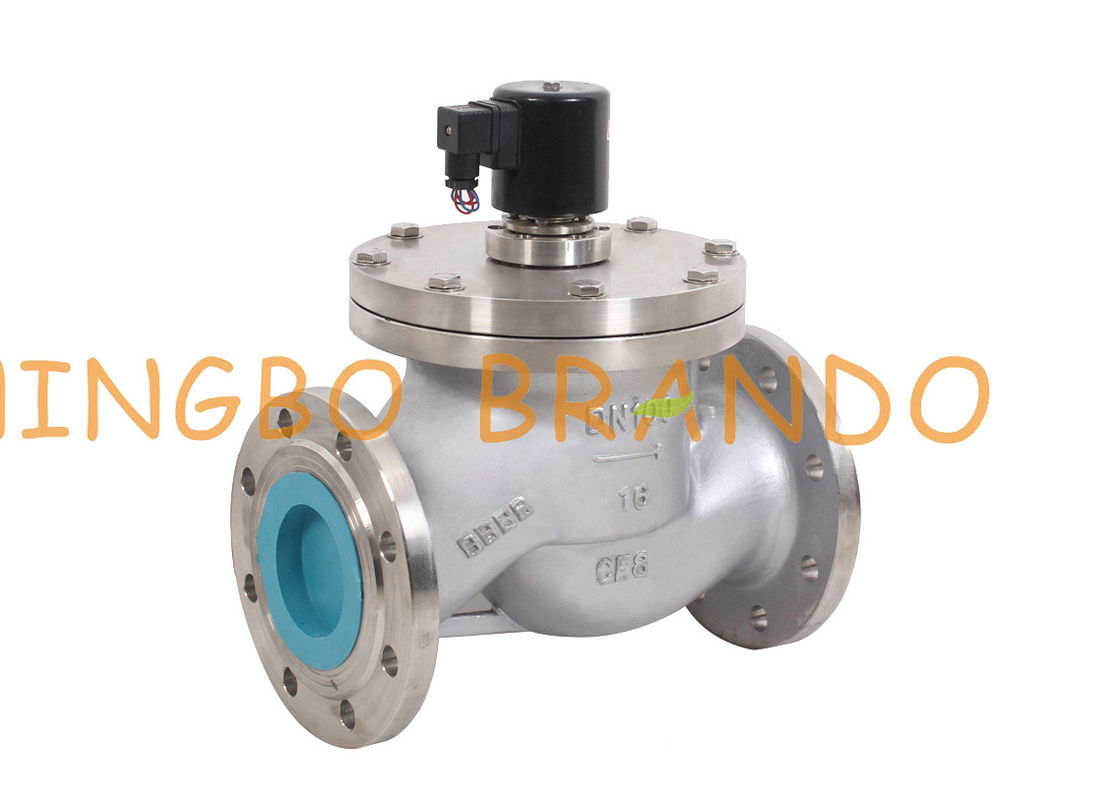

DN100 4'' Underwater Fountain Stainless Steel Solenoid Valve Waterproof IP68 24VDC 220VAC
Product Features:
1. Function: 2 Way, Normally Closed
2. Medium: Water
3. Acting Type: Piston Pilot Operated
4. Operate Pressure: 0.1 to 2.5 MPa
5. Seal Material: NBR for -5∽80℃, Viton for -5∽150℃;
6. Port Size: 2 1/2'', 3'', 4'', 4'', 5'', 6''; Flanged.
7. Solenoid Coil: 12VDC, 24VDC, 24VAC, 120VAC, 240VAC, 110VAC, 220VAC; IP68, ED100%, Waterproof.
8. Application Examples: Musical Fountain, Dancing Fountain, Air Blast Water Fountain, etc.
Main Dimension of Fountain Stainless Steel Solenoid Valve:
| Model | BDF265F | BDF280F | BDF2100F | BDF2125F | BDF2150F |
| L | 290 | 310 | 350 | 400 | 480 |
| D | 185 | 200 | 220 | 250 | 285 |
| D1 | 145 | 160 | 180 | 210 | 240 |
| D2 | 118 | 132 | 156 | 184 | 211 |
| B | 20 | 20 | 22 | 22 | 24 |
| F | 3 | 3 | 3 | 3 | 3 |
| N-φD | 4-φ18 | 8-φ18 | 8-φ18 | 8-φ18 | 8-φ22 |
Technical Data of Fountain Stainless Steel Solenoid Valve:
| Model | BDF265F | BDF280F | BDF2100F | BDF2125F | BDF2150F |
| Port Size (inch) | 2 1/2'' | 3'' | 4'' | 5'' | 6'' |
| Orifice Size (mm) | 65 | 80 | 100 | 122 | 150 |
| CV | 85 | 125 | 160 | 200 | 320 |
| Working Presure Range | 0.1MPa to 2.5MPa | ||||
| Seal Material | NBR, VITON, EPDM | ||||
| Body Material | Stainless Steel | ||||
| Voltages | DC12V, DC24V, AC110V, AC220V | ||||
Brando Factory Production of Solenoid Valves:
As a solenoid valve supplier, BRANDO supplys general purpose solenoid valve for general mediums control. Such as water, air, gas, oil. Offering the cost-effective solution for your projects. Available in brass, stainless steel and PVC material for your projects.
● Size Range: 1/4" to 2" (1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4")
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Pressure: 0-10 bar / 0.3-16 bar
● Temperature: -10℃~180℃
● Material: Brass, Stainless Steel and PVC
● Structure: Direct Acting / Diaphragm / Pilot Operated
● Function: Normally Closed / Normally Open
● Connection Type: Threaded, Flanged, Tri Clamp
● Tolerance: ±10%
More Solenoid Valves for you to choose:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
