| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | SPU225A-06 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | SPU225A Solenoid Valve | Working Fluids: | Water, Light Oil, Compressed Air |
|---|---|---|---|
| Port Size (inch): | 3/8'', 1/2'', 1'', 1 1/4'', 1 1/2'', 2'' | Orifice Size (mm): | 13, 25, 38, 50 |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) | Operation: | Pilot Acting |
| Operation Mode: | 2/2 Way, Normally Closed | Body Material: | Stainless Steel |
| Seal Material: | NBR, VITON, EPDM | Pressure Range: | 0.5 To 15.0 Bar |
| High Light: | Shako Solenoid Valve,Shako Solenoid Valves,Shako Solenoid Valve 220V |
||

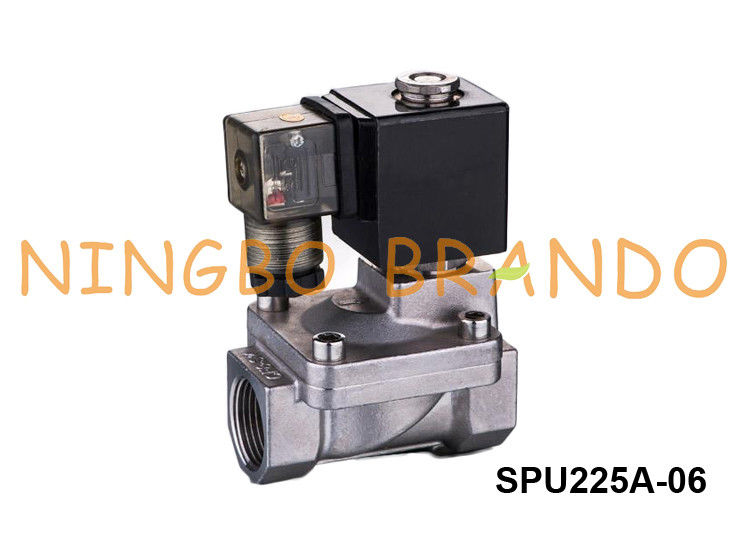

Shako Type Stainless Steel Solenoid Valve 3/4'' SPU225A-06 1'' SPU225A-08 220VAC 24VDC
1. SPU225A Stainless Steel pilot / servo General purpose 2/2 Way normally closed solenoid valve.
2. Port sizes: 3/8" SPU225A-03, 1/2" SPU225A-04, 3/4" SPU225A-06, 1" SPU225A-08, 1 1/4" SPU225A-12, 1 1/2" SPU225A-14, 2" SPU225A-20.
3. Port Options: G, BSP, NPT.
4. Construction: Body die cast stainless steel, stainless steel internals one piece core tube, AISI430F armature and AISI302 springs that extend valve life.
5. Seal options: NBR, EPDM or FKM all metal disc reinforced for longer life.
6. Pressure Range: 0.5 to 10 Bar differential, Max working 15 Bar
7. Voltages: 12VDC, 24VDC, 48VDC, 110VDC, 220VDC or 12VAC, 24VAC, 48VAC, 110VAC, 220VAC, 230VAC, 240VAC.
8. SPU225A solenoid valves are all 15 Bar pressure, function and leak tested prior to despatch.
9. Includes SPU225A-03, SPU225A-04, SPU225A-06, SPU225A-08, SPU225A-12, SPU225A-14 and SPU225A-20.
Main Dimension of SPU225A Series Stainless Steel Solenoid Valve:
Technical Data of SPU225A Series Stainless Steel Solenoid Valve:
| Model | PU225A-03 | PU225A-04 | PU225A-06 | PU225A-08 | PU225A-12 | PU225A-14 | PU225A-20 |
| SPU225A-03 | SPU225A-04 | SPU225A-06 | SPU225A-08 | SPU225A-12 | SPU225A-14 | SPU225A-20 | |
| Working Medium | Compressed Air, Water, Light Oil | ||||||
| Operation | Pilot Acting | ||||||
| Function | 2 Way, Normally Closed | ||||||
| Orifice Size (mm) | 13 | 13 | 25 | 25 | 38 | 38 | 50 |
| Port Size | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass, Stainless Steel | ||||||
| Diaphragm Material | NBR, VITON, EPDM | ||||||
| Working Pressure | 0.5 to 10bar | ||||||
| Max. Pressure Resistance | 15bar | ||||||
| Wokring Temperature | -5 to +80℃ | ||||||
| Voltages | 220VAC, 110VAC, 24VDC, the other voltage is optional | ||||||
Brando Factory Production of Solenoid Valves:
As a solenoid valve supplier, BRANDO supplys general purpose solenoid valve for general mediums control. Such as water, air, gas, oil. Offering the cost-effective solution for your projects. Available in brass, stainless steel and PVC material for your projects.
● Size Range: 1/4" to 2" (1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4")
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Pressure: 0-10 bar / 0.3-16 bar
● Temperature: -10℃~180℃
● Material: Brass, Stainless Steel and PVC
● Structure: Direct Acting / Diaphragm / Pilot Operated
● Function: Normally Closed / Normally Open
● Connection Type: Threaded, Flanged, Tri Clamp
● Tolerance: ±10%
