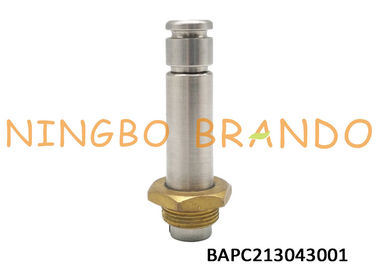

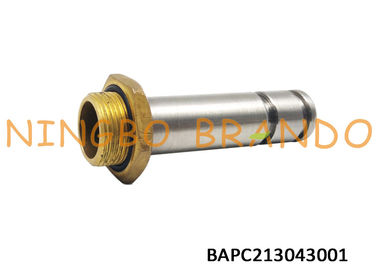

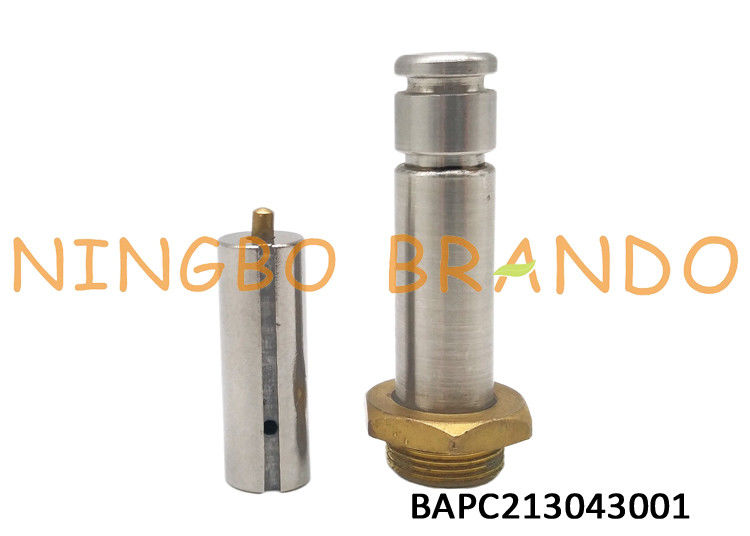

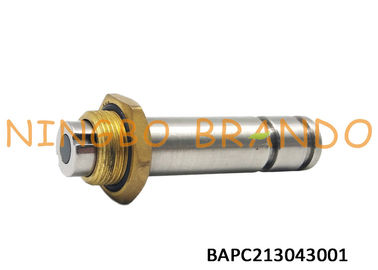

2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve

2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve

    • 2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve
    • 2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve
    • 2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve
    • 2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve
    • 2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve
  • 2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BAPC213043001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Type: Fittings Guide Tube Outer Diameter: 12.9mm
    Installation Height For Coil Assembling: 41.2mm Plunger Seal For Orifice Diameter: 6.2mm
    Guide Tube Material: Stainless Steel Seal Material: NBR
    Mounting Type: M16 Thread Voltage: AC, DC All Available
    Application: 0927 Solenoid Valve, Pulse Jet Valve

    2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve

    This High quality solenoid valve armature plunger tube assembly core spare parts for solenoid valve stem, For 2/2 Way Solenoid Valve. It use stainless steel seat or brass seat. And the armature/stem have two grooves which to assembly with the solenoid coil or other parts as a connection.The upper groove was used for install rubber such as PTFE,VITON or NBR to improve the sealing ability.O-Ring seal have embed in the pentagon seat.O-Ring is used for sealing the liquid of the media.Because the embed O-Ring,so Improving the sealing property. plunger have a different spring design.Its spring is connected with a brass pin.With the brass pin,this design could create a powerful magnetic field in the valve when energized.



    Type:Fittings
    Guide Tube Outer Diameter:12.9mm
    Installation Height for Coil Assembling:41.2mm
    Plunger Seal for Orifice Diameter:6.2mm
    Guide Tube Material:Stainless Steel
    Seal Material:NBR
    Mounting Type:M16 Thread
    Voltage:AC, DC All Available
    Position and Way:2/2 Way
    Non-working Status:Normally Close
    Application:0927 Solenoid Valve, Pulse Jet Valve





    Dimension:

    Dimension

    Technical Data:

    Model Number
    BAPC213043001
    Guide Tube Outer Diameter
    12.9mm
    Installation Height for Coil Assembling
    41.2mm
    Plunger Seal for Orifice Diameter
    6.2mm
    Guide Tube Material
    Stainless Steel
    Seal Material
    NBR, HNBR, FKM, EPDM, Silicone, all available
    Connection Type
    M16 Thread
    Voltage
    All range of AC and DC available
    Position and Way
    2/2 Way
    Non-working Status
    Normally Closed
    Applicaiton Examples
    0927 Solenoid Valve, Pulse Jet Valve
    Customized Service
    Provided, welcome show us sample or drawing



    Application Example:

    2/2 Way Normally Closed Solenoid Stem Stainless Steel Plunger Tube Assembly For Pulse Valve





    Product Features:

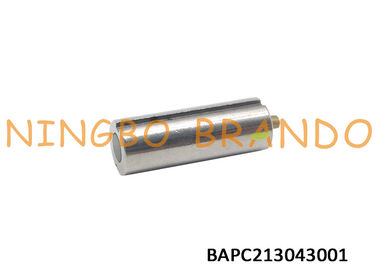

    1. Fixed core and movable core (plunger):
    Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
    2. Guide tube (plunger tube):
    Options of brass and stainless steel, grade of H62 or SUS304;
    Wall thickness from range of 0.25~2.5mm, others could be customized;
    Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
    3. Spring:
    Rustproof SUS304 stainless steel, with good performance of restore.
    4. Seals:
    Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
    5 Shading ring:
    Cooper and silver material available.
    6. Washer and retaining nut provided if has demands.



    Focus on your demands, Offer you best solution:
    √ Contact us if some points you have doubt
    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for
    √ Contact us if you are doing designing


    Welcome to your any question and inquiry!
