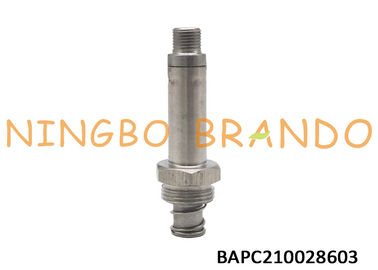

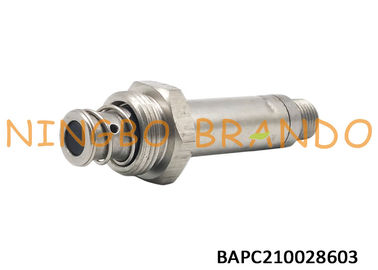

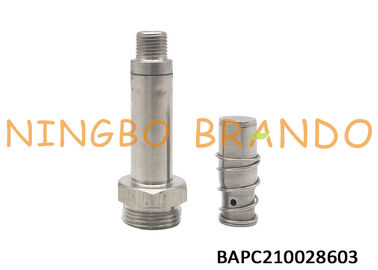

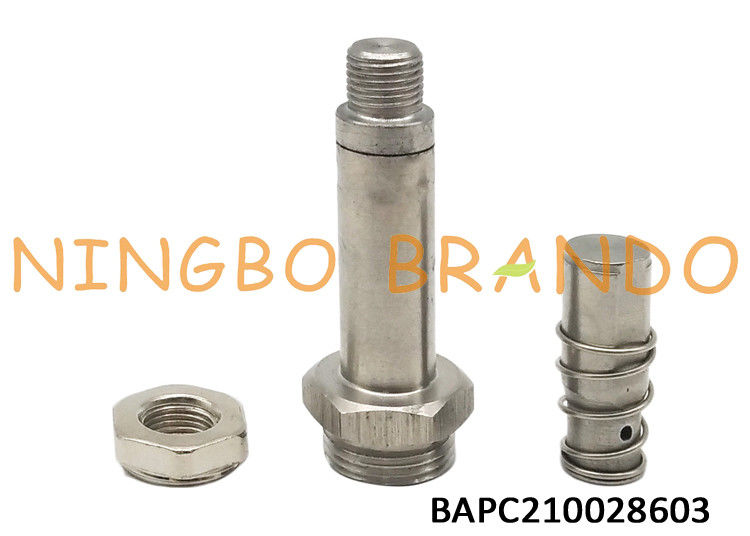

Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve

Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve

    • Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve
    • Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve
    • Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve
    • Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve
  • Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BAPC210028603

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Function: Normally Closed (NC) Plunger Material: Stainless Steel 430FR
    Type: 2/2 Way Plunger Tube OD For Coil: φ10.0mm
    Plunger Tube Material: Stainless Steel 304 Seal Material: NBR (Common), VITON (Available)
    Plunger Tube Heigh For Coil: 28.5mm Applicable Valves: FP, DP, EP, SQP, FDP Series Pulse Valve

    Turbo Type GPC 10 Solenoid Pulse Valve Plunger Assembly For FP/DP/EP/SQP/FDP Series Pulse Valve

    The electro-magnetic pulse diaphragm valve is composed of two gas cells. When the compressed air is connected, it comes into the back gas cell through the orifice. The pressure in the back gas cell pushes the diaphragm closely against the outlet of the valve and the electro-magnetic valve stays in the "closed" condition. The electrical signals from the pulse jet control device move the armature of the electro-magnetic pulse valve. The air escape of the back gas cell opens and the back gas cell loses pressure quickly, thus the diaphragm moves back and the compressed air blows through the valve outlet. The electro-magnetic pulse valve comes into the "open" condition. When the electrical signals from the pulse jet control device disappear, the armature of the electro-magnetic pulse valve returns to its original position. The air escape of the back gas cell closes and the pressure in the back gas cell rises, which pushes the diaphragm closely against the valve outlet. The electro-magnetic valve comes into its "closed" condition again.

    Guide Tube Outer Diameter: 10.0mm
    Installation Height for Coil Assembling: 28.5mm
    Plunger Seal for Orifice Diameter: 5.4mm
    Core Tube Material: Stainless Steel
    Seal Material: NBR
    Mounting Type: Thread
    Voltage: AC, DC All Available
    Position and Way: 2/2 Way
    Non-working Status:Normally Closed
    Application:FP, DP, EP, SQP, FDP Series Pulse Valve



    Dimension:

    Dimension

    Specification:

    Model Number
    BAPC210028603
    Guide Tube Outer Diameter
    10.0mm
    Installation Height for Coil Assembling
    28.5mm
    Plunger Seal for Orifice Diameter
    5.4mm
    Guide Tube Material
    Stainless Steel
    Seal Material
    NBR, HNBR, FKM, EPDM, Silicone, all available
    Voltage
    All range of AC and DC available
    Position and Way
    2/2 Way
    Non-working Status
    Normally Closed
    Application Examples
    FP, DP, EP, SQP, FDP Series Pulse Valve
    Customized Service
    Provided, welcome show us sample or drawing



    GPC 10 Armature Assembly Application of Turbo Type Pulse Valve:

    1 (2)1 (1)1 (3)

    Product Features:
    1. Fixed core and movable core (plunger):
    Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
    2. Guide tube (plunger tube):
    Options of brass and stainless steel, grade of H62 or SUS304;
    Wall thickness from range of 0.25~2.5mm, others could be customized;
    Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
    3. Spring:
    Rustproof SUS304 stainless steel, with good performance of restore.
    4. Seals:
    Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
    5 Shading ring:
    Cooper and silver material available.
    6. Washer and retaining nut provided if has demands.


    Focus on your demands, Offer you best solution:
    √ Contact us if some points you have doubt
    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for
    √ Contact us if you are doing designing
    Welcome to your any question and inquiry!
