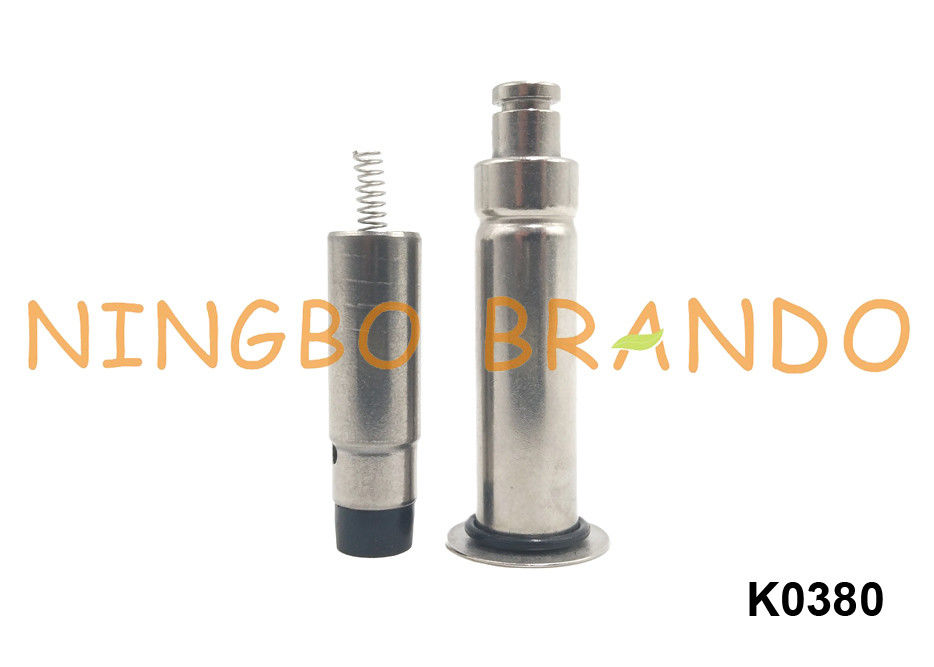

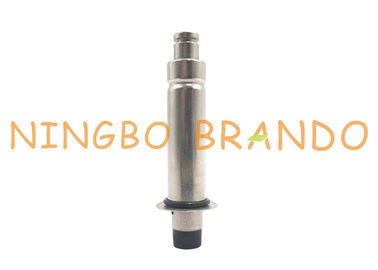

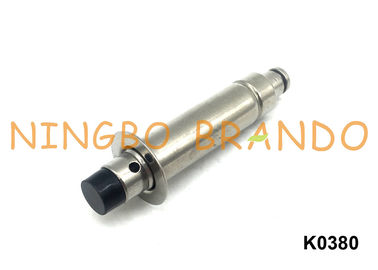

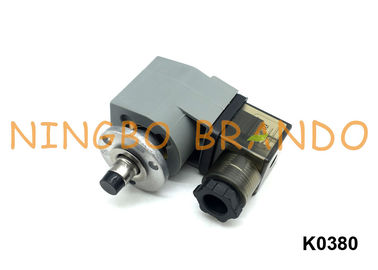

Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B

Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B

Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B
Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC212050501

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pieces per month
Contact Now
Detailed Product Description
Product Name: K0380 M1131B Goyen Type Diaphragm Valve Repair Kit Plunger Tube Outer Diameter: φ11.9mm
Installation Height For Coil Assembling: φ48.6mm Core Seal For Orifice Diameter: φ8.6mm
Plunger Tube Material: Stainless Steel Seals Material: Nitrile (Common), VITON (Available)
Position & Way: 2/2 Way Non-working Status: Normally Closed (NC)
Shading Ring Material: Copper Application: Goyen Type CA Series Diaphragm Valve, RCA3D Pilot Valve
High Light:

solenoid valve stem

,

stainless steel valve stems

Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B



Brando can provide replacement diaphragm valves for any application. We also provide the solenoid repair kits for these valves. Also known as rebuild kits, solenoid repair kits can return your diaphragm valve back to peak performance.



We stock and supply a wide range of brand name diaphragm valve replacements such as: Goyen, Mecair, Turbo, Taeha, Asco, Joil, Norgren, and so on. We offer same-day or expedited shipping on a large selection of in-stock diaphragm valves and repair kits. Our wide range of in-stock repair kits come in options such as Buna, Nylon, Silicone, and Viton in the most common size dimensions available.



YouTube video of K0380 M1131B Goyen Type Solenoid Valve Rebuild Kit:



Main dimension of K0380 M1131B Goyen Type Solenoid Valve Repair Kit:

Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B 0

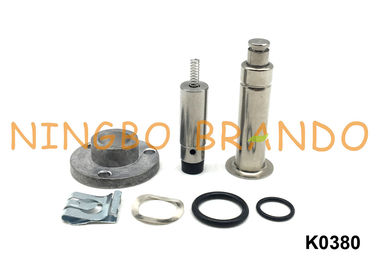

Product details of K0380 M1131B Goyen Type Diaphragm Valve Repair Kit:

Goyen Type CA Series Diaphragm Valve Replacement Repair Kit K0380 M1131B K0384 M1141B 1



Technical data of K0380 M1131B Solenoid Pilot Operator Repair Kit:

Model Number

K0380 M1131B (NBR),

K0384 M1141B (VITON)

Plunger Tube Outer Diameter 11.9mm
Installation Height For Coil 48.6mm
Plunger Seal Diameter For Orifice 8.6mm
Mounting Type Flange
Function 2/2 Way, Normally Closed
Plunger Tube Material Stainless Steel
Shading Ring Material Copper
Voltage All range of AC and DC available
Application Goyen Type CA Series Diaphragm Valve, RCA3D Pilot Valve

Tips: We also supply related Pulse Controller, Diaphragm and Solenoid Coil.



Factory Production of Solenoid Valve Repair Kit Armature Assembly:



Brando's Armature Assembly Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
*Options of brass and stainless steel, grade of H62 or SUS304;
*Wall thickness from range of 0.25~2.5mm, others could be customized;
*Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
