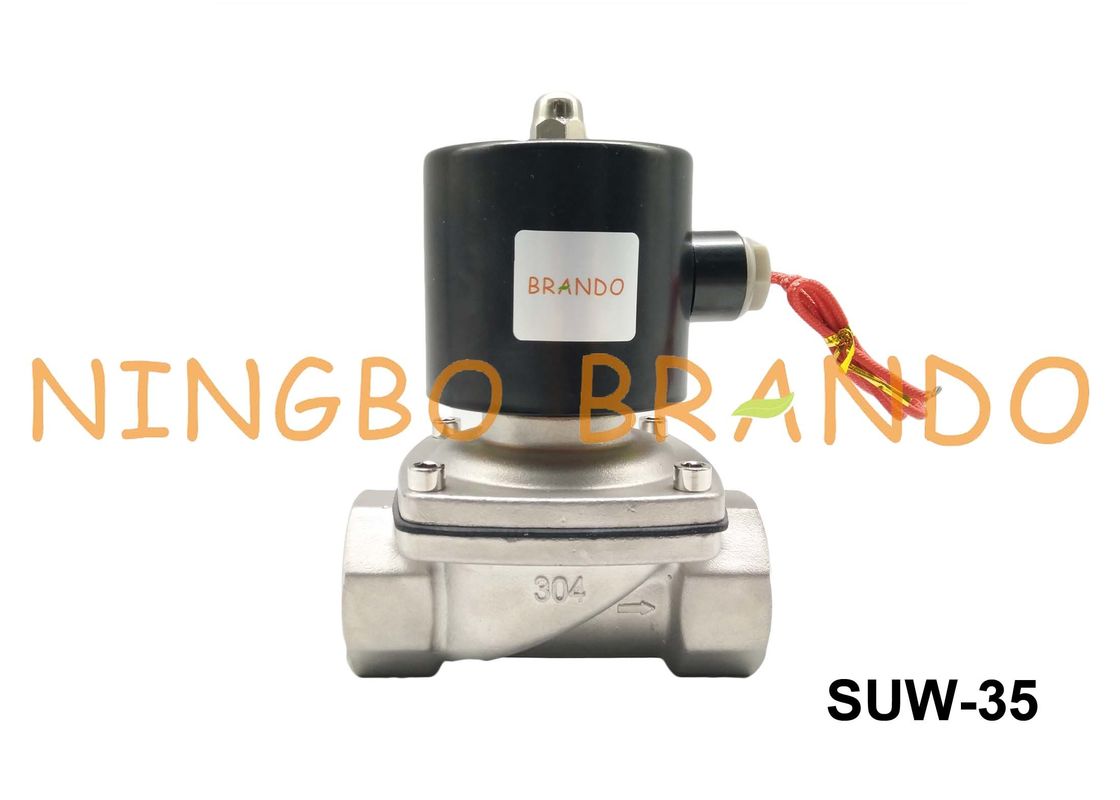

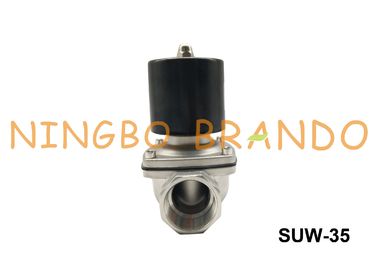

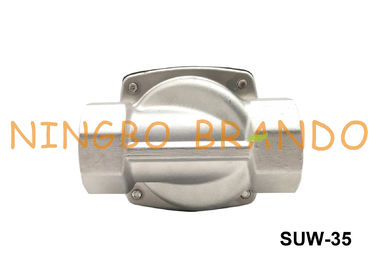

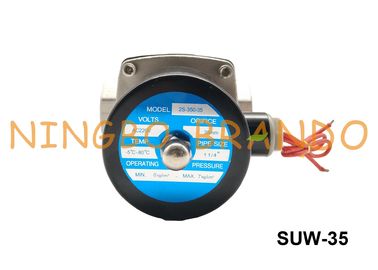

1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V

1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V

  • 1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V
  • 1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V
  • 1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V
  • 1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V
1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: SUW-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $4 to $10 per pc
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150000 pcs per month
Contact Now
Detailed Product Description
Product Name: SUW-35 UNID Type Solenoid Valve Pipe Size: 1-1/4''
Connection Type: Female Threaded (G, NPT, BSP, PT) Voltages: AC220V, AC110V, DC24V
Valve Body Material: Stainless Steel 304 Diaphragm Material: Nitrile/NBR/Buna
Operation: Direct Lifting Diaphragm Function: 2-Way Normally Closed
Temp Range: -5°C To +80°C Pressure Range: 0 To 5bar (Water & Oil), 0 To 7bar (Air)
High Light:

Stainless Steel 304 Solenoid Valve

,

2 Way SS Solenoid Valve

,

Water Treatment Solenoid Valve

1 1/4'' 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V



The 2S350-35/SUW-35 is one of our biggest stainless steel valves we currently offer. This valve is a two-way, semi-direct lift valve that operates in a normally closed position. This means that there are two ports in which media flows and the valve will open when the coil is energized to allow media to pass through. Removing the energy from the valve coil will close it and stop the flow. It works across various media such as hot water, air, gas, diesel fuel, Freon, weak acids and weak alkali. The valve features a heavy duty, solid stainless steel body that’s sure to last in the most strenuous projects.


The port size is 1-1/4” inch female threaded. This Solenoid Valve can handle low viscosity fluids below 20 cst. The orifice size is 35mm and the CV value is 24. It requires little to no pressure to function but can withstand pressure up to 7 bar and temperatures as low as -5℃ and as high as +80℃. The seal material is NBR/Nitrile. This valve works in one direction and will not prevent media from moving backwards in the opposite direction.



Customers commonly use the 2S350-35/SUW-35 Valve for Irrigation, Fountains, Solar Heating, Automotive, Beer Brewing, Hydroponics, HVAC, and Plumbing and everywhere else you can think of installing a 1-1/4'' Inch Valve.



YouTube Video of 1 1/4'' Direct Lifting Diaphragm Uni-D Type Solenoid Valve:



Overall dimension of 1-1/4'' 2S350-35 SUW-35 Stainless Steel Solenoid Valve:

1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V 0



Technical data of 2S, SUS & SUW Series Normally Closed Solenoid Valve:

2S Series Uni-D Type PIPE SIZE CV ORIFICE FLUID TEMP. (°C)

Operating Pressure

kgf/ cm² (bar)

Water Air Light oil
2S025-06 SUS-6 1/8'' 0.23 2.5mm -5°C- +80°C 0-7 0-7 0-7
2S025-08 SUS-8 1/4'' 0.23 2.5mm -5°C- +80°C 0-7 0-7 0-7
2S040-10 SUS-10 3/8'' 0.58 4mm -5°C- +80°C 0-7 0-7 0-7
2S160-10 SUW-10 3/8" 4.5 15mm -5°C- +80°C 0-5 0-7 0-5
2S160-15 SUW-15 1/2'' 4.5 15mm -5°C - +80°C 0-5 0-7 0-5
2S200-20 SUW-20 3/4" 8.6 20mm -5°C- +80°C 0-5 0-7 0-5
2S250-25 SUW-25 1" 12 25mm -5°C- +80°C 0-5 0-7 0-5
2S350-35 SUW-35 1-1/4" 24 35mm -5°C- +80°C 0-5 0-7 0-5
2S400-40 SUW-40 1-1/2" 28 40mm -5°C - +80°C 0-5 0-7 0-5
2S500-50 SUW-50 2" 48 50mm -5°C - +80°C 0-5 0-7 0-5



Details of SUW-35 Direct Lifting NBR Diaphragm UNI-D Type Solenoid Valve:

1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V 1



Application examples of Stainless Steel 304 2 Way Solenoid Water Valve:

1 1/4" 2S350-35 SUW-35 NC Uni-D Type Solenoid Valve Stainless Steel Body NBR Diaphragm AC220V DC24V 2



Safety Note:

Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil body. The coil temperature may rise significantly if energized for extended periods—this is normal. Although the coil is made of flame retardant material, misuse of the coil could create fire hazards & generate smoke and/or a burning odor. If these conditions are encountered, the coil temperature has risen above safe levels and the power should be disconnected immediately.

Operation:

This valve is a two-way, normally closed, direct-lift valve & does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized the plunger & flexible diaphragm sit on the main valve orifice. The working medium flows through a tiny “bleed orifice” and pressurizes the cavity above the diaphragm — this system pressure, along with the spring force, seals the valve. When the valve is energized the diaphragm is pulled away from the main orifice, allowing fluid to flow through the valve. Since the bleed orifice is dimensionally smaller than the main orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the main orifice remains open.
