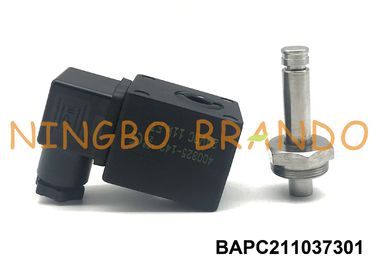

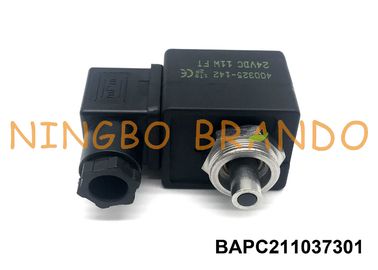

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve

  • K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve
  • K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve
  • K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve
  • K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve
K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC211037301
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Product Name: K0850 ASCO Type Solenoid Valve Rebuild Kit Applicable Valve Model: SCG353A043, SCG353A044
Type: 2/2 Way Function: Normally Closed (NC)
Connection: Threaded Core Tube Material: 304 Stainless Steel
Core Material: Stainless Steel 430FR Suitable Coil Hole Diameter: φ11mm
Suitable Coil Height: 31mm Inlet Orifice Max: 6mm
High Light:

solenoid valve stem

,

stainless steel valve stems

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve

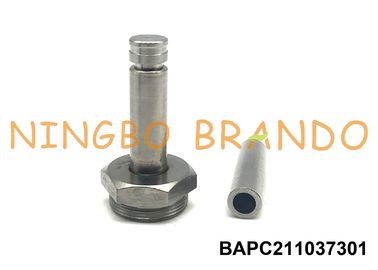

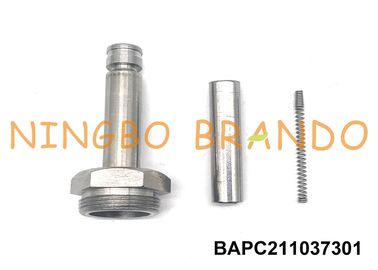

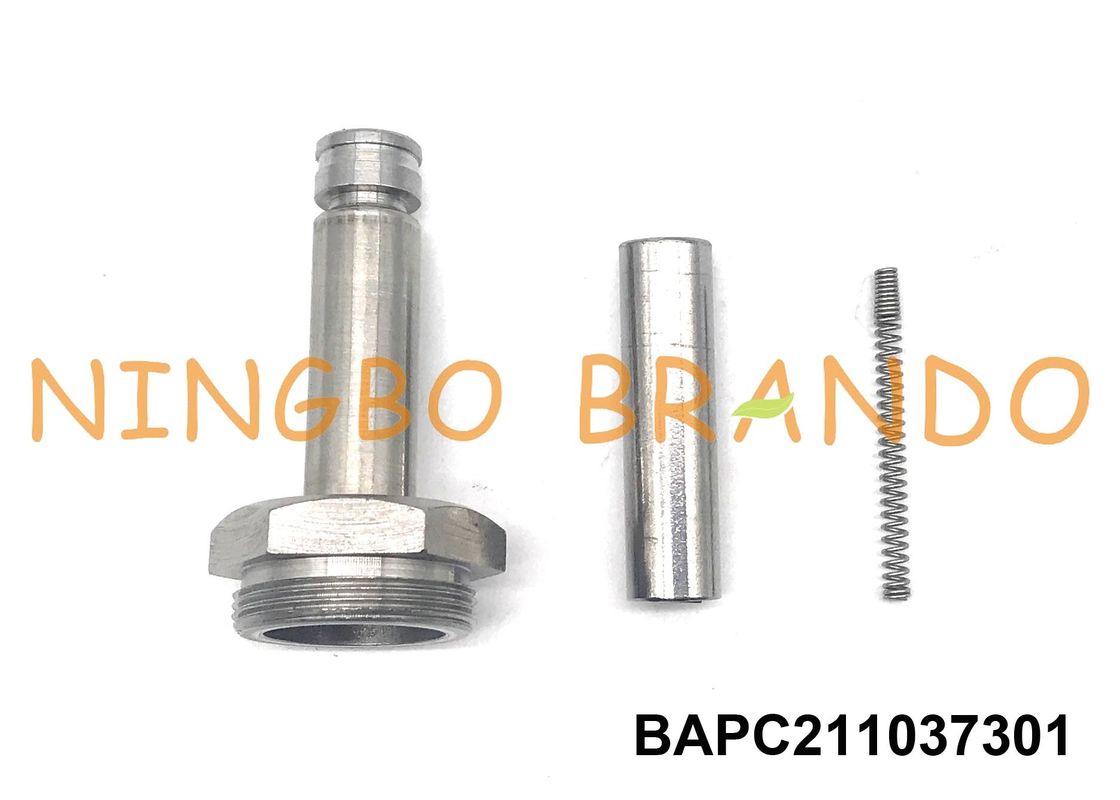

Description of K0850 Asco Type Solenoid Armature Assembly:

This K0850 Asco Type Solenoid Armature Assembly is used in SCG353A043, SCG353A044 asco type dust collector pulse solenoid valve, suitable for 400325642, 400325101, 400325118 solenoid coils.


1. The static iron core is made of high magnetic permeability, low remanence, anti-rust and anti-corrosion materials, durable and responsive.
2. The magnetic isolation tube is made of H62 copper tube or 304 stainless steel seamless tube. The thickness of the tube wall is from 0.25 to 2.5.
3. The magnetic isolation tube seat is made of H59 copper or 304 stainless steel.
4. Laser welding technology is used to make the product connection more perfect and safer.
5. The spring material is made of imported stainless steel spring special steel wire with stable pressure and good recovery performance.
6. Sealing materials can be selected according to your different requirements, such as temperature resistance, oil resistance and food grade.
7. Specifications are normally open, normally closed, AC, DC, etc. If you have special requirements, please contact us.



Technical parameter of C113444 K0850 Asco Type Solenoid Armature Assembly:

Model number BAPC211037301
Ref numbers K0850
Type 2/2 Way
Function Normally Closed (NC)
Core tube material 304 Stainless steel
Moving core material Stainless steel 430FR
Sealing material NBR (Common), VITON (Available)
Suitable Coil Hole Diameter φ11mm
Suitable Coil Height 31mm
Inlet orifice max 6mm
Voltage DC, AC
Connection Threaded
Applicable Valve Model SCG353A043, SCG353A044



ASCO type dust collector pulse valve repair kits and coils comparison table:

Valve Repair Kits Coils
AC DC 24VDC 24 VAC 110VAC 220VAC
SCG353A043 C113444 C113444 400325642 400325101 400325118 400325118
ACG353AD44 C113444 C113444 400325642 400325101 400325118 400325118
ACG353052 C113444 C113444 400325642 400325101 400325118 400325118
SCG353053 C113444 C113444 400325642 400325101 400325118 400325118
SCG353AD47 C113827 C113827 400425342 400425101 400425118 400425117
SCG353050 C113685 C113686 400425342 400425101 400425118 400425117
SCG353051 C113685 C113686 400425342 400425101 400425118 400425117
SCG353060 C123432 C123433 400425342 400425101 400425118 400425117
SCG353AD65 C113827 C113827 400425342 400425101 400425118 400425117

Tips: The valves mentioned, related diaphragms and solenoid coils are all supplied.



Main dimension & location of K0850 Asco Type Solenoid Armature Assembly:

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve 0                 K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve 1



Details display of ASCO type K0850 Solenoid Armature Assembly:

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve 2



Installation of ASCO type K0850 Solenoid Armature Assembly:

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve 3



φ14mm & φ11mm two sizes of asco type solenoid armature assembly​ for you to choose:

K0850 ASCO Type Solenoid Valve Rebuild Kit For 3/4'' SCG353A043 1'' SCG353A044 Pulse Valve 4



More details about K0850 Asco Type Solenoid Armature Assembly in below Youtube Video:



Common problems about C113444 K0850 Asco Type Solenoid Armature Assembly:
Question 1: Why does the core of the armature assembly have abnormal noise?
Answer: Most of the cores have abnormal sounds in the AC armature assembly. Because the static iron core of the AC armature assembly must be inserted into the split ring, the hum can be eliminated.


Question 2: Why does the AC's armature assembly have a magnetic ring?
Answer: It is possible that the magnetic ring is damaged and there is a phenomenon of humming.



Electromagnetic pulse valve common fault:

The electromagnetic pulse valve occupies a large role in the bag filter. It is the “switch” of the blowing air path of the pulse bag type dust collector cleaning system, and is controlled by the electric control device to perform pulsating “impulse” blowing and cleaning. High-quality electromagnetic pulse valve can ensure the normal operation of the bag filter. So what are the common faults of electromagnetic pulse valves?

1. The electromagnetic pulse valve inputs the electric signal, the pilot head does not move, the diaphragm does not move, and the valve does not work. The reason is that the line is not connected; the voltage is too low; due to improper installation on site, the pilot head is stuck.


2. The electromagnetic pulse valve inputs the electric signal, the pilot head moves in the original position, and the pulse valve cannot be blown. The reason is that the unloading hole has poor blocking and exhausting, and the first moving column has a card phenomenon.


3. The electromagnetic pulse valve inputs an electric signal, the diaphragm jumps in place, and the pulse valve cannot be blown. The reason is that the first moving column is beating, the large diaphragm damping hole becomes larger, the damping effect becomes smaller; the small diaphragm damping hole is blocked, and the unloading and exhausting is not smooth.


4. The electromagnetic pulse valve electrical signal disappears and the pilot head moving column cannot be reset. The reason is that there are burrs or impurities, which cause the moving column to be stuck; the spring is fatigued, the elastic force is insufficient; the damping hole is blocked, the pressure gas is too late or the air pressure is low.


Welcome to your any question and inquiry!
