| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DIN43650C |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 1000000 pcs per month |
| Product Name: | DIN 43650 Connector | DIN 43650 Type: | DIN43650C |
|---|---|---|---|
| Protection Class: | IP65 | Pole Format: | 2+1GND, 3+1GND |
| Distance: | 9.4mm | Contact Resistance: | ≤5mΩ |
| Current Rating: | 10A | Working Voltage: | AC380V, DC300V |
| Max Conductor Section: | 3x0.75mm² | Fixing Screw: | M3x25 |
| High Light: | DIN 43650 Type C Connector,Solenoid Valve Plug Connector,Solenoid Valve Electrical Connector |
||

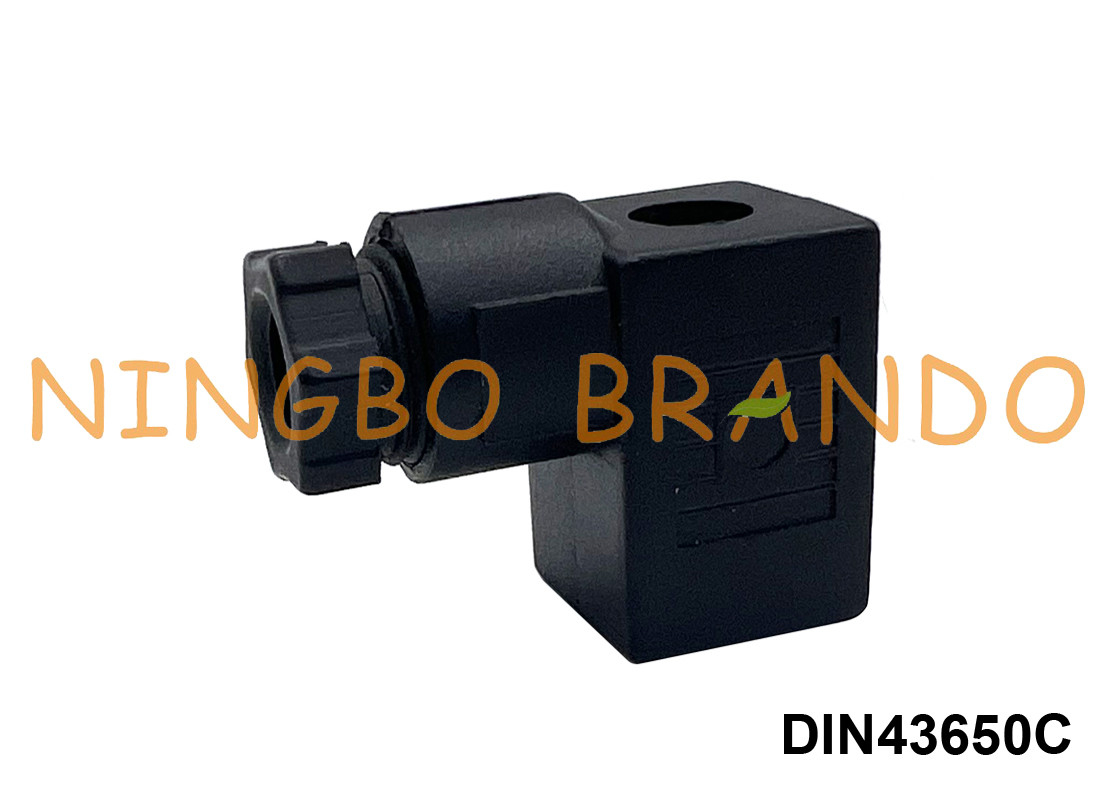

DIN 43650 Type C Solenoid Valve Coil Plug Connector IP65 DIN43650C
BRANDO manufactures an extensive and comprehensive range of internal- and external-thread connectors conforming to industry standard EN 175301-803 (formerly DIN 43650). Standard options include LED illuminated devices as well as VDR, diodes or transil diodes (with or without illuminated device) to offer protection against overvoltage peaks. DIN 43650 connectors offer protection from dust and water when correctly installed with screw and gasket which are supplied together with the connector.
BRANDO’s field-attachable, external-nut design is mechanically superior to traditional internal-nut DIN valve connectors, achieving greater cable retention and improved sealing to IP67. Standard internal thread DIN valve connectors are IP65 rated and available with different thread style, gaskets and circuitry options.
Technical Data of DIN43650C Solenoid Valve Connector:
|
DIN 43650 Type
|
DIN 43650 Form C
|
|
Termination Method
|
Screw
|
|
Contact Spacing
|
9.4mm
|
|
Number of Poles
|
2 Poles + Ground, 3 Poles + Ground
|
|
Current Rating
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Fixing Screw
|
M3x25mm
|
|
Max Conductor Size
|
3x0.75mm²
|
|
Gasket
|
NBR
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V
|
Dimension of DIN43650C Solenoid Coil Connector:
Product Video of DIN43650C Solenoid Valve Connetor:
More Solenoid Valve Coil Connectors for you to choose:
|
|
|
| DIN43650A | DIN43650B | DIN43650C |
|
|
|
| Waterproof | With Cable | Other |
