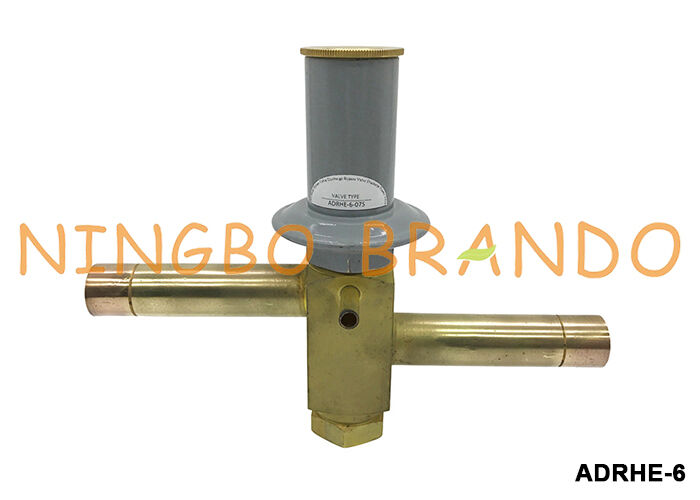

Name: ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30
Brand: Ningbo Brando Hardware Co., Ltd
SKU: ADRHE-6
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	ADRHE-6

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Hot Gas Bypass Valve	Connection Size:	5/8'', 7/8'', 1-1/8'' (ODF)
External Equalizer Connection:	1/4'' (ODF)	Equalization:	Externally Equalized
Refrigerant:	R134a, R401A, R22, R402A, R404A, R407C, R507	Adjustment Range:	0/30, 0/80 (psig)
Highlight:	Sporlan Hot Gas Bypass Valve , Discharge Hot Gas Bypass Valve , Sporlan ADRHE-6

ADRHE-6 Sporlan Type Hot Gas Bypass Valve

The primary function of ADR discharge hot gas bypass valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.

Technical Data:

Model No	Valve Type	Equalized Size	Inlet & Outlet Size	Adjustment Range (psig)	Standard Setting (psig)
ADRSE-2	Externally Equalized	1/4'' ODF	3/8'' ODF	0 to 30 0 to 80	20 60
			1/2'' ODF
			5/8'' ODF
ADRPE-3			1/2'' ODF
			5/8'' ODF
ADRHE-6			5/8'' ODF
			7/8'' ODF
			1-1/8'' ODF

Cooling Capacity (KW):

R22

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	2.04	1.86	-	12.3	-	21.1	-	32.2
-5℃	1.55	2.25	1.9	-	12.5	-	22	-	34.8
-15℃	2.22	2.11	1.72	13.7	12.9	26	23.2	48.9	38.3
-25℃	2.08	1.76	1.55	13.2	12.8	26.2	23.4	49.6	38.7

R134a

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	1.41	1.51	1.19	-	9.4	-	17.4	-	32.9
-5℃	1.44	1.37	1.12	9.15	8.59	17.4	15.5	32.9	25.5
-15℃	1.34	1.09	0.98	8.66	-	17.2	-	33.1	-

R404A

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	-	1.94	-	-	-	-	-	-
-5℃	-	2.36	2.11	-	13.7	-	23.6	-	36.6
-15℃	2.35	2.5	1.97	-	14.1	-	25.2	-	41.2
-25℃	2.39	2.15	1.79	14.7	14.1	28.4	25.6	53.8	42.6

R407C

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	2.74	2.29	-	14.9	-	26.4	-	42.6
-5℃	2.15	2.74	2.22	-	14.9	-	26.4	-	42.6
-15℃	2.6	2.39	1.97	15.9	15.2	30.4	27.5	57.3	45.7
-25℃	2.39	1.97	1.76	15.2	14.9	30.4	27.1	58	45.4

Main Dimension:

Model No	Inlet & Outlet	A	B	C	D	E	F
ADRSE-2	3/8'' ODF	164	64	50	37	37	61
	1/2'' ODF				35	35
	5/8'' ODF				38	38
ADRPE-3	1/2'' ODF	178	72	53	43	41	61
	5/8'' ODF				55	55
ADRHE-6	5/8'' ODF	180	73	48	117	117	70
	7/8'' ODF
	1-1/8'' ODF
