| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR 40 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Refrigeration Solenoid Valve | Ordering Number: | 042H1110, 042H1112, 042H1114 |
|---|---|---|---|
| Port Size: | 1 5/8'' (42mm), 2 1/8'' (54mm) | Connection Type: | Solder (ODF) |
| Function: | 2 Way, Normally Closed | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, 230VAC |
| Body Material: | Brass | Seal Material: | PTFE |
| System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line | Application: | Chiller, Air Conditioning, Freezer, Cooler, Etc |
| Highlight: | EVR 40 Solenoid Valve,Danfoss 042H1110,Danfoss 042H1112 |
||

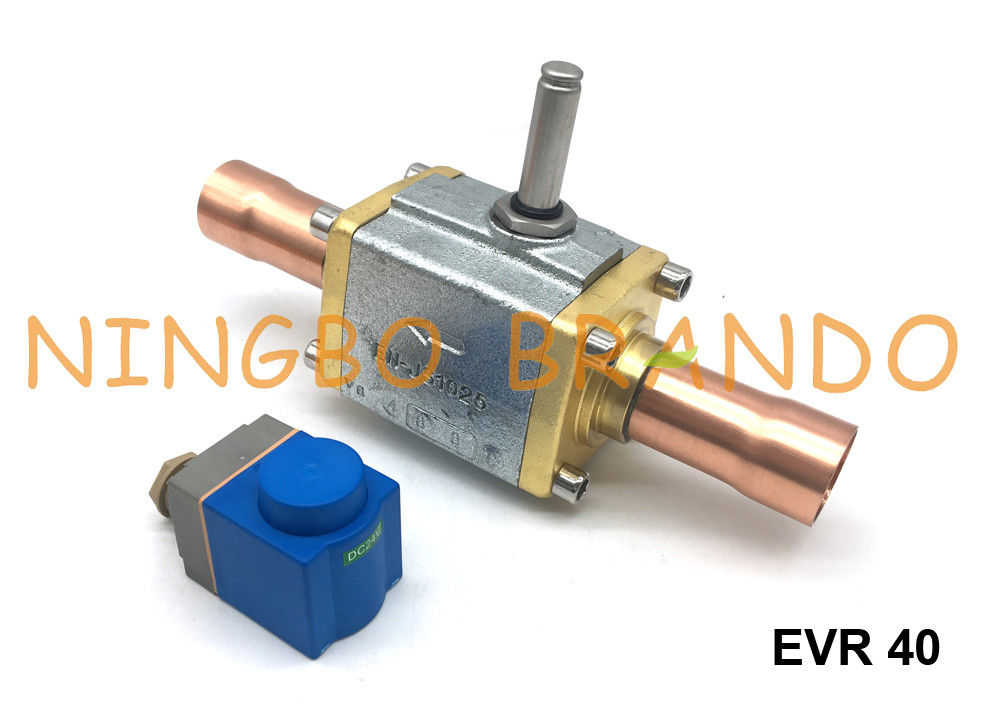

Danfoss Type Solenoid Valve EVR 40 042H1110 042H1112 042H1114
Refrigeration Solenoid Valves for refrigeration, freezing and air conditioning plant applications in liquid, suction, and hot gas lines with ammonia or fluorinated refrigerants.
Features & Benefits:
1. A Complete Range of Solenoid Valves for Refrigeration, Freezing and Air Conditioning Systems
2. AC and DC Coils are Interchangeable on All Valve Body Versions
3. Use with any Fluorinated Refrigerant
4. Solder Versions have Extended Connections
5. There is No Need to Dismantle the Valve When Soldering
6. Extended Ends for Soldering Make Installation Easy
7. Drawn Stainless Steel Tube with Internal Armature Top for Maximum External Tightness
Main Dimension of EVR 40 Refrigeration Solenoid Valve:
|
Type
|
Connection
|
H1
|
H2
|
H4
|
L
|
L2
|
L5
|
|
|
inch
|
mm
|
|||||||
|
EVR 40
|
1 5/8''
|
42
|
47
|
111
|
53
|
281
|
29
|
75
|
|
2 1/8''
|
54
|
47
|
111
|
53
|
281
|
34
|
75
|
|
Ordering Code of Danfoss Type Solenoid Valves:
EVR solder connection, Normally Closed (NC) - separate valve bodies
|
Type
|
Connection Size
(Inch)
|
Connection Size
(mm)
|
Manual Operation
|
Code No
|
|
EVR 2
|
1/4
|
-
|
NO
|
032F1201
|
|
1/4
|
-
|
032F7100
|
||
|
-
|
6
|
032F1202
|
||
|
EVR 3
|
1/4
|
-
|
NO
|
032F1206
|
|
3/8
|
-
|
032F1204
|
||
|
-
|
6
|
032F1207
|
||
|
-
|
10
|
032F1208
|
||
|
EVR 6
|
1/2
|
-
|
NO
|
032F1209
|
|
3/8
|
-
|
032F1212
|
||
|
-
|
10
|
032F1213
|
||
|
-
|
12
|
032F1236
|
||
|
EVR 10
|
1/2
|
-
|
NO
|
032F1217
|
|
-
|
12
|
032F1218
|
||
|
5/8
|
16
|
032F1214
|
||
|
EVR 15
|
7/8
|
22
|
NO
|
032F1225
|
|
-
|
16
|
YES
|
032F1227
|
|
|
5/8
|
16
|
NO
|
032F1228
|
|
|
EVR 20
|
7/8
|
22
|
NO
|
032F1240
|
|
7/8
|
-
|
YES
|
032F1254
|
|
|
1 1/8
|
-
|
NO
|
032F1244
|
|
|
-
|
28
|
NO
|
032F1245
|
|
|
7/8
|
22
|
NO
|
032F1264
|
|
|
7/8
|
-
|
YES
|
032F1274
|
|
|
EVR 22
|
1 3/8
|
35
|
NO
|
032F3267
|
|
EVR 25
|
1 1/8
|
-
|
YES
|
032F2200
|
|
1 1/8
|
-
|
NO
|
032F2201
|
|
|
-
|
28
|
YES
|
032F2205
|
|
|
-
|
28
|
NO
|
032F2206
|
|
|
1 3/8
|
-
|
YES
|
032F2207
|
|
|
1 3/8
|
-
|
NO
|
032F2208
|
|
|
EVR 32
|
1 5/8
|
-
|
YES
|
042H1103
|
|
1 5/8
|
-
|
NO
|
042H1104
|
|
|
-
|
35
|
YES
|
042H1105
|
|
|
-
|
35
|
NO
|
042H1106
|
|
|
-
|
42
|
YES
|
042H1107
|
|
|
-
|
42
|
NO
|
042H1108
|
|
|
EVR 40
|
1 5/8
|
-
|
YES
|
042H1109
|
|
1 5/8
|
-
|
NO
|
042H1110
|
|
|
2 1/8
|
-
|
YES
|
042H1111
|
|
|
2 1/8
|
-
|
NO
|
042H1112
|
|
|
-
|
42
|
YES
|
042H1113
|
|
|
-
|
42
|
NO
|
042H1114
|
EVR flare connection, Normally Closed (NC) - separate valve bodies
|
Type
|
Connection Size
(Inch)
|
Connection Size
(mm)
|
Manual Operation
|
Code No
|
|
EVR 2
|
1/4
|
6
|
NO
|
032F8056
|
|
EVR 3
|
1/4
|
6
|
NO
|
032F8107
|
|
3/8
|
10
|
NO
|
032F8116
|
|
|
EVR 6
|
3/8
|
10
|
NO
|
032F8072
|
|
1/2
|
12
|
NO
|
032F8079
|
|
|
EVR 10
|
1/2
|
12
|
NO
|
032F8095
|
|
5/8
|
16
|
NO
|
032F8098
|
|
|
EVR 15
|
5/8
|
16
|
NO
|
032F8101
|
|
5/8
|
16
|
YES
|
032F8100
|
