| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | ISO |
| Model Number: | RCAC25FS |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Box，Carton |
| Delivery Time: | 5Days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 6666 sets per month |
| Body Material: | Aluminium Alloy | Type: | Right Angle |
|---|---|---|---|
| Port Size: | 1 Inch | Voltage: | AC110V DC24V AC220V |
| High Light: | solenoid pulse valve,pulse solenoid valve |
||

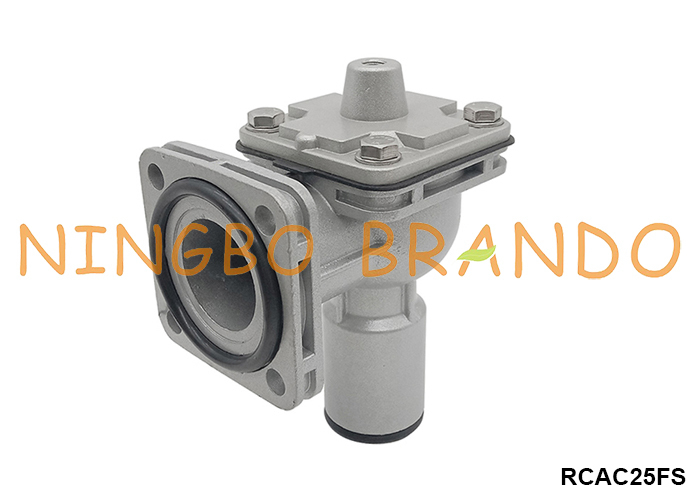

1 Inch Aluminum Alloy Pneumatic Pulse Valve Right Angle For Dust Removal RCAC25FS
Our company is specialized in producing all kinds of electromagnetic pulse valves, with various specifications of dust removal equipment and various accessories. The manufacturing standards are strictly in accordance with the national operating procedures, and they are strictly implemented in one step. The factory takes quality as the basis and uses technology as a breakthrough to produce more high-grade, high-quality, high-performance and durable bag filter equipment.
The RCAC35FS features a very high performance diaphragm valve with flanged inlet and sliding seal outlet for easy valve installation and removal.
Pls Contact Us If Necessary!
Specifiation
Working pressure:0.3~0.8Mpa
Relatively humidity:<85%
Working medium:Clear Air
Voltage:AC110V/AC220V/DC24V
Ambient Temperature:-5~50℃
Diaphragm material:NBR
Spring material:stainless steel
Body material:die-cast aluminum
| Nom. | Port Size | Number Of Diaphragms |
Flow | Pressure Range | Temperature Range | |||
| Size | mm | in | Kv | Cv | kPA(Psi) | Nitrile Seals | Viton Seals | |
| 25 | 25 | 1 | 1 | 22 | 25 | 30(5) - 860(125) | -40(-40) to 82(179.6) | -29(-20.2) to 232(449.6) |
| 45 | 40 | 1.5 | 1 | 52 | 61 | 30(5) - 860(125) | -40(-40) to 82(179.6) | -29(-20.2) to 232(449.6) |
Dimensional drawing of RCAC25FS
Installation
For your safety do not pressurise system until all valves and pipes are fully secured. Do not attempt to remove a fitted valve while system is under pressure.
1. Prepare supply and blowtube pipes* to suit valve type and specification.
2. Ensure tank and pipes are free from dirt, rust or other particulate.installing valves underneath the tank.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes (or flanges, tighten bolts to 10Nm) and blowtube tovalves, ensuring no excess thread sealant can enter the valve itself. Ensure blowtube is fully inserted into the valve outlet.
5. Tanks and pipes must be independently restrained from FS and DD valves.
6. Connect RCAC pilot port to remote pilot valve, or install MIP/3DS screw in pilot valve.
7. Apply moderate pressure to system and check for installation leaks.
8. Test fire and listen for proper actuation and crisp pulse noise.
9.Fully pressurise system.
please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.
CA25FS is with solenoid. RCA25FS is without solenoid & pilot. Both types are flanged type.
It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal
