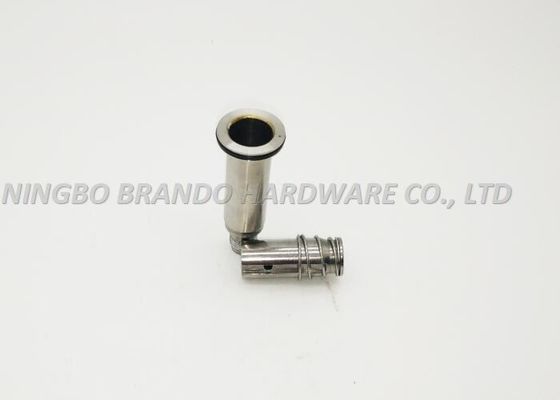

Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core

Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core

  • Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core
  • Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core
  • Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core
  • Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core
  • Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core
Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core
Product Details:
Place of Origin: Ningbo CHINA
Brand Name: BRANDO
Certification: CE
Model Number: BAPC314339654
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Export caton
Delivery Time: 8 work days
Payment Terms: MoneyGram, T/T, D/P, L/C, Western Union
Supply Ability: 5000 pcs per day
Contact Now
Detailed Product Description
Connection: Male Thread Color: Silvery White
Voltage: AC/DC Material: SS304
Type: 3/2 Way NC Seal: NBR
Tube Height: 39.6.0mm Item Weight: 57g
High Light:

solenoid valve stem

,

stainless steel valve stems

Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core



Overall Dimension



1.Brand:BRANDO

2.NO.BAPC314339654

3.Voltage:AC/DC

4.Tube OD:14.3mm

5.Tube height:39.6mm

6.Item weight:57gram

7.Guide Core height:33.9mm

8.Depth:27mm

9.Armature height:54.5mm

10.Standard or no:Standard

11.O-Ring or no:O-Ring

O-Ring:An O-ring seal between the tube and the plugnut will prevent the fluid from escaping.

.

Material of each part we use



1.Stainless steel for armature and movable core.

2.NBR for seal

NBR:NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkaline.

3.We also use 430FR or brass H59/H62 and seal for viton/PTFE.



Application of this item



1.Mainly used for special valve armature

2.Solenoid valve can be used in

Dental equipment

Dust collector valve

Automatic vending machine

Pulse device

Pneumatic equipment

Auto drain industry

Air suspension

Refrigeration device

Hyraulic industry

Life water and industry water supply

Air condition device/Air suspension valve

Pipe switch

Evr solenoid valve

Forged brass solenoid valve



Manufacture Process



Make the drawing by computer,better if customer send  sample





Teach workers about  the specification of the solenoid stem





Design manufacture process in the numerical control table





Make a sample or two to ensure there is no mistaken





Test by quality inspector,including pressure test,temperture test,Corrosion-resistance





Send the sample or drawing to the customer/consumers and check by themselves





Customer are satisfied with items.Ensure item has met each requirement and standard





Produce items largely and  Finish as soon as possible





Test by our quality inspector again one by one to guarantee every piece's quality





Packing and delivery to customer





With no quality problem send the goods/items to concumers





Customer Check whether items are received





We also make OEM with your drawing and sample





Looking forward the next time  cooperation





Picture of  different type solenoid valve



Hollow Male Thread Connection Solenoid Stem/Secondary NBR Seal Guide Core 0



Threee type of the solenoid valve,2/2 way normally open,2/2 way normally closed and 3/2 way normally closed type.

This picture shows that three different type solenoid valves' work principle in energized state or de-energized state.And can explain most suitation of solenoid valve



If you are interesed in our products or want to buy, welcome your contact and you can ask any questions you want to know.
