Place of Origin: | Ningbo CHINA |
Brand Name: | BRANDO |
Certification: | CE |
Model Number: | BAPC214335039 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | negotiation |
Packaging Details: | Decades in box,then put into cartom |
Delivery Time: | 7 work days |
Payment Terms: | Western Union, D/P, MoneyGram, D/A |
Supply Ability: | 40000 pcs per month or more |
Connection: | Thread | Color: | Brass And Silvery Color |
---|---|---|---|
Standard Or No: | Standard | Pressure: | Normal |
Voltage: | AC/DC | Material: | SS304 H59 |
Highlight: | brass valve stems,stainless steel valve stems |

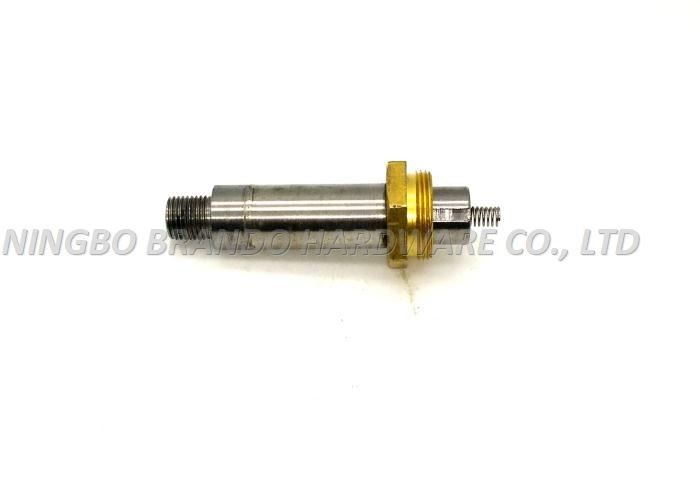

Rubber Band Internal Spring Movable Core/Brass Seat Male Thread Solenoid Stem
Application for Auto drain solenoid valve
The water solenoid valve has a closed cavity, with hollow channels in different positions, each channel leads to different tubing, the middle of the cavity is a valve, two different electromagnets on both sides, which side of the solenoid coil electrified valve body will be attracted to which side, through the control of valve body movement to block or leakage of different oil drainage channels, and the oil channel is normally open as Well, the hydraulic oil enters different drain pipes and then pushes the piston of the cylinder through the pressure of the oil. The piston then drives the piston rod and the piston rod drives the mechanical device. The mechanical movement controlled by the current of the electromagnet. .
Water solenoid valve is suitable for water or liquid as the working medium. Automatic control or remote control of water, oil, liquid and other working media pipeline on and off. Because the valve is sealed with rubber, the cleanliness of working medium is greatly reduced, and the valve has the characteristics of quick opening and closing in high reliability.
Detail information/demension instruction
Brand | BRANDO | |||
NO. | BAPC214335039 | |||
Voltage | AC/DC | |||
Tube OD | 14.3mm | |||
Tube height | 35.0mm | |||
Item weight | 70.5g | |||
Movable core height | 28.6mm | |||
Depth | 31mm | |||
Armature height | 58.5mm | |||
Material | Stainless steel 430FR H59 brass | |||
Component | Armature-stem,plunger,spring,Rubber |
H59:H59 is one kind of brass with high strength, hardness and good plasticity, it can withstand pressure working well in hot state.
Process of machining
Make the drawing in the computer or with your sample |
Give the specification of the solenoid stem to worker |
Design manufacture process in the numerical control table |
Make the sample one or two |
Test by quality inspector,including pressure test,temperture test,Corrosion-resistance |
Send the sample or drawing to the customer/consumers to test by themselves |
Ensure to meet eachrequirement and standard |
Produce items largely to meet the customers' requirements |
Test by our quality inspector again such as pressure test temperture test |
Packing and delivery |
With no quality problem send the goods/items to concumers |
Check whether items are received |
Make OEM with yours drawing and sample |
Transportation
1.By sea by air or by internationl expree are all in available
2.We will do best to get good freight cost for you if you need us to arrange shippment here
3.Welcome to your visit.If you are interested in this item,please contact us.
If not,we will have other kinds of solenoid stem/plunger tube assembly,can be easy to find the one that meet your requirements
