Place of Origin: | CHINA |
Brand Name: | BRANDO |
Certification: | CE |
Model Number: | BAPC309028330 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | negotiation |
Packaging Details: | bag , carton |
Delivery Time: | 29 days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 800 pcs per 7 houes |
Application: | For Pneumatic | Weight: | 49g |
---|---|---|---|
Tube OD: | 9mm | Tube High: | 28.3mm |
Material: | Stainless Steel | Type: | 3/2 |
Highlight: | cylinder operated valve,air cylinder valve |

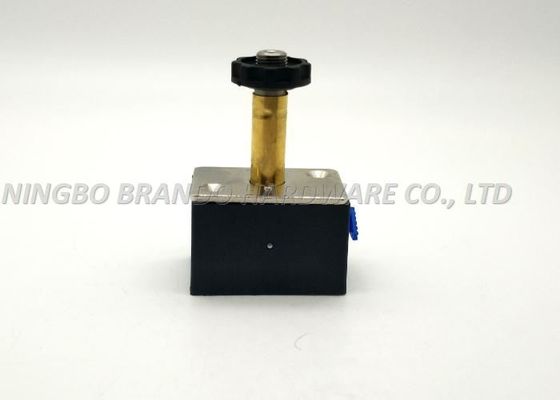

The Two-Three Normally Closed Solenoid Valve Stem CE Standard, The Outer Tube Diameter Is 28.3mm For Pneumatic
1.Specifications for BAPC309028330:
1.1 BAPC3090283330 is a combination of a fixed core, stainless steel tube, moving plunger, spring, pilot valve seat, O-ring, seal, manual rocker and plastic nut.
1.2 Working voltage is DC or AC.
1.3 Type: 3 way (top plug has vent).
1.4 Installation overall size: pipe diameter 9mm, pipe installation pipe height maximum 28.3mm.
1.5 Usually applied to pneumatic solenoid valves.
2. Working principle and characteristics of pneumatic solenoid valve:
2.1 working principle: There are closed chambers in the pneumatic solenoid valve. There are through holes in different positions. Each hole of the pneumatic solenoid valve leads to different oil pipes. The middle of the cavity is a valve. On both sides are two electromagnets. Which side of the magnet coil is energized. The valve body will be attracted to which side; the pneumatic solenoid valve blocks or leaks different oil drain holes by controlling the movement of the valve body, and the oil inlet hole is normally open, and the hydraulic oil will enter different oil drain pipes. The oil piston is then pushed by the pressure of the oil of the pneumatic solenoid valve, thus controlling the mechanical movement of the entire solenoid valve by controlling the current of the electromagnet of the pneumatic solenoid valve.
2.2 Features:
1. It can work normally under vacuum, negative pressure and zero pressure, but the diameter is generally no more than 25 mm. |
2. It can also be operated at zero differential pressure or vacuum or high pressure, but the power is large and it is required to be installed horizontally. |
3. The upper limit of the fluid pressure range is high and can be installed at will (customized) but must meet the fluid pressure differential conditions. |
3.What are the advantages of BAPC309028330:
1. We manufacture high quality materials with high quality materials, because it is important to have a good foundation. However, good manufacturing materials are the basis of good products, so we all use high quality materials and improve our products. The quality and length of his life. |
2. Pneumatic solenoid valve has good effect on gas medium and small diameter liquid, low cost and easy maintenance |
3. It has high reliability in operation and use, high performance and value in function, and is easy to use. |
4. Using a noise-free AC type can reduce the harm caused by noise and improve the quietness of the product environment. |
4.Factory environment:
5.About the sample:
5.1 If you are in our product library and don't find the product you are not satisfied with, please contact us immediately. You can provide the drawings of the products you want to us and let me make you. want.
5.2 Because we have a very good and very strong team behind us, we have someone to study the drawings you provided and discuss with you, and when you modify a drawing, we will make the modified drawings to the special production staff.
6.Order process and after-sales service:
6.1 order process:
1. The customer confirms the number of product models to be purchased and the delivery time and then sends an inquiry to us. |
2. We will look up the model price and delivery time based on the product model number on the RFQ, and we will prepare a detailed formal quotation. |
3. The customer receives our quotation and checks the contents of the quotation and confirms the order, and orders to purchase the product. |
4. The person in charge of the quotation will prepare a sales contract based on the quantity of the product purchased by the customer. |
5. The customer receives the sales contract and sees the content and agrees to return it and return it to our bank. |
6. After the financial check of the customer's remittance, we arrange the salesman to deliver the goods and notify the customer to track the waybill. |
6.2 after sales question:If you find any problems in the production process of the product or during the use of the product, please contact us in time, we will solve the problem according to your question in the shortest time.
7.About packaging and shipping:
