|Place of Origin:||Ningbo China|
|Minimum Order Quantity:||2 pcs|
|Packaging Details:||with plastic covered in the carton|
|Delivery Time:||7 work days|
|Payment Terms:||L/C, D/P, T/T|
|Supply Ability:||25000 pcs per month or even more|
|Standard Or Not:||Standard||Application:||Pneumatic|
solenoid valve stem,
stainless steel valve stems

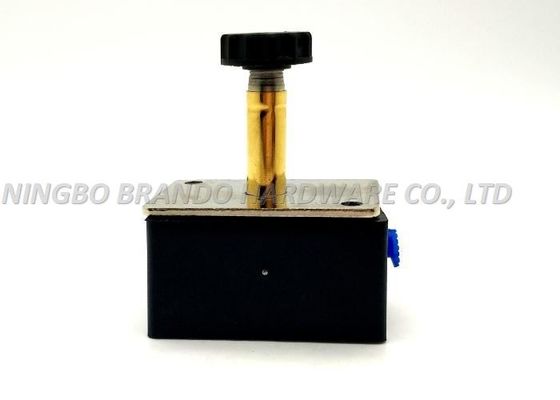

4V Armature Assembly With Solenoid Valve Application For The Pneumatic Industry,Solenoid Stem
1.Application and purpose
1.1,Assembling with solenoid coil as a switch system.the solenoid stem uses an electric currents to generate a magnetic field and thereby operate a mechanism which regulates the opening of fluid flow in a valve.
1.2,Concrete application in the pneumatic industry.The pneumatic solenoid valve controls the movement of the valve body to stop or leak out different oil drainage holes, and the oil intake hole is normally open. Hydraulic oil will enter different oil drainage pipes. And drive the piston cylinder through the pneumatic solenoid valve oil pressures.
Pneumatic solenoid valve solenoid current control the entire Mechanical movement of solenoid valves. When energized.
Advantages and requirements of pneumatic valve
Can work normally in vacuum, negative pressure. But the diameter is generally not more than 25 mm.
It can also be operated at zero differential pressure or vacuum or high voltage, but the power is large, so it must be installed horizontally.
The upper limit of fluid pressure range is high, and can be installed arbitrarily (to be customized) but must meet the fluid pressure differential conditions.
2.1,It's a semi assembled items including the solenoid stem,flange,plastic solenoid seat,O-Ring.
Flange:A flange is an external or internal ridge, or rim (lip) for strength, as the flange of an iron beam such as an I-beam or a T-beam; or for attachment to another object, as the flange on the end of a pipe, steam cylinder, etc. The term "flange" is also used for a kind of tool used to form flanges. Piples with flanges can be assembled and disassembled easily.
2.2,light weight solenoid stem
2.3,With two sides seal and O-Ring
2.4,Mixed use of stainless steel and brass to improve the Electricity conductivity and conversion rate
2.5, with Plastic valve seat
2.6,there is a groove in the plunger with a male spring
3.Know more detail about BAPC309030041
|Each part we use|
|stem-plunger tube||Brass and 430FR or SS304|
430FR or SS304
|Solenoid valve seat||Plastic|
|More detail in the images|
4.1, We offer professional order operation service: Same sales person follows the order from discussing step to the end of you get the goods of order
4.2, If any problems occur during production or you meet quality problem when you are using our goods, inform us at once, we will offer you best solution
4.3,We will track the delivery and give you the numer to ensure the safety of goods
4.4,Any special requirement ,inform us is ok.
5.Other items show
