Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g

Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g

    • Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g
    • Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g
    • Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g
    • Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g
    • Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g
  • Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC315539819

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Price: negotiation
    Packaging Details: decades pcs in a box and put in carton
    Delivery Time: 5-7 work days
    Payment Terms: MoneyGram, D/A, D/P
    Supply Ability: 2000 pcs in a half day
    Contact Now
    Detailed Product Description
    Item Weight: 84.5g Color: Silvery White
    Item Number: BAPC315539819 Tube OD: 15.5mm

    Silvery White Rectangular Based Normally-closed Solenoid Stem Using Laser Solder Technology



    The overview of BAPC315539819

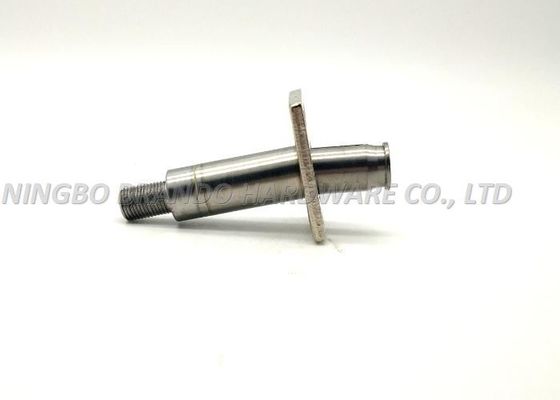

    Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g





    Silvery White Solenoid Valve Stem Rectangular Based Normally Closed 84.5g





    Looking for ideal Solenoid Plunger Tube Manufacturer and supplier ? We have a wide selection at great prices to help you get creative. All the Solenoid Stem are quality guaranteed. We are China Origin Factory of Pneumatic Electromagnetic Plunger Tube. If you have any question, please feel free to contact us.





    Armature characteristics of Stem:

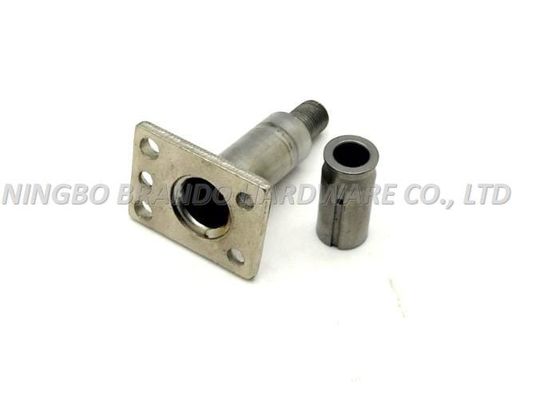

    1,BAPC315539819 has a rectangular base with five points to fix and install with the valve.It's  firm that fix the points with screws.In addition,due to the differences of the points diameter in the rectangular base,so we can fix  points with two different screw seperately.

    2,The screw thread height is15.0mm, so mean that can assembly with the 15.0mm inner screw thread  of solenoid coil.And the rest tube height is 24.5mm.In the inner tube,there is a interlayer that have a circular vent

    3.The whole solenoid stem seperate two parts:hte plunger tube and the rectangular base.In order to link two parts we used the laser solder technology.

    Laser welding technology belongs to the technology of fusion welding, which uses laser beam as energy source to impact on the welded joint to achieve the purpose of welding. It consists of an optical oscillator and a dielectric placed between the two ends of the oscillator hole.Lasers can also be interpreted as converting electrical energy, chemical energy, heat energy, light energy or nuclear energy into specific optical frequencies.

    4,The plunger also has two groove,but have two vent different from out other items with no vent or one.

    5.The seal also is NBR and NBR seal the both sides ports.Between the NBR,there is a inner spring.

    Spring is a kind of good elastic parts, which has the characteristics of easy deformation and large elasticity. In the limit range of the spring, its elastic force is proportional to the spring elongation, following Hooke's law, F = KX.

    In this solenoid stem application:Movement of control mechanism: such springs require little change in the force within a certain deformation range. For example, valve springs in internal combustion engines, control springs in clutches, springs in automatic machine cam mechanisms, etc.It also play the same function on controle system.



    Dimension



    Screw thread height 15.0mm
    Tube height

    39.8mm

    Tube OD 15.5mm
    Thickness of base 0.39mm
    Spring Type Inner spring
    Material Stainless steel
    Seal NBR
