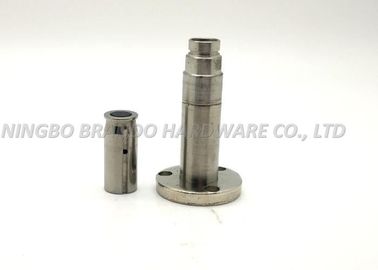

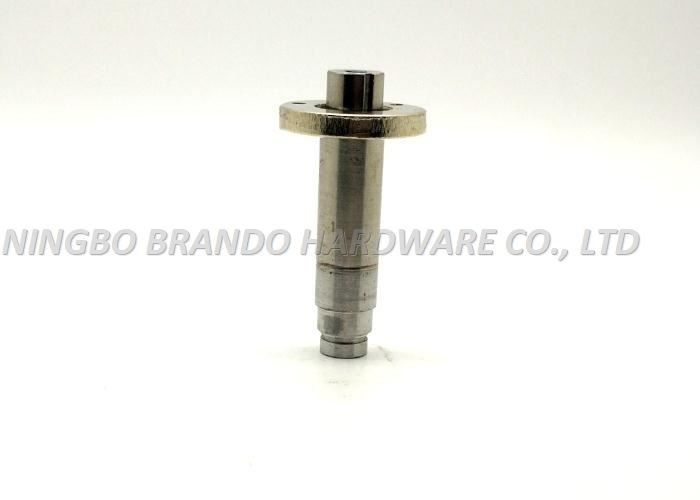

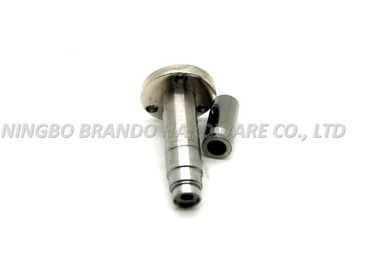

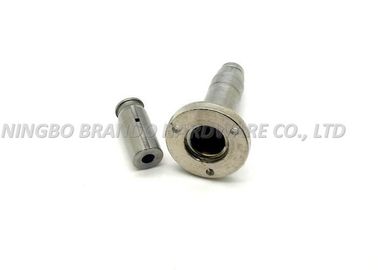

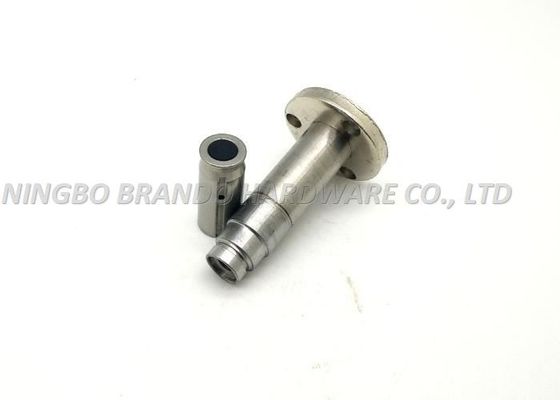

NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve

NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve

    • NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve
    • NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve
    • NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve
    • NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve
    • NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve
  • NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC315550220

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: negotiation
    Packaging Details: Da
    Delivery Time: Within 5 Days
    Payment Terms: L/C, D/A, D/P
    Supply Ability: 3000 a day
    Contact Now
    Detailed Product Description
    Pressure: Normal Type: 3/2
    Seal: NBR Voltage: AC/DC

    3 Position 2 Way NBR Seal Circular Base Solenoid Stem For Electromagnetic valve





    1.Each Part Of We use





    1.1,Every product components we use is new and  in good quality.





    Solenoid stem Stainless steel
    Solenoid stem base Circular stainless steel
    Moveable core Stainless steel
    Seal

    NBR





    1.2,All the stainless steel use the 430FR that has good corrosion resistance and general steel, thermal conductivity is better than austenite, thermal expansion coefficient is smaller than austenite, heat-resistant fatigue, adding stabilizing element titanium, good mechanical properties of weld seam. It is used for building decoration, fuel burner parts, household appliances and household electrical appliances.

    1.3The seal we use in the moveable core is NBR,fully fill the inner of  the moveable core with a inner spring.To acquire the best sealing ablility and keep the media fluid in.

    1.4,In the surface of solenoid stem,there are 5 different out diameter,the biggerst is 15.5mm,others have a bit little differences in out diameter

    1.5,In the solenoid stem base which is a part of the solenoid stem,there are three points to fix the screw and achieve the soild ability.

    1.6,In this item,also have two grooves in the both sides of the moveable core.Especially in one side,the groove has a point which acquire better sealing ability.





    2.Advantages of BAPC315550220





    2.1,Above,great sealing

    2.2,Beautiful appearance because of advanded technology and  washing technology

    2.3,Long service life

    2.4,Compact items

    2.5,Small size and easy install

    2.6,Normall specification that fit a great amount of solenoid coil





    3.Usually can fit in a large numer coil ,so hace a great deal application(after assembing)





    3.1,A Example in pneumatic industry:When the coil is energized or powered off, the operation of the core will cause the fluid to pass through the valve body or be cut off to achieve the purpose of changing the direction of the fluid.

    Model of the pneumatic electromagnetic valve

    one:The components of pneumatic and regulating compressed air pressure are called pressure control valves.

    Two:A component that controls and regulates the flow of compressed air is called a flow solenoid valve.

    Three:The component that changes the direction of the air flow is called the directional solenoid valve.

    Except these solenoid valve,there is a logical valve which have certain function on logic including the component of unmoveable item and logical parts





    4. Matching Solenoid Coil Example and others:



    4.1,Out diameter;15.5mm,Tube height:50.2mm




    NBR Seal Circular Base Solenoid Stem 3 Position 2 Way For Electromagnetic Valve





    5.Supplyability



    5.1,30000 thousands  pcs in a month or maybe more

    5.2,If you have the exclusive requirement,just inform us to offer your a best solution.



    Welcome to our web,we have other items in good quality as well as BAPC315550220

    We also make OEM,with your sample or drawing
