Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic

Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic

    • Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic
    • Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic
    • Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic
    • Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic
    • Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic
  • Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic

    Product Details:

    Place of Origin: CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC308027612

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: bag , carton
    Delivery Time: 5 work days
    Payment Terms: L/C, Western Union, T/T
    Supply Ability: 1000 pcs per 8 hours
    Contact Now
    Detailed Product Description
    Color: Silver White Application: For Pneumatic
    Material: Solenoid Stem Place Of Origin: NINGBO , CHINA
    Tube Height: 27.6mm Tuba OD: 8mm

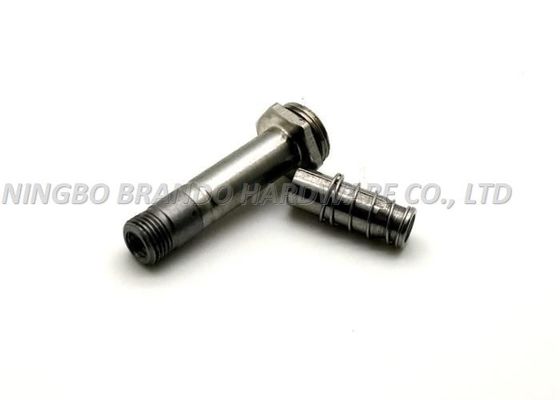

    3-Way, 2-Position normally closed solenoid stem and plunger for pneumatic



    1.Learn more about the specifications of BAPC308027612:

    1.1 BAPC308027612 components include, core tube, moving plunger, spring, O-ring, seal parts.

    1.2 The product size is 8mm and the tube height is 27.6mm.

    1.3 Made of high quality 304 stainless steel.

    1.4 The working voltage is DC/AC.



    2.Advantage:

    2.1 The use of high-quality materials can increase the service life of the product without causing damage to the product.

    2.2 The core is made of rust-proof, corrosion-resistant material with good high magnetic permeability and low remanence, making the product durable.

    2.3 The spring is made of imported special stainless steel wire, the pressure is stable, the recovery performance is good, the sealant can be heat-resistant and oil-proof, which improves the safety performance of the product.

    2.4 Specifications include normally open / normally closed, and the voltage can be AC / DC.

    2.5 Mainly used in pneumatic electromagnetic valve.

    2.6 We usually use a noiseless AC type to reduce the sound of the product when it is used, and it controls the sound very much.



    Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic



    3.Packaging & Delivery:

    Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic



    4.About the sample:

    4.1 You can find the product you want in our product library. If you don't find the product you want in our product library, don't worry, there is still a way. You can give us the drawings of the product you want. , we will give you make a new product sample for your reference.

    4.2 We have an excellent team behind us, there are special people to design drawings to make products, so you can safely hand over the drawings to us, we will certainly produce samples that will satisfy you.



    The weight

    12.5g



    Material

    solenoid stem



    Working Voltage

    DC/AC



    Type

    3/2



    The length of solenoid stem

    27.6mm



    The extemal deiameter of armature 8mm



    5.Factory environment:



    Three Way Solenoid Stem Normally Closed OD 8mm Two Position For Pneumatic



    6.About operating services and after-sales services:

    6.1 We will have a special person to follow up on your order. From the time you place your order to the time you get our products, someone will come to contact you and communicate.

    6.2 If you find that the product has problems or other problems when using our products, then please contact us immediately, tell us what kind of problems, and then we will respond according to the problems you found. Measures to give you a satisfactory answer.

    6.3 Of course, our products have a one-year warranty. If the product is damaged or there is any problem within this year, you will be able to tell us that we will decide whether to repair or replace the  product according to the problem.



    7.At last:

    7.1 We offer a wide range of options at a great price to help you get creative and get what you want.

    7.2 All 12V solenoid valve armature plug nuts are guaranteed for quality.

    7.3 If you have any questions, please feel free to contact us and we will get back to you within 24 hours.
