| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | BAPC316038825 |
| Minimum Order Quantity: | 2 pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | bag , carton |
| Delivery Time: | 7 work days |
| Payment Terms: | L/C, D/P, Western Union |
| Supply Ability: | 500 pcs per 4 hours |
| Application: | For Medical Equipment | Color: | Slivery Write |
|---|---|---|---|
| Tube OD: | 16mm | Place Of Origrin: | NINGBO , CHINA |
| Weight: | 84 Grams | Material: | Stainless Steel |
| High Light: | brass valve stems,solenoid valve stem |
||

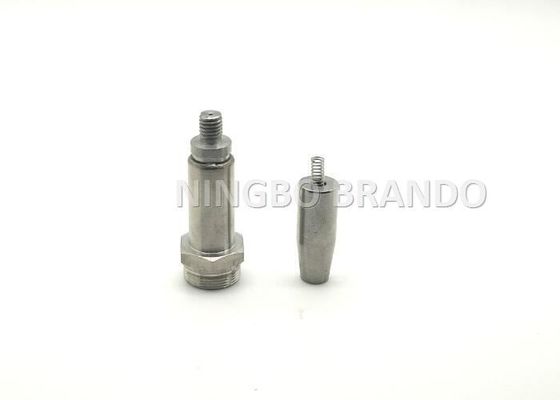

3/2 normally closed solenoid stem and plunger for medical equipment
1.ABOUT BAPC316038825:
1.1 The product is a combination of a partially fixed core, a stainless steel tube, a moving plunger, a spring, an O-ring and a seal.
1.2 The size of the product is 16mm pipe diameter and the pipe height is 38.8mm.
1.3 Type 3/2.
1.4 Working voltage is DC/AC.
2.Product advantages:
2.1 We use 304 stainless steel, which has good processing performance, high toughness and corrosion resistance.
2.2 We use advanced laser technology to ensure the strength of the product and improve the life of the product.
2.3 After each product is finished, we will carry out a series of work, first ultrasonic cleaning them to remove oil, drilling, to achieve a good appearance, and then after assembly, we will test the product leakage and noise, function 100%, To ensure the quality of the product.
3.About the sample:
3.1 If we don't have the product you want in our product library or you don't think we have enough products, then you can provide us with drawings. We will make new samples according to your requirements and meet your requirements.
3.2 Because we have a strong and excellent team behind us, there are dedicated staff to design drawings and samples, you can provide our team with your own drawings, let us personally produce the products you need.
| The weight |
84g
|
| Working Voltage |
DC/AC
|
| Type |
3/2
|
| The length of solenoid stem |
38.8mm
|
| The extemal diameter of armature | 16mm |
| material |
atainless steel
|
4.About our operation services and after-sales service:
4.1 We will have a dedicated sales staff, according to the order from the order to the time you get our products, there will be a special person who is responsible.
4.2 If you find a problem in our production process or in the process of using our products, please contact us in time, we will immediately solve the problem according to the problem you are responding to.
5.You can get in touch with us through the contact details below:
5.1 Tel: 86-0574-83879820
5.2 Wechat: brandon1986
5.3 You can also leave a message below our website and we will get back to you within 24 hours.
Contact Person: Brandon
Tel: +8613454729544
