| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | EVR10-012S |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner box, Carton, Pallet |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Application: | Refrigeration Compressor Group | Orifice: | 1/2"; 12.8mm |
|---|---|---|---|
| Connection: | 1/2" ODF | Voltage: | 380V AC; 220V AC |
| Highlight: | normally closed solenoid valve,liquid line solenoid valve |
||

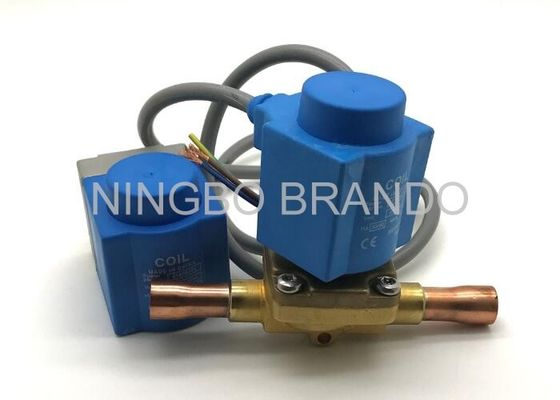

Normally Closed EVR Solenoid Valve Used for Frozen Refrigerated Air Control Water System
Description of EVR10-012S Solenoid Valve:
1, EVR solenoid valve is a direct-acting or diaphragm valve which is used in liquid line refrigerant for fluoride agents, suction or hot gas pipeline
2, It can be used for a variety of occasions such as frozen, refrigerated, air control, water systems
3, Normally Closed (NC) and normally open (NO) type can be provided

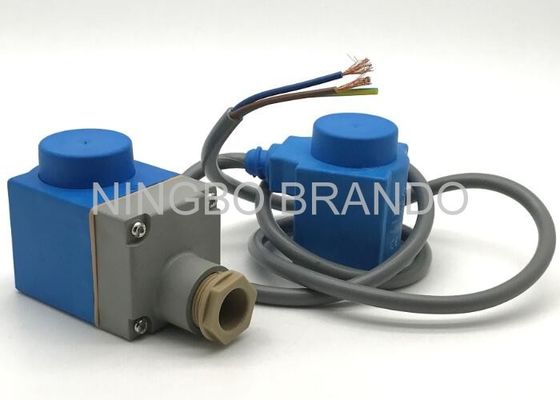

4, Variety of AC and DC solenoid vlave coil available
5, Medium temperature resistant: -40℃ ~+105℃
Model EVR solenoid valve is direct-operated or servo-operated valve, which is applicable to one direction flow;
Model EVR solenoid valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and air condintioning unit;
The valve seat of mode EVR solenoid valve is well sealed with perfect sealing performance;
Model EVR solenoid valves with various voltage solenoids are available;
Both packed and separated Model EVR solenoid valves are available and it means the valve body could be supplied separately from the solenoid.
EVR3-038S Refrigeration Solenoid Valve Technical Datas:
| Model | Connection | H1 | H2 | H4 | L | L2 | KV Factor (m³/h) | |||||||
| SAE inlet/outlet | ODF inlet/outlet (Solder) | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | |
| EVR3-014 | EVR3-014S | 1/4 | 6 | 0.5 | 14 | 2.8 | 71 | 4.0 | 102 | 0.3 | 7 | 0.27 | ||
| EVR3-038 | EVR3-038S | 3/8 | 10 | 0.5 | 14 | 2.9 | 73 | 4.6 | 117 | 0.4 | 10 | |||
| EVR6-038 | EVR6-038S | 3/8 | 10 | 0.5 | 14 | 3.1 | 79 | 4.4 | 111 | 0.4 | 10 | 0.8 | ||
| EVR6-012 | EVR6-012S | 1/2 | 12.8 | 0.5 | 14 | 3.1 | 79 | 5.0 | 127 | 0.4 | 10 | |||
| EVR10-012 | EVR10-012S | 1/2 | 12.8 | 0.6 | 16 | 3.1 | 79 | 5.0 | 127 | 0.4 | 10 | 1.9 | ||
| EVR10-058 | EVR10-058S | 5/8 | 16 | 0.6 | 16 | 3.1 | 79 | 6.3 | 160 | 0.5 | 12 | |||
| EVR15-058S | 5/8 | 16 | 0.7 | 19 | 3.4 | 86 | 6.9 | 176 | 0.5 | 12 | 2.6 | |||
| EVR15-078S | 7/8 | 22 | 0.7 | 19 | 3.4 | 86 | 6.9 | 176 | 0.7 | 17 | ||||
| EVR20-078S | 7/8 | 22 | 0.8 | 20 | 3.5 | 90 | 7.5 | 191 | 0.7 | 17 | 5 | |||
| EVR20-118S | 1 1/8 | 28.8 | 0.8 | 20 | 3.5 | 90 | 8.4 | 214 | 0.8 | 22 | ||||
| EVR22-138S | 1 3/8 | 35 | 0.8 | 20 | 3.5 | 90 | 11.1 | 281 | 1 | 25 | 6 | |||
| EVR25-118S | 1 1/8 | 28.8 | 1.5 | 38 | 5.4 | 138 | 2.8 | 72 | 10.0 | 256 | 0.8 | 22 | 10 | |
| EVR25-138S | 1 3/8 | 35 | 1.5 | 38 | 5.4 | 138 | 2.8 | 72 | 11.0 | 281 | 1 | 25 | ||
| EVR32-138S | 1 3/8 | 35 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1 | 25 | 16 | |
| EVR32-158S | 1 5/8 | 42 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1.1 | 29 | ||
| EVR40-158S | 1 5/8 | 42 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1.1 | 29 | 25 | |
| EVR40-218S | 2 1/8 | 54 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1.3 | 34 | ||
EVR Solenoid Valve Parameters:
| Type | The pressure difference when the solenoid valve can be activated, using standard coil (△bar) | Media Temperature | Max working pressure (Mpa) | Kv value (m³/h) | ||
| least | The maximum working pressure difference, MOPD (liquid) | |||||
| 10 W (AC) | 12W (AC) | |||||
| EVR3 | 0.0 | 21 | 25 | -40~105 | 3.5 | 0.27 |
| EVR6 | 0.05 | 21 | 25 | -40~105 | 3.5 | 0.8 |
| EVR10 | 0.05 | 21 | 25 | -40~105 | 3.5 | 1.9 |
| EVR15 | 0.05 | 21 | 25 | -40~105 | 3.5 | 2.6 |
| EVR20 | 0.05 | 21 | 25 | -40~105 | 3.2 | 5.0 |
| EVR22 | 0.05 | 21 | 25 | -40~105 | 3.2 | 6.0 |
| EVR25 | 0.20 | 21 | 25 | -40~105 | 3.2 | 10.0 |
| EVR32 | 0.20 | 21 | 25 | -40~105 | 3.2 | 16.0 |
| EVR40 | 0.20 | 21 | 25 | -40~105 | 3.2 | 25.0 |
1, Kv value is the water flow in m³/h at a pressure drop across valve of 0.1Mpa, p=1000kg/m³
2, MOPD tor meda in gat from is opprax 0.1 M pagreater
EVR Solenoid Valve Product Introduction:
Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.
Welcome your enquiry, we will response at once.
If you only need repair parts, we also can supply.
