| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 6013 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 50000 pcs per month |
| Port Size: | 1/8'', 1/4'' | Orifice Size: | 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm |
|---|---|---|---|
| Function: | 2 Way Normally Closed | Operation: | Plunger Direct Acting |
| Body Material: | Brass | Seal Material: | NBR, EPDM, FKM |
| Temperature Range: | NBR: -10 To +80 ℃, EPDM: -30 To +120 ℃, FKM: -30 To +150 ℃ | Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | Solenoid Valve 6013 A 1/8,Solenoid Valve 6013 A 2.0,Solenoid Valve 6013 A 3.0 |
||

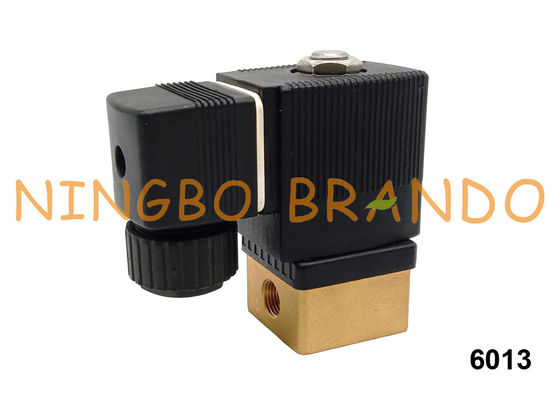

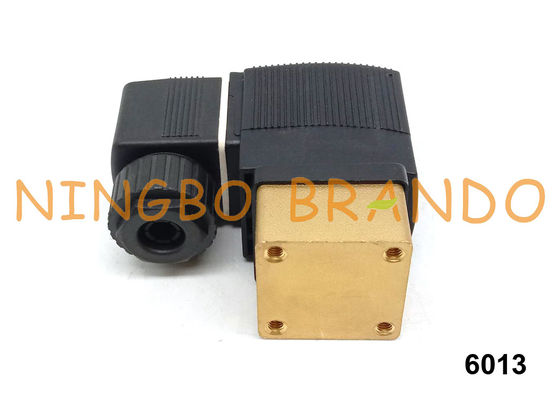

Brass Solenoid Valve 6013 A 1.5 2.0 2.5 3.0 4.0 5.0 6.0 1/8 5/64 NBR EPDM FKM
The 6013 solenoid valve is a direct operated 2/2-way solenoid valve with a compact design, which is available in both NC and NO versions. It is a cost-effective valve with a universal application for neutral and clean liquids, gases and vapors. Some versions of this valve also allow for use in mildly acidic and alkaline solutions. Diverse body and seal material combinations along with a variety of certifications, provide for a universal solution for your application.
Product Video of 6013 Brass Solenoid Valve:
Technical Data of 6013 Solenoid Valve:
|
Model
|
Port Size
(Inch)
|
Orifice Size
(mm)
|
Kv
|
Pressure Range (bar)
|
Medium Temperature (℃)
|
Dimension
|
||
|
A
|
F
|
K
|
||||||
|
6013
|
1/8''
|
1.5
|
0.05
|
0 to 40
|
NBR: -10 to +80
EPDM: -30 to +120 FKM: -30 to +150 |
32
|
32
|
66
|
|
2
|
0.12
|
0 to 25
|
||||||
|
2.5
|
0.16
|
0 to 16
|
||||||
|
3
|
0.23
|
0 to 10
|
||||||
|
1/4''
|
1.5
|
0.05
|
0 to 40
|
46
|
32
|
70
|
||
|
2
|
0.12
|
0 to 25
|
||||||
|
3
|
0.23
|
0 to 10
|
||||||
|
4
|
0.3
|
0 to 4
|
||||||
|
5
|
0.35
|
0 to 2
|
||||||
|
6
|
0.55
|
0 to 1.5
|
||||||
|
Sub-base
(SFB)
|
1.5
|
0.1
|
0 to 40
|
32
|
32
|
66/68
|
||
|
2
|
0.15
|
0 to 25
|
||||||
|
3
|
0.23
|
0 to 10
|
||||||
BRANDO Solenoid Valve Production Video:
More Solenoid Valves for you to choose:
| Brass Solenoid Valve | |||
|
|
|
|
|
|
|
|
| Stainless Steel Solenoid Valve | |||
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
