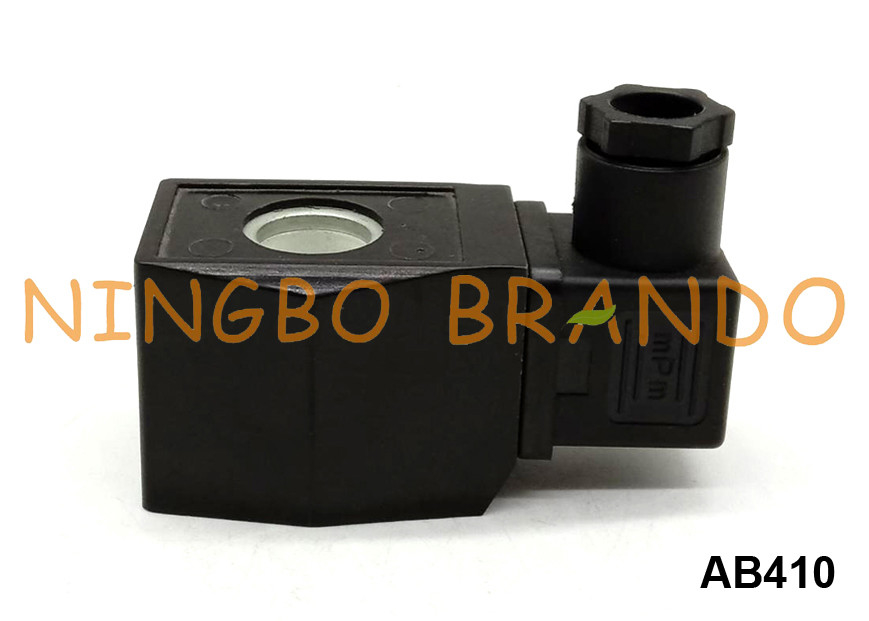

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W

  • AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W
AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W
Product Details:
Place of Origin: China, Ningbo
Brand Name: BRANDO
Certification: CE, ISO
Model Number: BB16039001
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Coil Ordering Code: AB410
Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC Power: 26VA, 18W
Protection Class: IP65 Insulation Class: F, H
Connector: DIN43650A Coil Hole Diameter: 16mm
High Light:

Water Solenoid Valve Coil 24V

,

Water Solenoid Valve Coil 220V

,

Water Solenoid Valve Coil 110V

AB410 Water Solenoid Valve Coil 12V 24V DC 110V 220V AC 26VA 18W



This solenoid coil is popularly used in water solenoid valves, like 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2S040-10, 2S160-15, 2S200-20, 2S250-25. Voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC, Power: 26VA, 18W. Solenoid valves consist of a coil, plunger and sleeve assembly. Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.



Dimension & Data of Water Solenoid Valve Coil, Armature:

ab410 dimension

BRANDO Model
BB16039001
Voltage

12VDC, 24VDC,

24VAC, 110VAC, 220VAC

Power
26VA, 18W
Other voltage and power can be customized
Insulation Class
F, H
Connector
DIN43650A





ab410 armature dimension

BRANDO Model
BAPC216038501
2 Way or 3 Way
2 Way
NC or NO
NC
Plunger Tube Material
Stainless Steel
Moving Core Material
430FR
Shading Ring Material
Copper
Seal Material
NBR, EPDM, FKM
Mounting Type
Thread
